ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

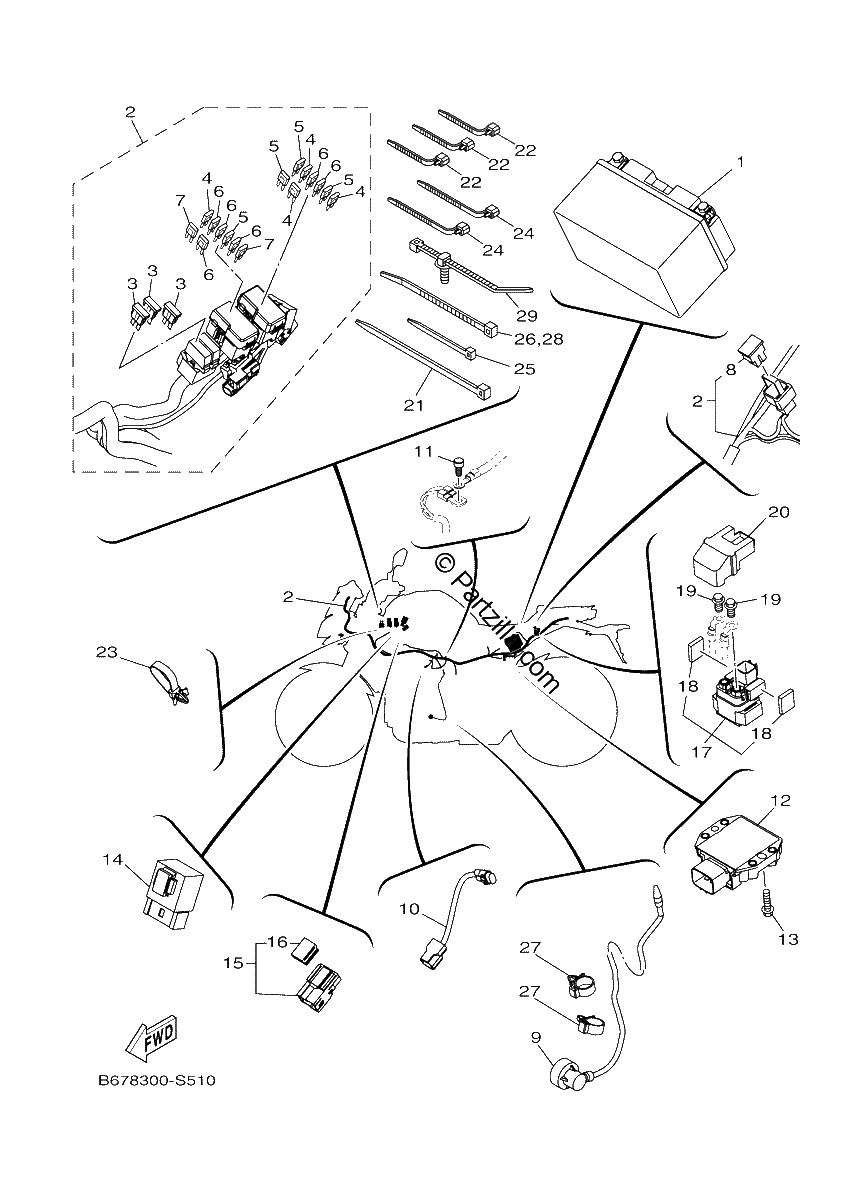

Diagrama de ELECTRICAL 2

Repuestos

#1
5VY-82100-00-00
BATTERY ASSY (YUASA YTZ10S)
$235.21¢117 606
1
#2
B67-82590-51-00
WIRE HARNESS ASSY
$1326.24¢663 119
1
#3
1MC-82151-00-00
FUSE (1A-BL)
$3.89¢1 944
1
#4
5JJ-82151-10-00
. FUSE (15A-BL)
$4.44¢2 219
1
#5
5JJ-82151-30-00
. FUSE (10A-BL)
$8.24¢4 119
1
#6
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#7
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#8
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#9
B3L-82509-11-00
WIRE, SUB LEAD
$15.26¢7 631
1
#10
B67-82309-00-00
WIRE, SUB LEAD
$18.10¢9 050
1
#11
91312-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#12
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$178.46¢89 231
1
#13
95027-06020-00
BOLT, FLANGE
$1.23¢613
1
#14
5VK-81950-41-00
RELAY ASSY (replaces 5VK-81950-40-00)
$70.70¢35 350
1
#15
1ST-81950-00-00
RELAY ASSY (1ST-00)
$17.80¢8 900
1
#16
5JJ-81952-00-00
HOLDER, RELAY
$9.46¢4 731
1
#17
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$68.09¢34 044
1
#18
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#19
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#20
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#21
90464-15152-00
CLAMP
$5.19¢2 594
1
#22
90464-13077-00
CLAMP
$7.94¢3 969
1
#23
90464-12036-00
Clamp
$7.35¢3 675
1
#24
90464-13073-00
Clamp
$3.30¢1 650
1
#25
90464-16061-00
BAND
$8.35¢4 175
1
#26
1UA-82591-00-00
BAND
$4.91¢2 456
1
#27
90464-16006-00
CLAMP
$9.91¢4 956
1
#28
1UA-82591-00-00
BAND
$4.91¢2 456
1
#29
5RU-12491-00-00
CLAMP 1
$3.13¢1 563
1
