FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

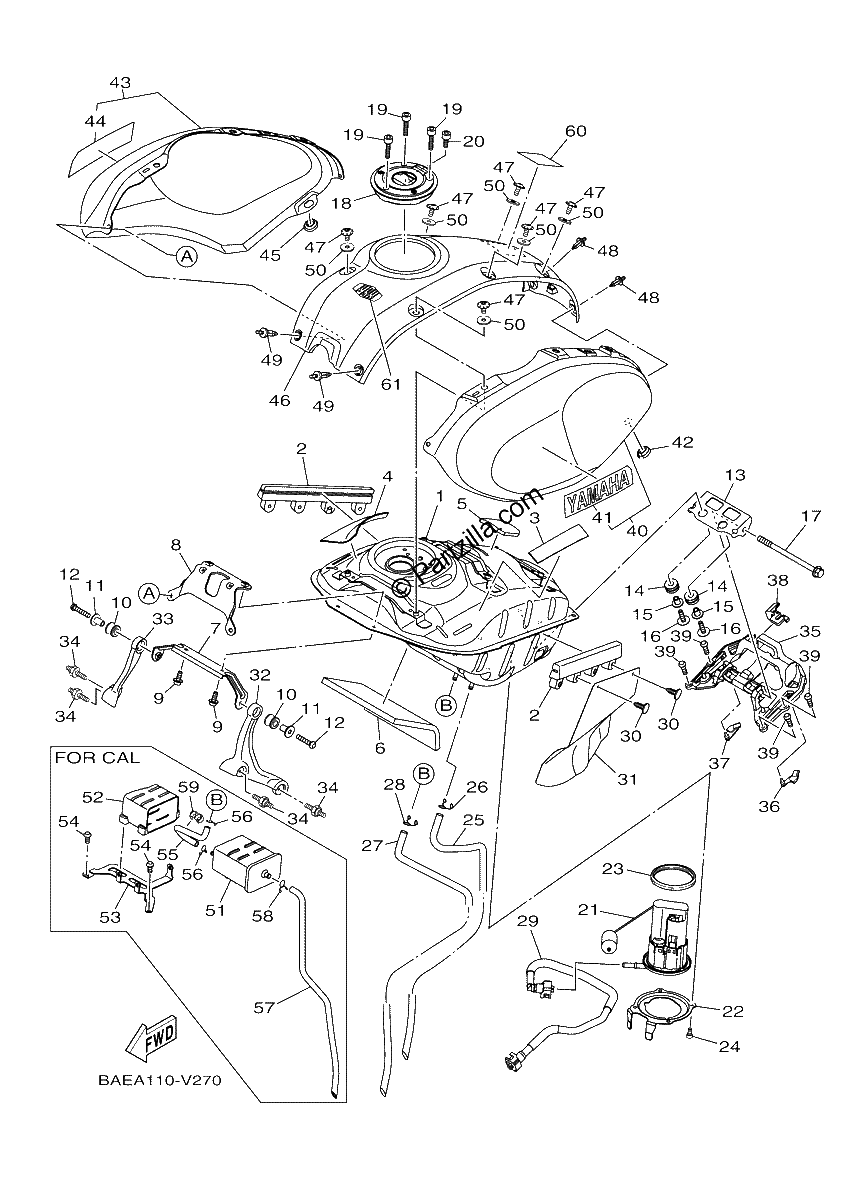

Diagrama de FUEL TANK

Repuestos

#1
B90-24110-01-00
FUEL TANK COMP.
$501.35¢250 675
1
#2
B90-24121-00-00
SEAT, KNEE GRIP 1
$50.15¢25 075
1
#3
90520-02013-00
DAMPER, PLATE
$2.14¢1 069
1
#4
B90-2414K-00-00
DAMPER, PLATE 3
$4.86¢2 431
1
#5
B90-2414N-00-00
DAMPER, PLATE 4
$5.06¢2 531
1
#6
90520-10029-00
DAMPER, PLATE
$4.71¢2 356
1
#7
B90-2412Y-01-00
BRACKET, TANK FITTING
$18.38¢9 188
1
#8
B90-24145-00-00
DAMPER, SIDE COVER
$28.10¢14 050
1
#9
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#10
90480-18008-00
GROMMET
$3.79¢1 894
1
#11
90387-06266-00
COLLAR
$4.68¢2 338
1
#12
92012-06030-00
BOLT, BUTTON HEAD
$3.36¢1 681
1
#13
B90-24191-00-00
BRACKET, FUEL TANK 1
$16.10¢8 050
1
#14
90480-16003-00
GROMMET
$10.02¢5 012
1
#15
90387-06287-00
COLLAR
$10.32¢5 163
1
#16
90111-06084-00
BOLT, HEX. SOCKET BUTTON
$5.86¢2 931
1
#17
95827-08120-00
BOLT, FLANGE
$4.56¢2 281
1
#18
1WS-24602-00-00
CAP ASSY
$363.34¢181 669
1
#19
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#20
91312-05010-00
BOLT
$5.86¢2 931
1
#21
1RC-13907-01-00
FUEL PUMP COMP.
$463.40¢231 700
1
#22
B90-24491-01-00
Bracket, Fuel Pump
$39.59¢19 794
1
#23
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#24
91312-05010-00
BOLT
$5.86¢2 931
1
#25
1RC-24315-00-00
PIPE 5
$15.65¢7 825
1
#26
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#29
B90-13971-01-00
PIPE, FUEL 1
$74.09¢37 044
1
#30
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#31
B90-24217-00-00
COVER
$43.92¢21 963
1
#32
B90-2411F-00-00
PLATE, FITTING
$160.26¢80 131
1
#33
B90-2411L-00-00
HOOK TANK FITTING
$166.08¢83 038
1
#34
90109-06309-00
BOLT
$7.50¢3 750
1
#35
B90-2413Y-00-00
BRACKET, TANK FITTING
$89.74¢44 869
1
#36
B90-24665-00-00
DAMPER
$14.13¢7 063
1
#37
B90-2466M-00-00
DAMPER
$13.54¢6 769
1
#38
B90-24742-00-00
GROMMET
$9.28¢4 638
1
#39
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#40
B90-Y24HA-10-03
COVER, TANK SIDE 1 ASSY
$818.74¢409 369
1
#41
99224-00140-00
. EMBLEM, YAMAHA
$38.34¢19 169
1
#42
90480-01558-00
Grommet
$4.69¢2 344
1
#43
B90-Y24JA-10-03
COVER, TANK SIDE 2 ASSY
$679.99¢339 994
1
#44
99224-00140-00
. EMBLEM, YAMAHA
$38.34¢19 169
1
#45
90480-01558-00
Grommet
$4.69¢2 344
1
#46
B90-241B1-00-P3
COVER, TANK
$398.96¢199 481
1
#47
90109-06311-00
BOLT
$3.65¢1 825
1
#48
90269-06008-00
RIVET
$8.80¢4 400
1
#49
90269-07001-00
RIVET
$1.82¢913
1
#50
90201-06M94-00
WASHER, PLATE
$6.35¢3 175
1
#51
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$377.02¢188 513
1
#52
B90-24183-00-00
DAMPER, LOCATING 3 | FOR CAL
$26.91¢13 456
1
#53
B90-2419F-00-00
BRACKET, CANISTOR | FOR CAL
$15.18¢7 588
1
#54
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#55
B90-24313-10-00
PIPE 3 | FOR CAL
$29.53¢14 763
1
#56
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#57
B90-24321-00-00
PIPE 10 | FOR CAL
$14.78¢7 388
1
#58
90467-10041-00
Clip
$7.60¢3 800
1
#59
90464-09M31-00
CLAMP
$7.36¢3 681
1
#60
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
#61
B90-2416B-01-00
EMBLEM
$46.08¢23 038
1
