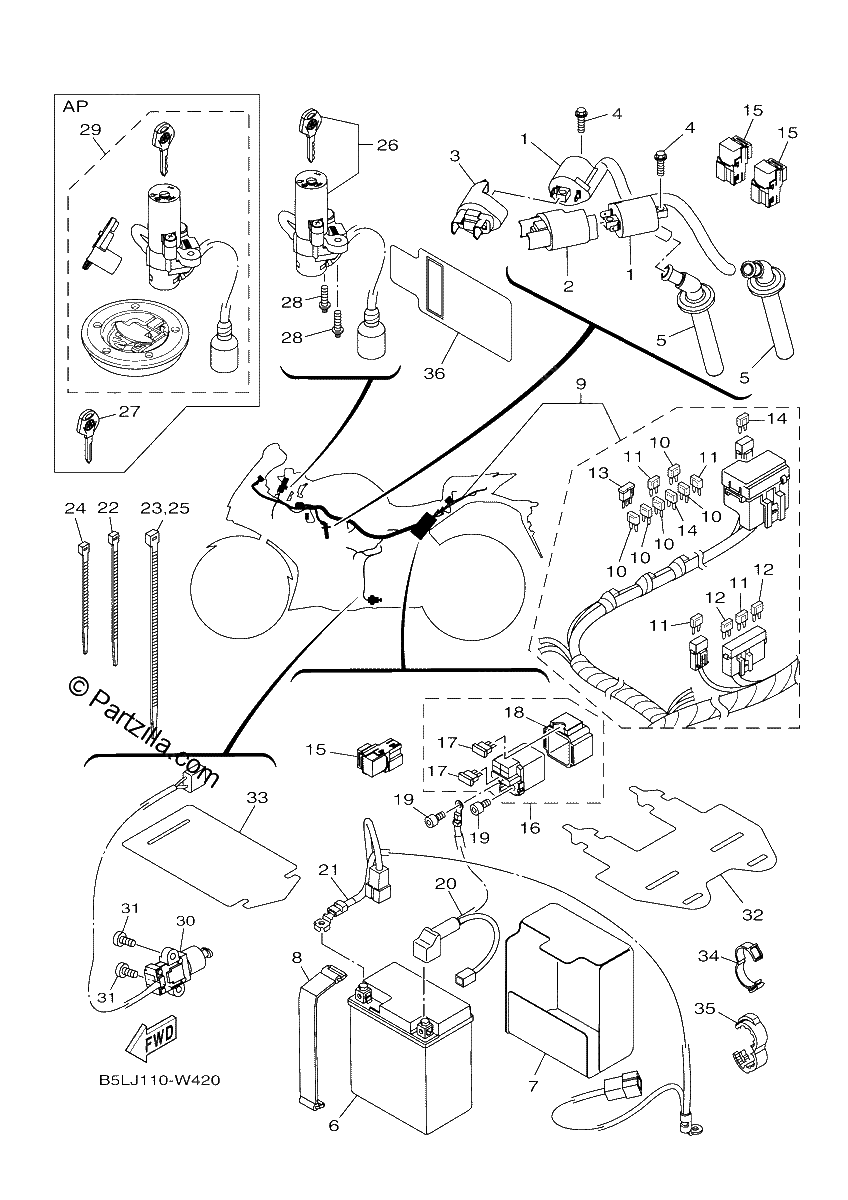

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
IGNITION COIL ASSY
$25.51¢12 753
#2
COVER, IGNITION COIL
$11.26¢5 629
#3
COVER, IGNITION COIL
$11.26¢5 629
#4
BOLT, FLANGE
$3.65¢1 823
#5
PLUG CAP ASSY
$45.23¢22 615
#6
BATTERY ASSY (GS GTZ8V)
$104.40¢52 198
#7
PAD, BATTERY
$11.26¢5 629
#8
BAND, BATTERY
$8.57¢4 284
#9
WIRE HARNESS ASSY
$548.54¢274 269
#10
FUSE (7.5A BL)
No Disponible
#11
FUSE (15A-BL)
$11.26¢5 629
#12
Fuse
$2.91¢1 455
#13
DIODE ASSY
$38.59¢19 297
#14
FUSE (2A)
$0.84¢420
#15
RELAY ASSY
$52.92¢26 462
#16
STARTER RELAY ASSY
$33.05¢16 525
#17
FUSE (30A-BL) (replaces 1WD-H2151-00-00)
$0.77¢385
#18
BAND
$2.23¢1 116
#19
BOLT
$5.69¢2 846
#20
WIRE, plus lead
$17.05¢8 527
#21
WIRE, MINUS LEAD (B085)
$32.67¢16 336
#22
CLAMP
$4.52¢2 260
#23
CLAMP
$0.98¢489
#24
CLAMP
$0.60¢299
#25
CLAMP
$0.98¢489
#26
MAIN SWITCH STEERING LOCK
$118.97¢59 484
#27
BLANK KEY | AP
$16.95¢8 476
#28
BOLT
$3.73¢1 863
#29
MAIN SW. STRG. LOCK SUB ASSY
$174.88¢87 440
#30
SWITCH, SIDE STAND
$40.25¢20 125
#31
BOLT, HEXAGON SOCKET HEAD
$1.18¢592
#32
BAND
$5.78¢2 892
#33
BAND
$2.78¢1 392
#34
Clamp
$1.70¢851
#35
Clamp
$1.82¢909
#36
PROTECTER, WIRE HARNESS
$10.63¢5 313
