FENDER

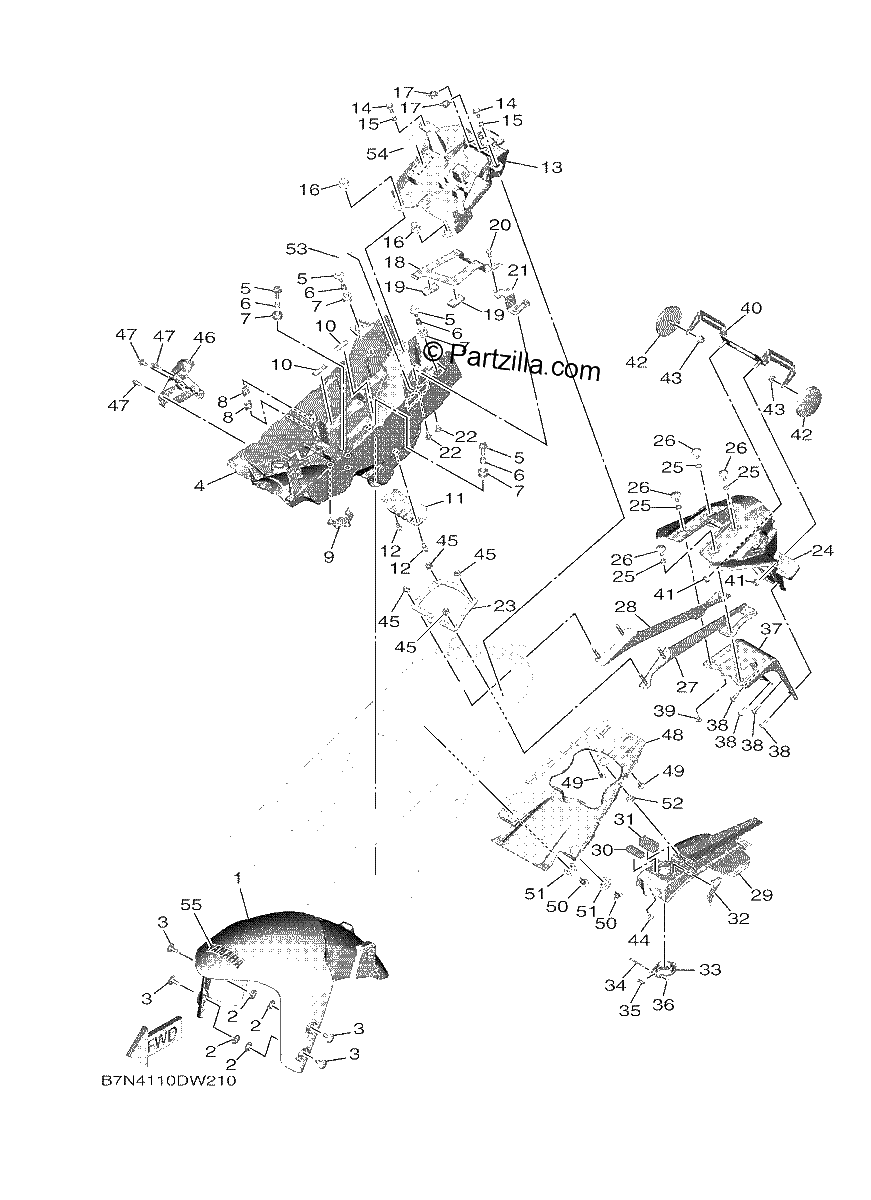

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C)
$104.95¢52 475
#2
COLLAR
$6.75¢3 375
#3
BOLT,HEX. SOCKET BUTTON
$0.99¢494
#4
BOX, BATTERY 1
$27.93¢13 967
#5
BOLT, WITH WASHER
$1.08¢541
#6
COLLAR
$11.52¢5 761
#7
GROMMET
$1.49¢747
#8
NUT, SPRING
$6.68¢3 341
#9
COVER
$7.35¢3 674
#10
DAMPER
$2.27¢1 133
#11
LID
$5.11¢2 553
#12
RIVET
$2.05¢1 023
#13
BOX
$10.82¢5 411
#14
BOLT, FLANGE DEEP RECESS
$0.44¢218
#15
COLLAR
$8.69¢4 347
#16
RIVET,SPEC'L SHAPE
$6.55¢3 278
#17
NUT, SPRING
$6.68¢3 341
#18
BAND, BATTERY
$29.06¢14 530
#19
DAMPER, PLATE
$0.94¢471
#20
BOLT, BUTTON HEAD
$2.74¢1 368
#21
BRACKET, REAR STAY
$14.43¢7 216
#22
BOLT,HEX. SOCKET BUTTON
$1.74¢868
#23
BRACKET, REAR FENDER
$13.59¢6 797
#24
GUARD, MUD
$20.18¢10 091
#25
COLLAR
$5.93¢2 967
#26
BOLT,HEX. SOCKET BUTTON
$1.66¢828
#27
STAY 1
$51.04¢25 519
#28
STAY 2
$54.02¢27 008
#29
COVER, REAR FENDER 2
$12.88¢6 440
#30
DAMPER
$3.43¢1 713
#31
DAMPER
$7.23¢3 617
#32
BAND
$4.15¢2 076
#33
CAP, ROTOR
$4.57¢2 283
#34
PIN
$4.94¢2 472
#35
SPRING, TORSION
$2.05¢1 023
#36
CIRCLIP
$7.31¢3 657
#37
STAY, PLATE
$40.19¢20 096
#38
SCREW, ROUND TAPPING
$6.87¢3 433
#39
RIVET
$7.67¢3 835
#40
BRACKET, LICENSE
$32.10¢16 048
#41
NUT, U
$2.63¢1 317
#42
REFLECTOR, REAR 1
$28.22¢14 110
#43
NUT, FLANGE
$6.76¢3 381
#44
RIVET
$7.67¢3 835
#45
NUT, SELF-LOCKING
$2.58¢1 288
#46
COVER, REAR FENDER 1
$7.10¢3 548
#47
RIVET
$5.93¢2 967
#48
COVER, REAR FENDER
$10.33¢5 164
#49
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#50
BOLT
$1.87¢937
#51
Grommet
$5.27¢2 633
#52
GROMMET
$6.88¢3 439
#53
LABEL, CAUTION
$4.54¢2 271
#54
LABEL, CAUTION
$4.90¢2 449
#55
EMBLEM, YAMAHA | UR FOR DPBMC
$6.51¢3 254
