CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

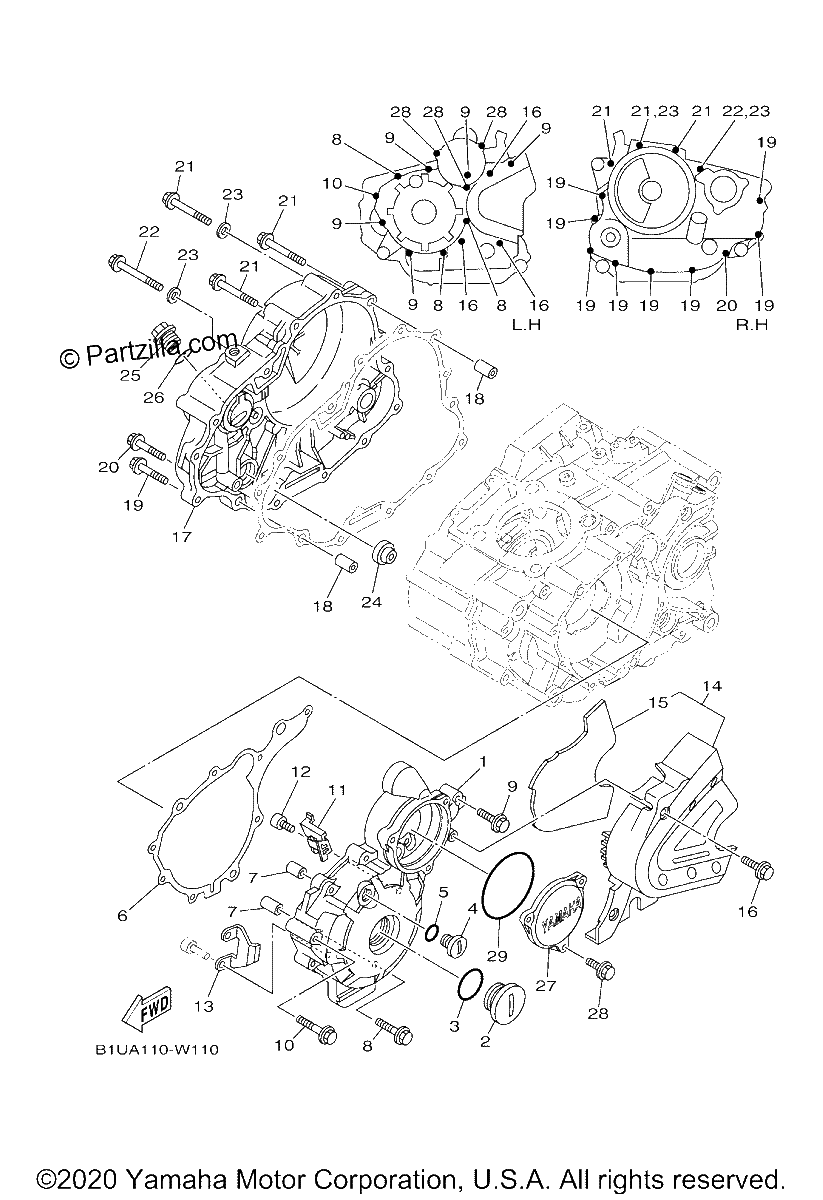

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5XT-15411-02-00
COVER, CRANKCASE 1
$168.35¢84 174
1
#2
90340-32069-00
PLUG,STRAIGHT SCRW
$28.49¢14 243
1
#3
93210-32172-00
O-Ring
$6.32¢3 162
1
#4
90340-14151-00
PLUG,STRAIGHT SCRW
$15.55¢7 774
1
#5
93210-14369-00
O-Ring
$6.36¢3 180
1
#6
4D3-15451-00-00
GASKET, CRANKCASE CO
$14.34¢7 170
1
#7
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#8
95024-06040-00
Bolt, Flange
$7.82¢3 910
1
#9
95024-06030-00
BOLT,FLANGE
$6.75¢3 375
1
#10
95024-06045-00
BOLT, FLANGE (SMALL HEAD)
$7.56¢3 778
1
#11
90465-16011-00
Clamp
$4.29¢2 145
1
#12
91312-05012-00
BOLT (replaces 90110-05032-00)
$2.78¢1 392
1
#13
5XT-15113-00-00
PLATE
$14.25¢7 124
1
#14
5XT-15430-00-00
CRANKCASE COVER ASSY
$90.22¢45 109
1
#15
5XT-15316-00-00
DAMPER, ENGINE MOUNT
$16.50¢8 251
1
#16
95024-06016-00
BOLT, WASHER BASED
$7.30¢3 651
1
#17
5XT-15421-02-00
COVER, CRANKCASE 2
$160.01¢80 005
1
#18
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#19
95024-06025-00
Bolt, Flange
$2.82¢1 409
1
#20
95024-06035-00
BOLT,FLANGE(4BH)
$7.56¢3 778
1
#21
95024-06050-00
Bolt, Flange
$7.58¢3 789
1
#22
95024-06055-00
BOLT, FLANGE (SMALL HEAD)
$5.37¢2 685
1
#23
90430-06014-00
GASKET
$7.59¢3 795
1
#24
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#25
90340-20002-00
PLUG, STRAIGHT SCREW
$18.52¢9 258
1
#26
93210-19123-00
O-Ring
$7.58¢3 789
1
#27
5XT-15415-00-00
COVER, GENERATOR
$47.56¢23 782
1
#28
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#29
93210-74M68-00
O-Ring
$7.88¢3 939
1
