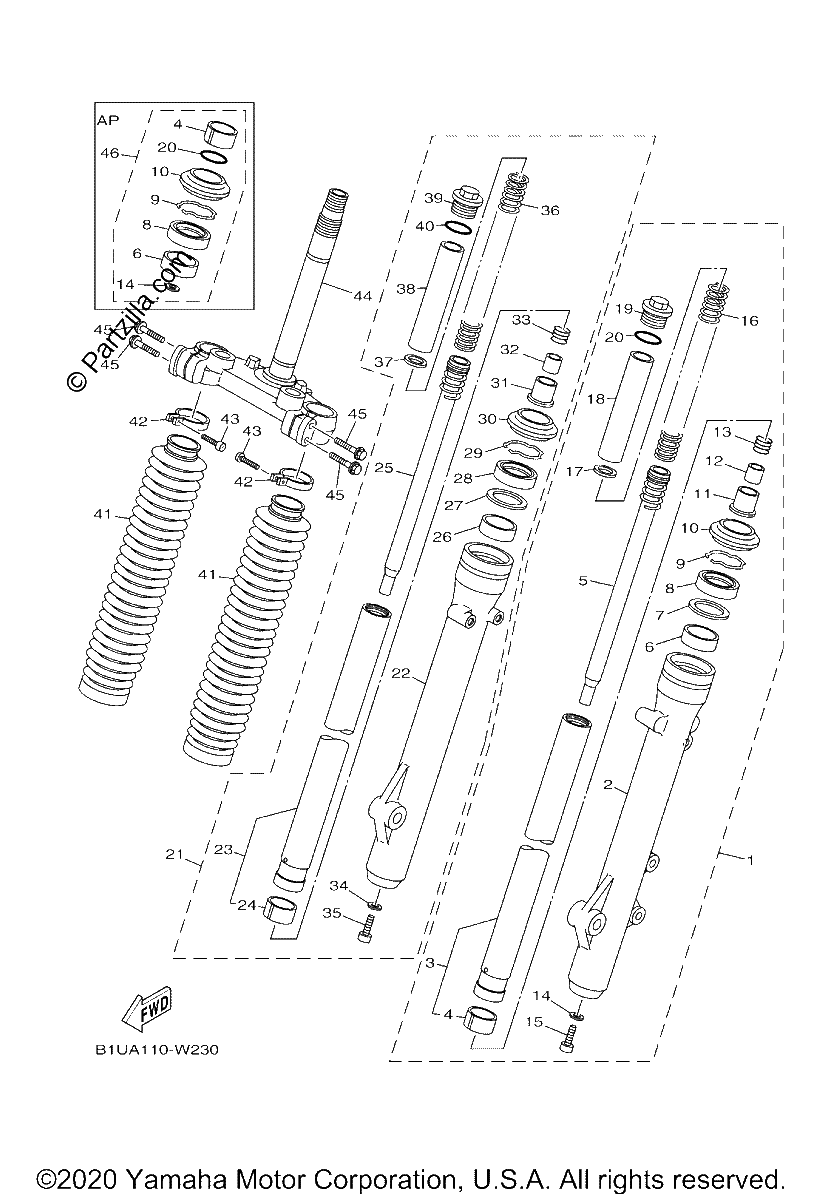

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$661.24¢330 619
#2
TUBE, OUTER (L.H)
$345.11¢172 556
#3
INNER TUBE COMP. 1
$316.55¢158 275
#4
PISTON, FRONT FORK
$24.59¢12 294
#5
CYLINDER COMP., FRONT FORK
$117.91¢58 956
#6
METAL, SLIDE 1
$20.80¢10 400
#7
WASHER, SPRING UPPER
$9.13¢4 563
#8
OIL SEAL
$15.59¢7 794
#9
RING, SNAP
$5.66¢2 831
#10
SEAL, DUST
$17.01¢8 506
#11
SPINDLE, TAPER
$40.34¢20 169
#12
COLLAR 1
$8.89¢4 444
#13
SPRING, REBOUND
$6.70¢3 350
#14
GASKET
$7.72¢3 863
#15
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#16
SPRING, FRONT FORK
$47.67¢23 838
#17
WASHER, SPRING UPPER
$8.03¢4 013
#18
SPACER
$12.98¢6 488
#19
BOLT, CAP
$42.44¢21 219
#20
GASKET
$14.65¢7 325
#21
FRONT FORK ASSY (R.H)
$954.16¢477 081
#22
TUBE, OUTER
$348.24¢174 119
#23
INNER TUBE COMP. 1
$316.55¢158 275
#24
PISTON, FRONT FORK
$24.59¢12 294
#25
CYLINDER COMP., FRONT FORK
$117.91¢58 956
#26
METAL, SLIDE 1
$20.80¢10 400
#27
WASHER, SPRING UPPER
$9.13¢4 563
#28
OIL SEAL
$15.59¢7 794
#29
RING, SNAP
$5.66¢2 831
#30
SEAL, DUST
$17.01¢8 506
#31
SPINDLE, TAPER
$40.34¢20 169
#32
COLLAR 1
$8.89¢4 444
#33
SPRING, REBOUND
$6.70¢3 350
#34
GASKET
$7.72¢3 863
#35
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#36
SPRING, FRONT FORK
$47.67¢23 838
#37
WASHER, SPRING UPPER
$8.03¢4 013
#38
SPACER
$12.98¢6 488
#39
BOLT, CAP
$42.44¢21 219
#40
GASKET
$14.65¢7 325
#41
BOOT
$73.76¢36 881
#42
BAND
$17.95¢8 975
#43
SCREW, PAN HEAD
$1.46¢731
#44
UNDER BRACKET COMP.
$535.10¢267 550
#45
BOLT 1
$7.91¢3 956
#46
FORK SEALS KIT
$62.67¢31 338
