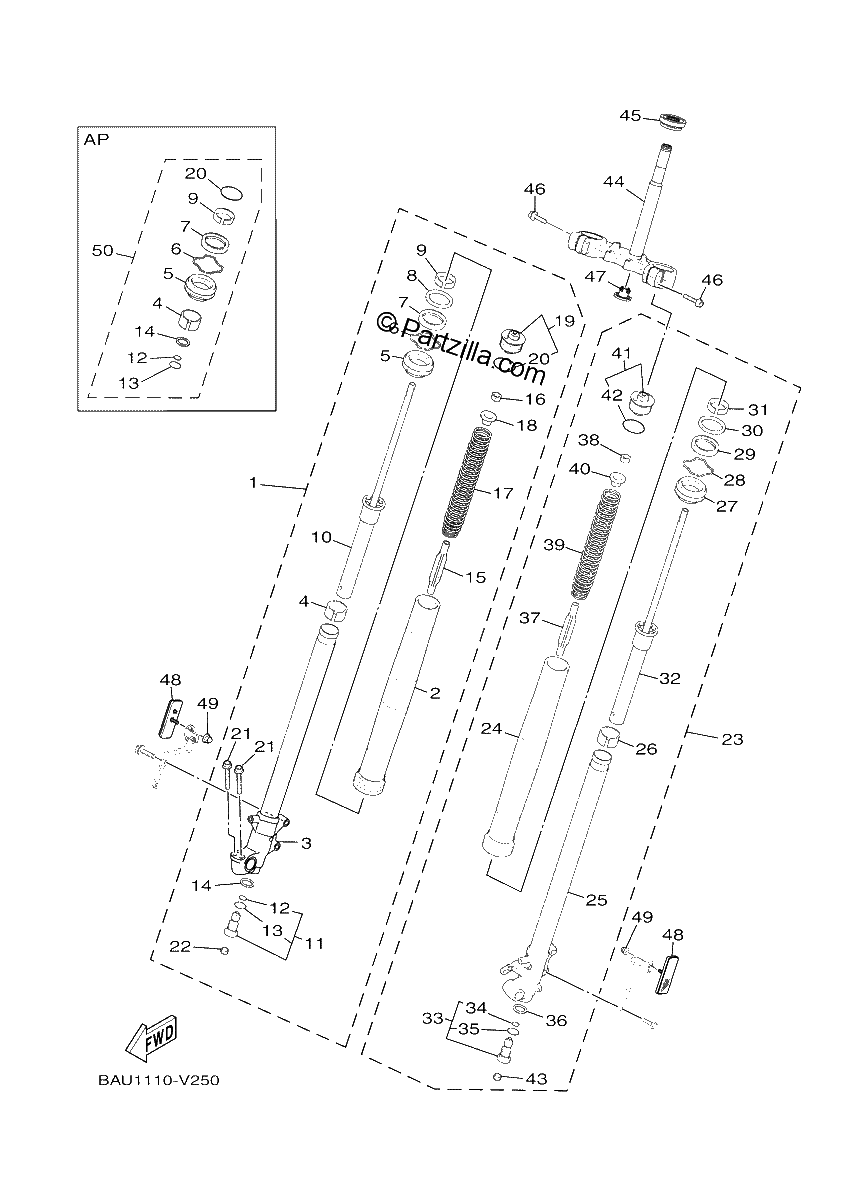

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$785.44¢392 719
#2
. .TUBE, OUTER (L.H)
$645.32¢322 661
#3
. .INNER TUBE COMP.2
$442.27¢221 133
#4
PISTON, FRONT FORK
$31.68¢15 841
#5
SEAL, DUST
$22.10¢11 051
#6
RING, SNAP | (KYB)
$9.49¢4 744
#7
OIL SEAL
$22.99¢11 494
#8
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#9
METAL, SLIDE 1
$10.48¢5 238
#10
. .CYLINDER COMP., FRONT FORK
$443.93¢221 967
#11
. .VALVE ASSY
$219.59¢109 796
#12
. . ..O-RING
$6.66¢3 329
#13
. . ..GASKET
$4.25¢2 128
#14
GASKET
$10.43¢5 215
#15
GUIDE, SPRING
$48.23¢24 115
#16
NUT
$0.83¢414
#17
. .SPRING, FRONT FORK
$45.84¢22 920
#18
. .GUIDE, SPRING
$10.48¢5 238
#19
. .BOLT, CAP
$235.27¢117 634
#20
. . ..O-RING
$4.13¢2 064
#21
BOLT, FLANGE
$6.43¢3 214
#22
PLUG
$6.51¢3 254
#23
FRONT FORK ASSY (L.H)
$750.94¢375 469
#24
. .TUBE, OUTER (L.H)
$645.32¢322 661
#25
. .INNER TUBE COMP.1
$442.27¢221 133
#26
PISTON, FRONT FORK
$31.68¢15 841
#27
SEAL, DUST
$22.10¢11 051
#28
RING, SNAP | (KYB)
$9.49¢4 744
#29
OIL SEAL
$22.99¢11 494
#30
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#31
METAL, SLIDE 1
$10.48¢5 238
#32
. .CYLINDER COMP., FRONT FORK
$443.93¢221 967
#33
. .VALVE ASSY
$219.59¢109 796
#34
. . ..O-RING
$6.66¢3 329
#35
. . ..GASKET
$4.25¢2 128
#36
GASKET
$10.43¢5 215
#37
GUIDE, SPRING
$48.23¢24 115
#38
NUT
$0.83¢414
#39
. .SPRING, FRONT FORK
$45.84¢22 920
#40
. .GUIDE, SPRING
$10.48¢5 238
#41
. .BOLT, CAP
$235.27¢117 634
#42
. . ..O-RING
$4.13¢2 064
#43
PLUG
$6.51¢3 254
#44
UNDER BRACKET COMP.
$625.86¢312 932
#45
BEARING
$66.85¢33 425
#46
BOLT, FLANGE
$6.43¢3 214
#47
COVER, UNDER 1
$13.48¢6 739
#48
REFLECTOR ASSY
$22.93¢11 466
#49
NUT, CROWN
$1.46¢730
#50
FORK SEALS KIT
$73.59¢36 794
