CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

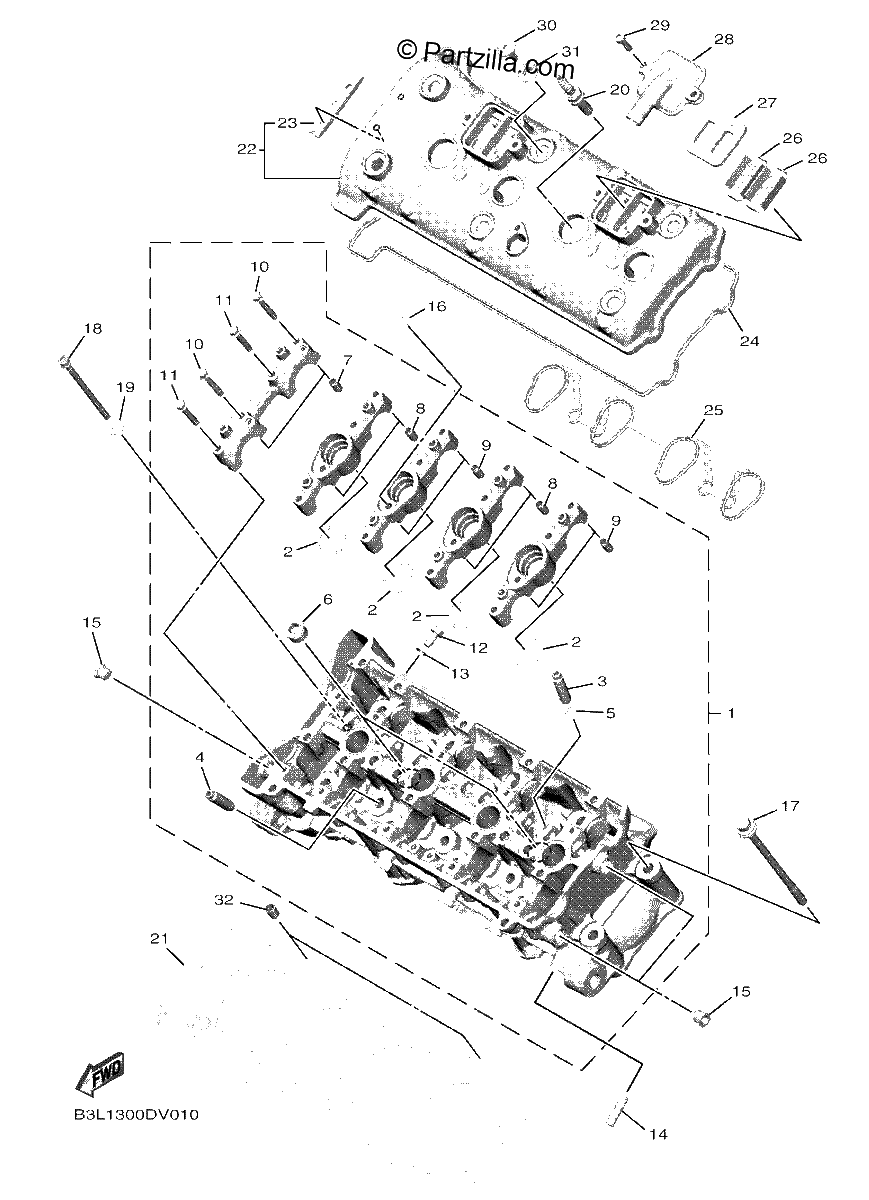

Diagrama de CYLINDER HEAD

Repuestos

#1
B3L-W1101-09-00
Cylinder Head Assy
$2372.44¢1 186 219
1
#2
93210-26658-00
O-RING
$6.32¢3 162
1
#3
2CR-11133-10-00
GUIDE, VALVE 1
$81.78¢40 888
1
#4
2CR-11134-10-00
GUIDE, VALVE 2
$81.78¢40 888
1
#5
93440-10153-00
CIRCLIP
$1.83¢914
1
#6
90340-18004-00
PLUG, STRAIGHT SCREW
$16.08¢8 038
1
#7
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#8
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#9
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#10
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#11
90105-06209-00
BOLT, FLANGE
$1.13¢564
1
#12
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#13
90430-06014-00
GASKET
$7.59¢3 795
1
#14
95612-08615-00
BOLT, STUD
$1.82¢909
1
#15
90340-12013-00
PLUG, STRAIGHT SCREW
$7.53¢3 766
1
#16
90430-06166-00
GASKET
$3.78¢1 892
1
#17
90119-09016-00
BOLT, WITH WASHER
$13.48¢6 739
1
#18
90110-06430-00
BOLT, HEXAGON SOCKET HEAD
$6.23¢3 117
1
#19
90201-06016-00
WASHER, plate
$4.20¢2 099
1
#20
LMA-R9EJ0-00-00
LMAR9EJ NGK SPLUG
$13.97¢6 986
1
#21
B3L-11181-00-00
GASKET, CYLINDER HEAD 1
$54.81¢27 404
1
#22
BX4-11191-01-00
COVER, CYLINDER HEAD 1
$183.26¢91 632
1
#23
5BE-12241-01-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#24
2CR-11193-00-00
GASKET, HEAD COVER 1
$22.30¢11 149
1
#25
2CR-11194-00-00
GASKET, HEAD COVER 2
$13.08¢6 538
1
#26
5VY-1482K-00-00
PLATE
$4.28¢2 139
1
#27
5SL-14890-00-00
REED VALVE ASSY
$94.82¢47 409
1
#28
14B-14899-01-00
CAP, CASE
$30.85¢15 427
1
#29
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#30
90109-066F0-00
BOLT
$6.99¢3 496
1
#31
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#32
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
