REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

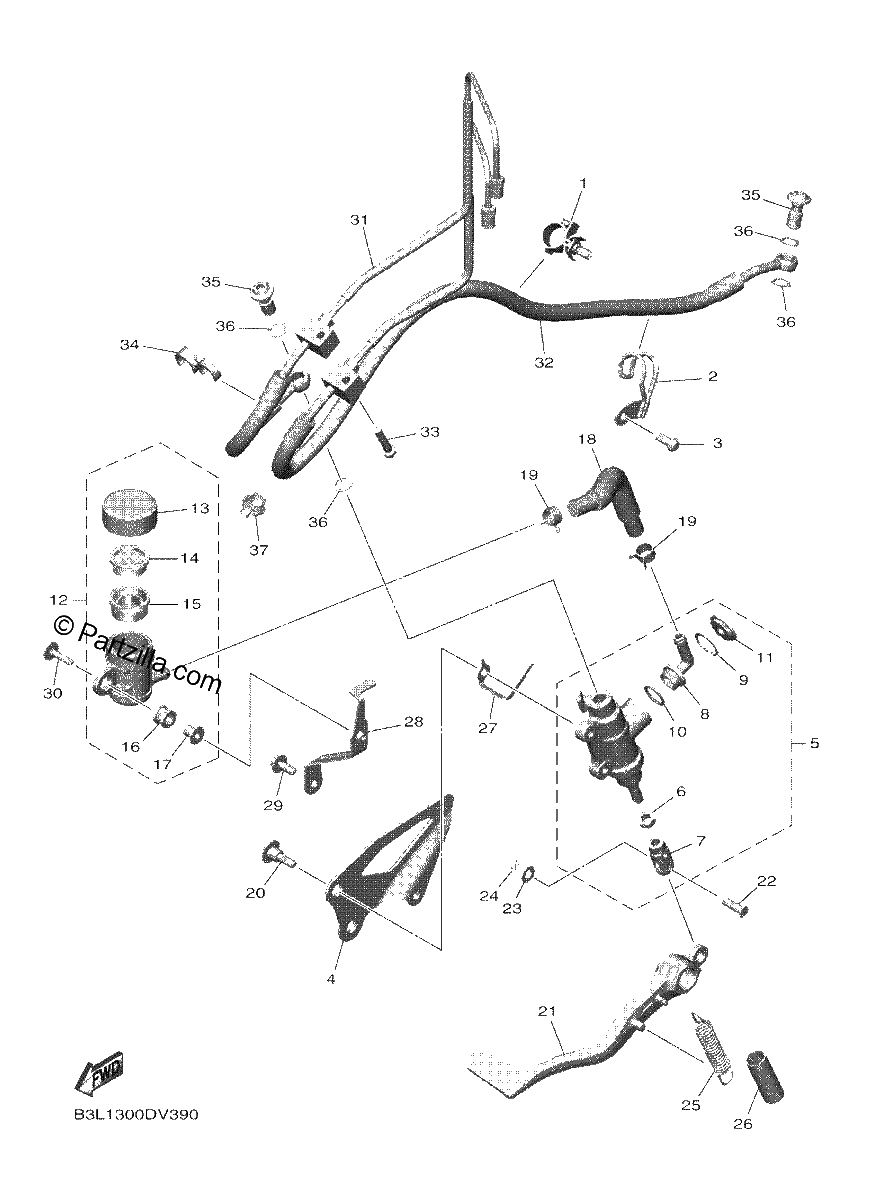

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
90464-16012-00
Clamp
$5.93¢2 967
1
#2
2CR-2588F-00-00
HOLDER, BRAKE HOSE 5
$13.88¢6 940
1
#3
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#4
2CR-27446-00-00
PLATE 2
$36.33¢18 164
1
#5
2CR-2583V-00-00
REAR MASTER CYLINDER ASSY.
$275.26¢137 632
1
#6
95307-08700-00
. Nut
$7.72¢3 858
1
#7
4XV-27222-01-00
JOINT
$42.70¢21 350
1
#8
4ML-2582A-50-00
JOINT
$13.39¢6 693
1
#9
2VN-25866-00-00
CIRCLIP
$6.51¢3 254
1
#10
93210-15620-00
. O-Ring
$6.32¢3 162
1
#11
3FV-2589A-00-00
COVER, DUST
$19.34¢9 672
1
#12
2CR-25804-50-00
RESERVE TANK ASSY
$56.21¢28 106
1
#13
2CR-25852-50-00
CAP, RESERVOIR
$2.60¢1 299
1
#14
3GK-25855-50-00
BUSH, DIAPHRAGM
$4.19¢2 093
1
#15
3GK-25854-50-00
DIAPHRAGM, RESERVOIR
$10.48¢5 238
1
#16
2C0-26326-00-00
GROMMET
$5.91¢2 956
1
#17
90387-05028-00
COLLAR
$6.39¢3 197
1
#18
2CR-25895-50-00
HOSE, RESERVOIR
$19.78¢9 890
1
#19
90467-12085-00
CLIP
$7.99¢3 996
1
#20
90109-066F0-00
BOLT
$6.99¢3 496
1
#21
2CR-27211-00-00
PEDAL, BRAKE
$101.14¢50 571
1
#22
91702-06018-00
Pin, Clevis
$4.91¢2 455
1
#23
92907-06200-00
WASHER
$6.76¢3 381
1
#24
91402-16012-00
PIN, COTTER
$6.74¢3 370
1
#25
90506-20193-00
SPRING, TENSION
$13.21¢6 607
1
#26
90446-15386-00
HOSE
$6.36¢3 180
1
#27
2CR-27131-00-00
TUBE, STAY 1
$3.47¢1 737
1
#28
2CR-21228-00-00
BRACKET, RESERVE TANK
$14.67¢7 337
1
#29
90110-06429-00
BOLT, HEXAGON SOCKET HEAD
$3.93¢1 967
1
#30
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#31
B3L-2581J-00-00
HOSE, BRAKE 4
$96.90¢48 450
1
#32
B3L-2581K-00-00
HOSE, BRAKE 5
$122.75¢61 375
1
#33
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#34
90464-13M34-00
CLAMP
$1.68¢839
1
#35
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#36
90430-10005-00
GASKET
$7.72¢3 858
1
#37
90464-12013-00
Clamp
$7.21¢3 605
1
