COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

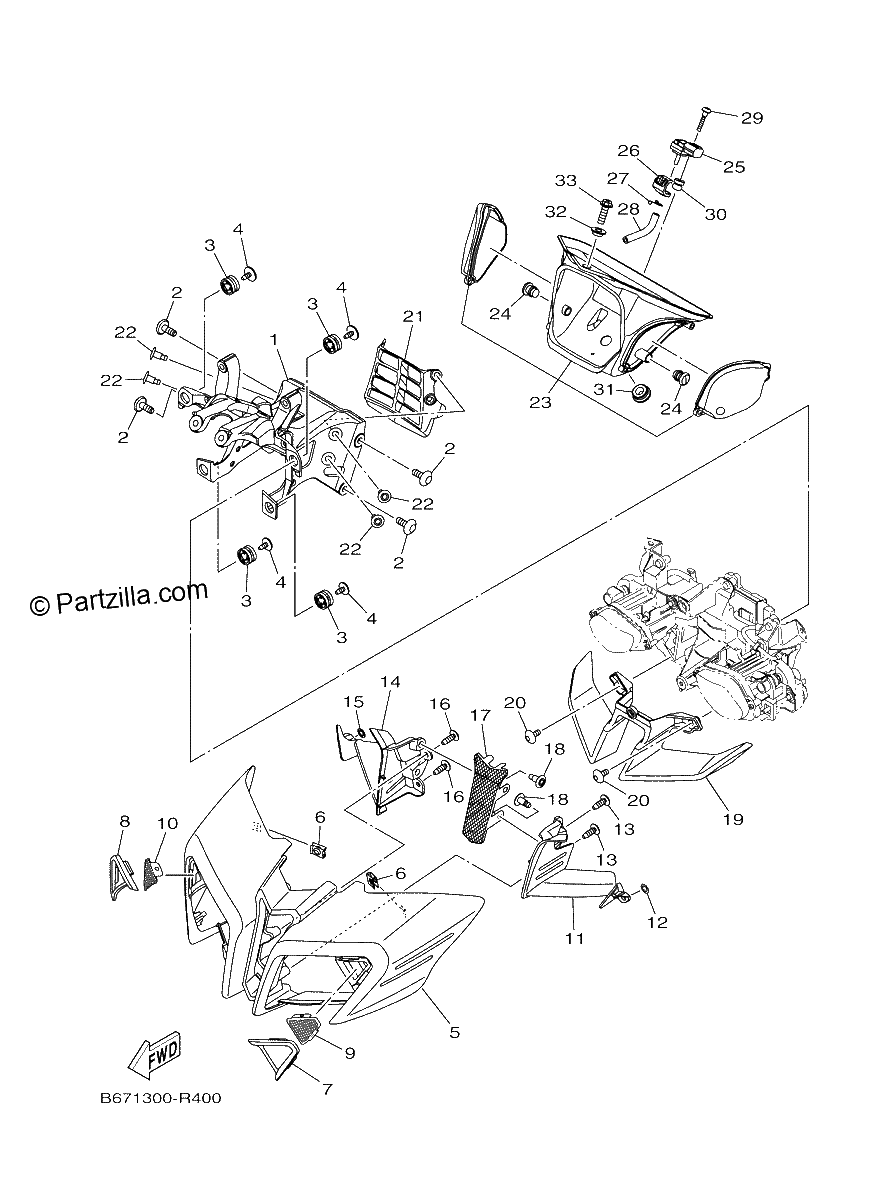

Diagrama de COWLING 1

Repuestos

#1
B67-28356-00-00
STAY 1
$509.75¢254 875
1
#2
90111-06071-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#3
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#4
90164-05001-00
SCREW, TAPPING
$7.48¢3 738
1
#5
B67-2838D-00-P1
COVER, HEADLIGHT 1
$327.80¢163 900
1
#6
90183-05042-00
NUT, SPRING
$1.25¢625
1
#7
B67-28396-00-00
PLATE 1
$8.58¢4 288
1
#8
B67-28397-00-00
PLATE 2
$8.58¢4 288
1
#9
B67-28497-00-00
PLATE 3
$17.71¢8 856
1
#10
B67-2846H-00-00
PLATE,4
$17.71¢8 856
1
#11
B67-2836K-00-00
PANEL, INNER 1
$12.09¢6 044
1
#12
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#13
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#14
B67-2836L-00-00
PANEL, INNER 2
$13.19¢6 594
1
#15
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#16
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#17
B67-2837T-00-00
GRILL, AIR INTAKE 3
$35.25¢17 625
1
#18
90269-06019-00
RIVET
$3.46¢1 731
1
#19
B67-28361-00-P0
PLATE, FRONT
$140.66¢70 331
1
#19
B67-28361-00-P6
PLATE, FRONT (DEEP PURPLISH BLUE METALLIC C)
$110.19¢55 094
1
#20
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#21
B67-2838R-00-00
DUCT 2
$17.82¢8 913
1
#22
90269-06019-00
RIVET
$3.46¢1 731
1
#23
B67-2838U-00-00
DUCT 4
$21.99¢10 994
1
#24
90338-08009-00
PLUG
$8.34¢4 169
1
#25
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
#26
2CR-28372-00-00
DAMPER
$4.46¢2 231
1
#27
90467-08021-00
CLIP
$7.34¢3 669
1
#28
90445-08028-00
HOSE
$8.84¢4 419
1
#29
90109-04001-00
BOLT
$1.47¢737
1
#30
90179-04003-00
NUT
$4.04¢2 019
1
#31
90480-13567-00
GROMMET
$4.63¢2 313
1
#32
90387-06130-00
Collar
$8.63¢4 313
1
#33
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
