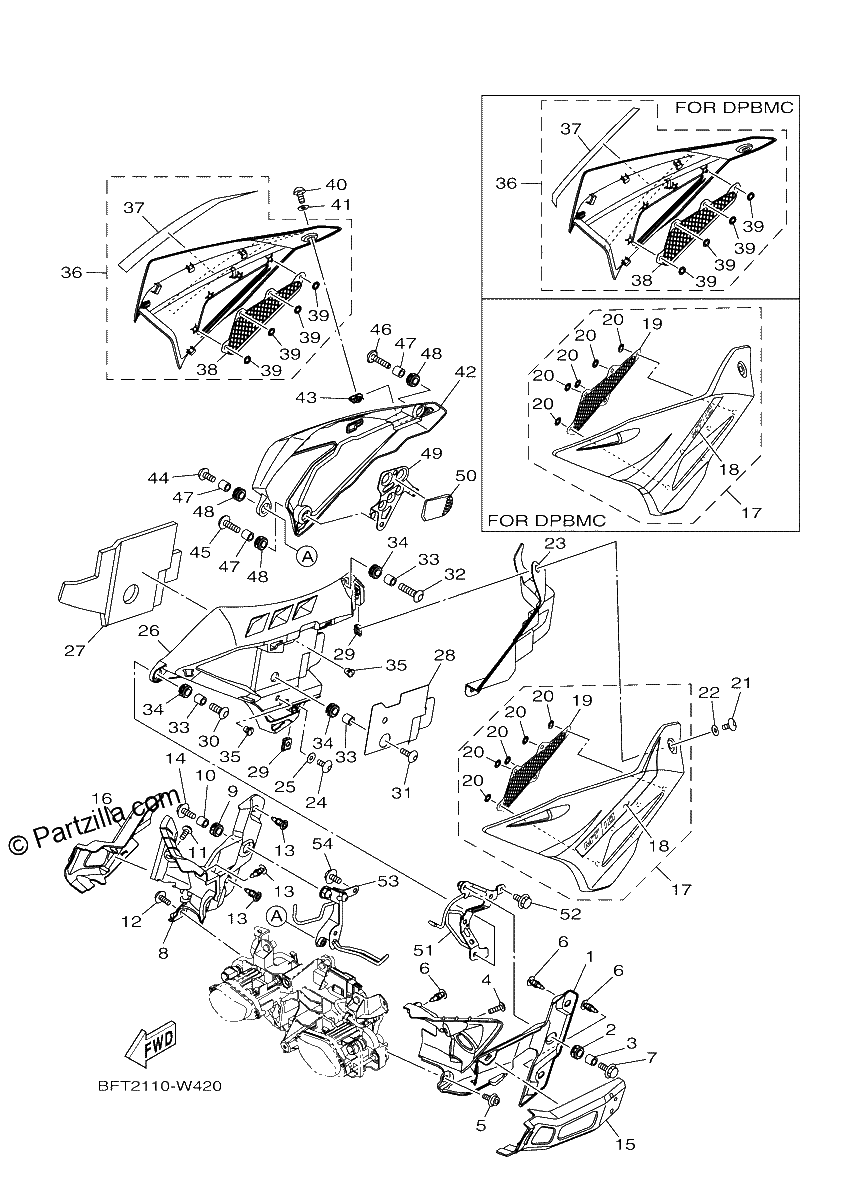

COWLING 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL, INNER 3
$16.65¢8 326
#2
GROMMET
$6.83¢3 415
#3
COLLAR
$6.83¢3 415
#4
SCREW, TAPPING
$1.94¢972
#5
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
#6
RIVET
$5.93¢2 967
#7
Bolt, Flange
$1.64¢822
#8
PANEL, INNER 4
$16.65¢8 326
#9
GROMMET
$6.83¢3 415
#10
COLLAR
$6.83¢3 415
#11
SCREW, TAPPING
$1.94¢972
#12
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
#13
RIVET
$5.93¢2 967
#14
Bolt, Flange
$1.64¢822
#15
STAY, SIDE 1
$43.56¢21 781
#16
STAY, SIDE 1
$43.56¢21 781
#17
COVER 1 (DEEP PURPLISH BLUE METALLIC C)
$187.47¢93 736
#18
.. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
$9.95¢4 974
#19
GRILL, AIR OUTLET 1
$18.66¢9 332
#20
NUT, SPRING
$0.46¢230
#21
BOLT,HEX. SOCKET BUTTON
$2.35¢1 173
#22
WASHER, PLATE
$7.05¢3 525
#23
COVER 3
$26.08¢13 041
#24
BOLT,HEX. SOCKET BUTTON
$2.35¢1 173
#25
WASHER, PLATE
$7.05¢3 525
#26
BRACKET 1
$48.17¢24 087
#27
DAMPER 1
$40.69¢20 344
#28
SHEET 1
$6.15¢3 076
#29
NUT, SPRING
$2.60¢1 299
#30
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#31
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
#32
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
#33
COLLAR
$6.83¢3 415
#34
GROMMET
$6.83¢3 415
#35
PLUG
$6.22¢3 111
#36
COVER 2 (DEEP PURPLISH BLUE METALLIC C)
$268.58¢134 291
#37
.. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
$9.95¢4 974
#38
GRILL, AIR OUTLET 2
$26.54¢13 271
#39
NUT, SPRING
$0.46¢230
#40
BOLT,HEX. SOCKET BUTTON
$2.35¢1 173
#41
WASHER, PLATE
$7.05¢3 525
#42
BRACKET 2
$48.13¢24 064
#43
NUT, SPRING
$2.60¢1 299
#44
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#45
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
#46
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
#47
COLLAR
$6.83¢3 415
#48
GROMMET
$6.83¢3 415
#49
BRACKET 12
$15.02¢7 510
#50
Damper
$11.10¢5 549
#51
BRACKET 1
$73.91¢36 955
#52
Bolt, Flange
$1.64¢822
#53
BRACKET 2
$63.27¢31 636
#54
Bolt, Flange
$1.64¢822
