REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

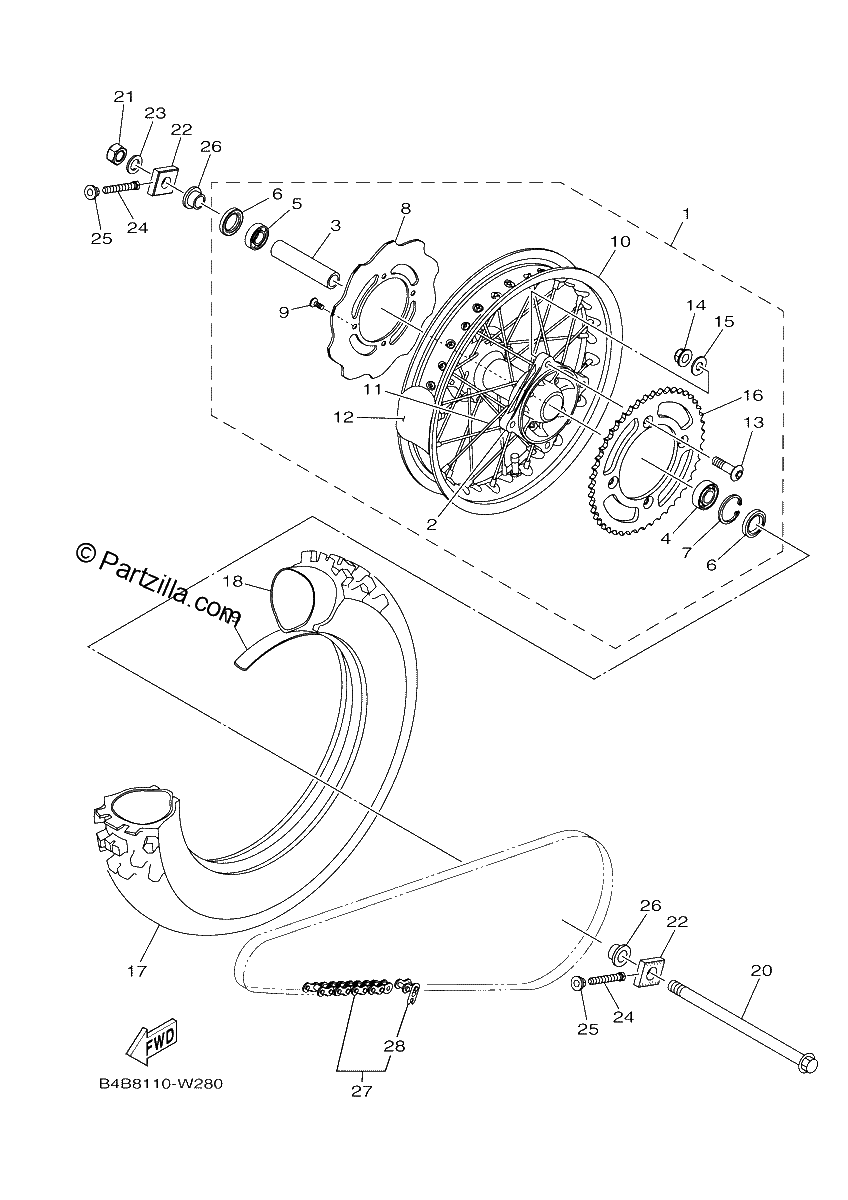

Diagrama de REAR WHEEL

Repuestos

#1
B4B-25302-00-00
REAR WHEEL SUB-ASSY
$537.49¢268 744
1
#2
4ES-25311-00-00
HUB, REAR
$369.16¢184 581
1
#3
4ES-25383-00-00
COLLAR, WHEEL
$26.07¢13 038
1
#4
93306-00203-00
. BEARING
$39.77¢19 888
1
#5
93306-20203-00
BEARING
$27.65¢13 825
1
#6
93102-20009-00
OIL SEAL
$10.86¢5 431
1
#7
99009-35500-00
CIRCLIP
$7.34¢3 669
1
#8
B4B-2582W-01-00
DISK, REAR BRAKE 2
$109.60¢54 800
1
#9
90151-06051-00
SCREW, COUNTERSUNK
$3.17¢1 588
1
#10
94416-14006-00
RIM (1.60-14)
$323.86¢161 931
1
#11
4ES-25304-20-00
SPOKE SET, REAR
$106.51¢53 256
1
#12
5X2-25394-00-00
SPACER, BEAD
$52.46¢26 231
1
#13
90152-08001-00
SCREW, COUNTERSUNK
$3.56¢1 781
1
#14
90185-08008-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#15
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#16
5PA-25449-00-00
SPROCKET, DRIVEN (49T) | AP
$118.38¢59 188
1
#16
5PA-25448-00-00
SPROCKET, DRIVEN (48T) | AP
$85.38¢42 688
1
#16
5PA-25446-00-00
SPROCKET, DRIVEN (46T) | AP
$81.15¢40 575
1
#16
4ES-25447-10-00
SPROCKET, DRIVEN (
$120.45¢60 225
1
#17
94109-14020-00
Tire
$99.99¢49 994
1
#18
94208-14285-00
TUBE (80-90/100-14M/C TR4) | DUNLOP
$26.91¢13 456
1
#19
94308-14165-00
BAND, RIM (22-14)
$8.84¢4 419
1
#20
BR8-25381-00-00
AXLE, WHEEL
$33.20¢16 600
1
#21
90185-14009-00
NUT, SELF-LOCKING
$9.91¢4 956
1
#22
BR8-25389-00-00
PULLER, CHAIN 2
$23.61¢11 806
1
#23
90201-14411-00
WASHER,PLATE
$6.38¢3 188
1
#24
90101-08006-00
bolt
$8.01¢4 006
1
#25
90179-08029-00
Nut
$15.08¢7 538
1
#26
BR8-25383-00-00
COLLAR, WHEEL
$26.71¢13 356
1
#27
9Y582-43117-00
CHAIN (DID 428DS 118LL)
$148.60¢74 300
1
#28
94682-43001-00
JOINT, CHAIN (DID 428DS-RJ)
$5.91¢2 956
1
