REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

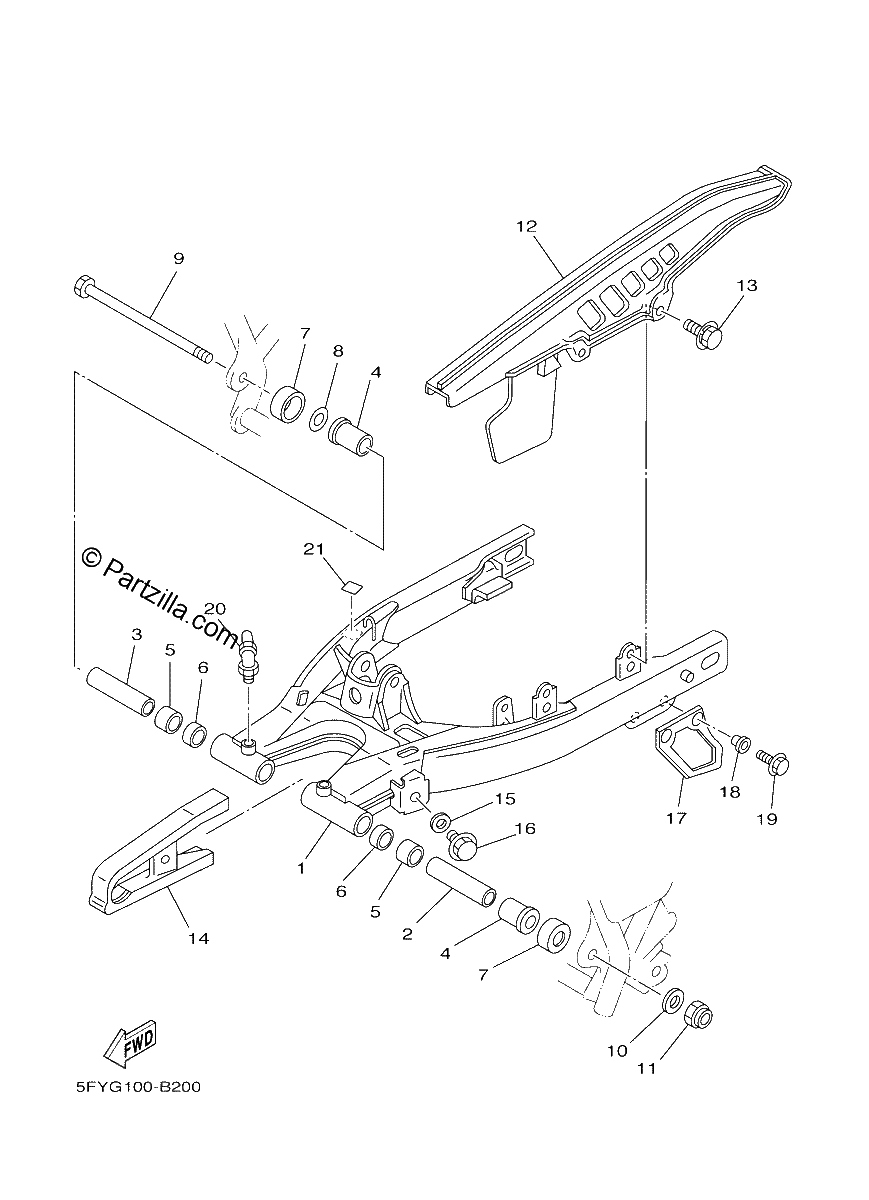

Diagrama de REAR ARM

Repuestos

#1
2JX-22110-00-35
REAR ARM COMP.
$783.83¢391 914
1
#2
2JX-22123-00-00
BUSH 1
$23.99¢11 994
1
#3
2JX-22124-00-00
BUSH 2
$35.01¢17 503
1
#4
90386-18146-00
BUSH,SPEC'L NYLON
$17.38¢8 688
1
#5
90380-18139-00
BUSH,SOLID
$17.96¢8 981
1
#6
93109-18020-00
OIL SEAL,SDO-TYPE
$12.25¢6 124
1
#7
401-22128-01-00
COVER, THRUST 1
$27.95¢13 973
1
#8
401-22127-00-00
SHIM
$7.24¢3 622
1
#9
2JX-22141-00-00
SHAFT,PIVOT
$19.57¢9 786
1
#10
90201-120E8-00
WASHER,PLATE (55X)
$5.37¢2 685
1
#11
90185-12134-00
NUT,SELF-LOCKING
$11.07¢5 537
1
#12
34X-22311-00-00
CASE, CHAIN
$32.22¢16 112
1
#13
90119-05059-00
BOLT,WITH WASHER
$2.02¢1 012
1
#14
34X-22151-01-00
SEAL, GUARD
$87.87¢43 936
1
#15
90209-06187-00
WASHER,SPEC'L SHAP
$6.76¢3 381
1
#16
90119-05062-00
BOLT, WITH WASHER
$6.14¢3 070
1
#17
5BT-22199-00-00
SUPPORT, CHAIN
$22.20¢11 098
1
#18
90387-06737-00
COLLAR
$7.24¢3 622
1
#19
95807-06020-00
BOLT, FLANGE
$3.05¢1 524
1
#20
93700-06009-00
NIPPLE,GREASE
$10.87¢5 434
1
#21
3MA-27491-00-00
PROTECTOR
$9.10¢4 548
1
