FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

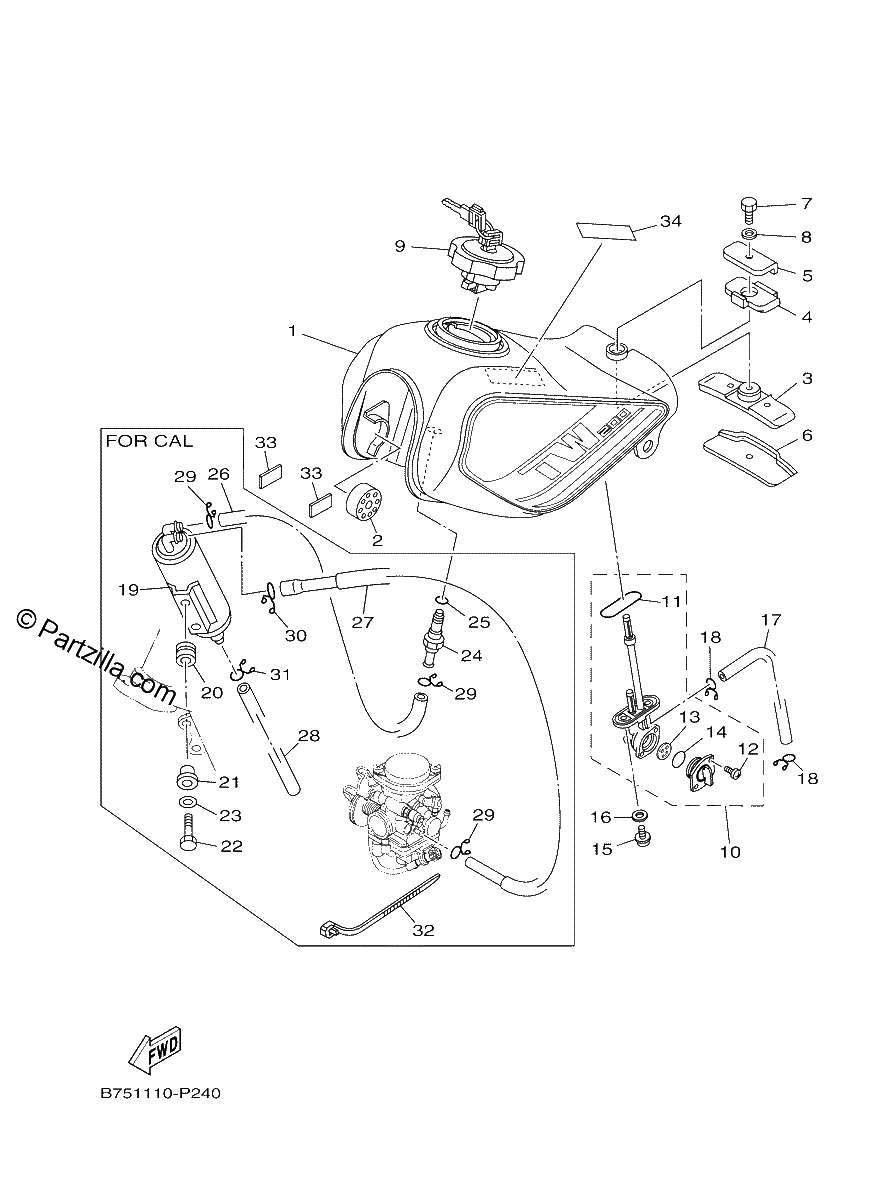

Diagrama de FUEL TANK

Repuestos

#1
5RS-Y2410-30-X6
FUEL TANK COMP.
$908.74¢454 369
1
#2
4L0-24181-00-00
DAMPER, LOCATING 1
$10.39¢5 194
1
#3
30X-24182-01-00
DAMPER, LOCATING 2
$22.65¢11 325
1
#4
30X-24183-01-00
DAMPER, LOCATING 3
$7.48¢3 738
1
#5
30X-24186-01-00
WASHER, SPECIAL
$8.03¢4 013
1
#6
30X-24187-00-00
WASHER, SPECIAL
$26.59¢13 294
1
#7
97007-06012-00
BOLT
$3.11¢1 556
1
#8
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#9
51K-24602-10-00
CAP ASSY | FOR CAL
$140.15¢70 075
1
#10
23F-24500-20-00
FUEL COCK ASSY 1
$44.04¢22 019
1
#11
4X8-24512-10-00
GASKET
$13.06¢6 531
1
#12
98507-03008-00
SCREW, PAN HEAD
$3.26¢1 631
1
#13
3AC-24523-00-00
VALVE PACKING
$13.81¢6 906
1
#14
3AJ-24534-10-00
SEAL, COCK
$8.43¢4 213
1
#15
90149-06011-00
SCREW,SPEC'L SHAPE
$1.95¢975
1
#16
90202-05193-00
WASHER, PLATE
$1.57¢788
1
#17
90445-10041-00
HOSE (L110)
$4.49¢2 244
1
#18
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#19
4BE-24170-00-00
CANISTER ASSY | FOR CAL
$403.58¢201 788
1
#20
90480-15342-00
GROMMET (56R)
$5.06¢2 531
1
#21
90387-063G3-00
COLLAR (56R)
$7.48¢3 738
1
#22
97007-06025-00
BOLT
$3.55¢1 775
1
#23
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#24
20K-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$152.71¢76 356
1
#25
93210-10166-00
O-RING
$6.99¢3 494
1
#26
90445-10017-00
HOSE | FOR CAL
$40.74¢20 369
1
#27
90445-10045-00
HOSE | FOR CAL
$37.60¢18 800
1
#28
90445-11M27-00
HOSE (L240) | FOR CAL
$29.18¢14 588
1
#29
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#30
90467-10008-00
CLIP
$7.60¢3 800
1
#31
90467-11106-00
Clip
$3.25¢1 625
1
#32
90464-13073-00
Clamp
$3.30¢1 650
1
#33
2JX-24141-00-00
PROTECTOR, FUEL TANK
$7.60¢3 800
1
#34
1TP-2118K-A2-00
. LABEL, CAUTION
$7.16¢3 581
1
