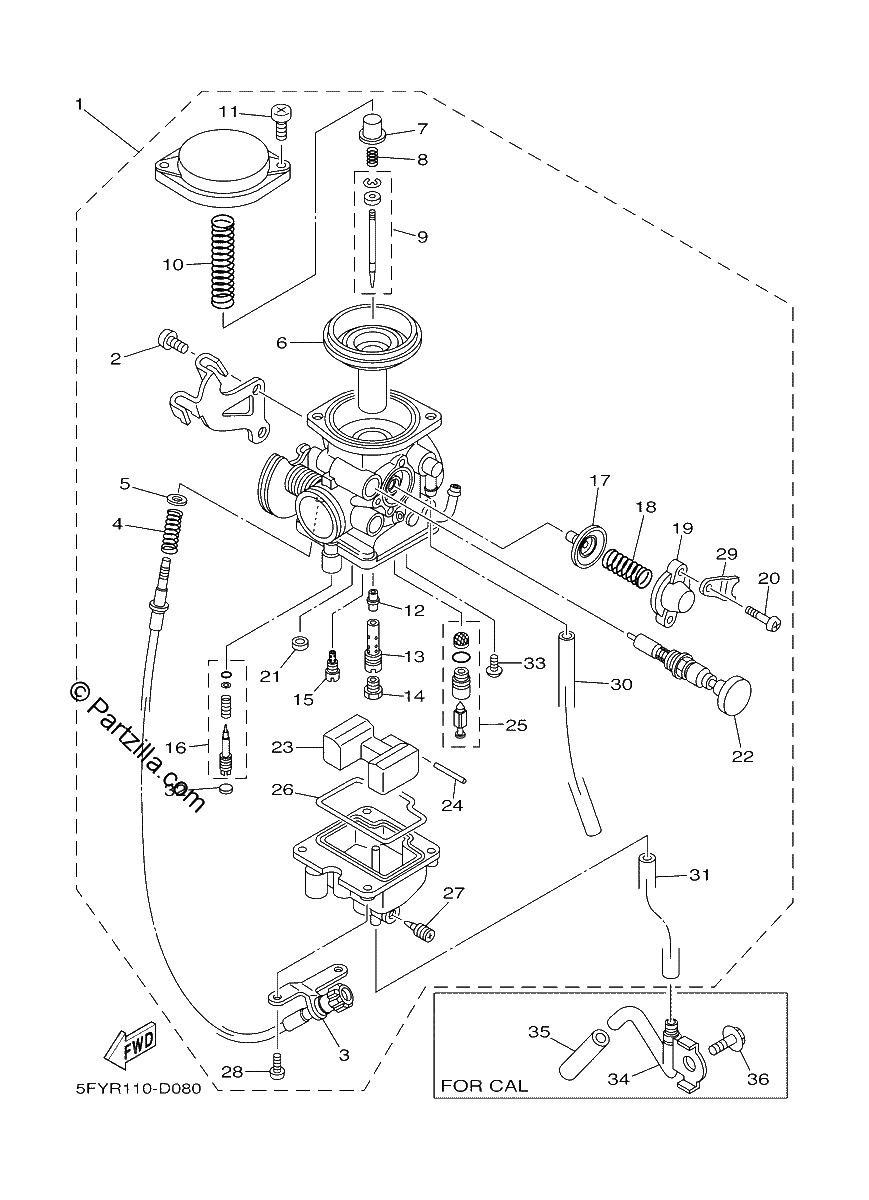

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY 1 | FOR CAL
$462.76¢231 381
#2
. THROTTLE SCREW
$3.57¢1 787
#3
SCREW, THROTTLE
$120.11¢60 056
#4
SPRING, THROTTLE STOP
$7.91¢3 956
#5
WASHER, PLAIN
$4.41¢2 206
#6
SUCTION PISTON ASSY
$104.30¢52 150
#7
SEAT, SPRING
$23.34¢11 669
#8
SPRING
$4.91¢2 456
#9
NEEDLE
$31.43¢15 713
#10
SPRING
$11.03¢5 513
#11
SCREW
$5.88¢2 938
#12
NOZZLE, MAIN
$46.74¢23 369
#13
BLEED, MAIN NOZZLE
$51.95¢25 975
#14
JET, MAIN (#126)
$26.29¢13 144
#15
JET, PILOT (#31)
$23.42¢11 712
#16
PILOT SCREW SET
$18.90¢9 450
#17
DIAPHRAGM ASSY 1
$57.84¢28 919
#18
SPRING
$4.81¢2 406
#19
COVER 1
$18.34¢9 169
#20
SCREW, LEVER FITTING
$7.82¢3 912
#21
PLUG
$3.96¢1 981
#22
PLUNGER, STARTER
$99.31¢49 656
#23
FLOAT
$58.63¢29 313
#24
PIN, FLOAT
$7.91¢3 956
#25
NEEDLE VALVE ASSY
$43.49¢21 744
#26
GASKET, FLOAT CHAMBER
$17.01¢8 506
#27
. DRAIN, SCRE
$10.69¢5 344
#28
SCREW
$4.91¢2 456
#29
BRACKET 2
$5.02¢2 512
#30
. PIPE
$9.04¢4 519
#31
PIPE, OVER FLOW 1
$9.60¢4 800
#32
PLUG
$3.89¢1 944
#33
. SCREW, BIND
$5.86¢2 931
#34
PIPE | FOR CAL
$35.38¢17 688
#35
PIPE
$6.40¢3 200
#36
BOLT, FLANGE
$4.72¢2 363
