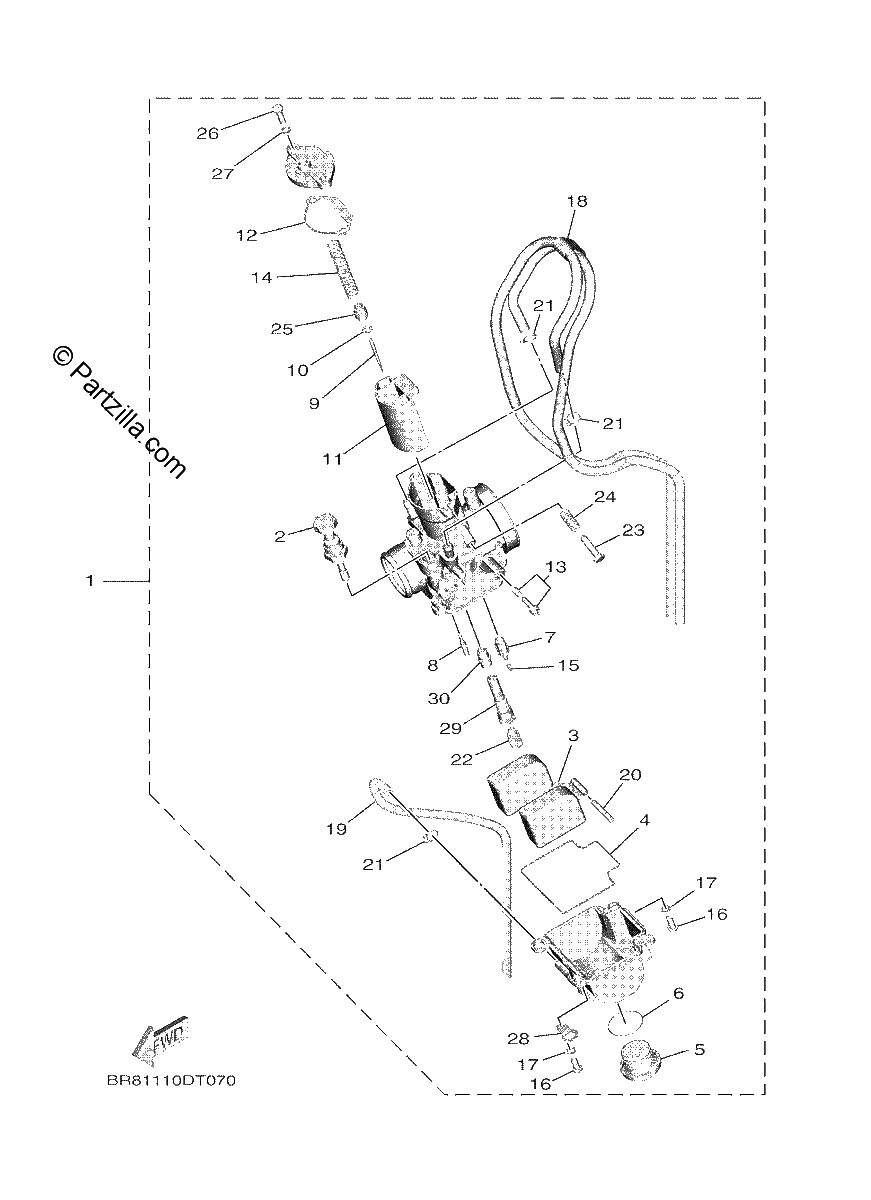

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY 1
$273.63¢136 816
#2
PLUNGER, STARTER
$38.31¢19 153
#3
FLOAT
$41.95¢20 976
#4
GASKET, FLOAT CHAMBER
$15.44¢7 722
#5
PLUG, SCREW
$31.31¢15 657
#6
O-RING
$6.46¢3 231
#7
VALVE, NEEDLE
$42.03¢21 016
#8
JET, SLOW (#48) | AP
$9.12¢4 560
#8
JET, SLOW (#50) | STD
$9.12¢4 560
#9
JET NEEDLE COMP.
$20.40¢10 200
#9
JET NEEDLE COMP.
$17.19¢8 596
#9
JET NEEDLE COMP.
$20.13¢10 063
#9
JET NEEDLE COMP.
$17.19¢8 596
#9
JET NEEDLE COMP.
$17.19¢8 596
#9
JET NEEDLE COMP.
$20.13¢10 063
#10
CLIP
$7.04¢3 519
#11
VALVE ASSY
$286.25¢143 123
#12
GASKET
$16.95¢8 476
#13
PILOT SCREW SET
$21.69¢10 844
#14
SPRING, THROTTLE VALVE
$23.03¢11 517
#15
CLIP
$7.37¢3 686
#16
. SCREW, PAN HEAD
$3.06¢1 529
#17
. WASHER
$1.24¢621
#18
HOSE
$39.62¢19 809
#19
PIPE
$9.69¢4 847
#20
PIN, FLOAT ARM
$5.58¢2 789
#21
Clip
$7.04¢3 519
#22
JET, MAIN (#142) | AP
$10.89¢5 445
#22
JET, MAIN (#148)
$11.12¢5 560
#22
JET, MAIN (#145)
$16.01¢8 004
#22
JET, MAIN (#140) | AP
$16.01¢8 004
#23
SCREW, THROTTLE
$17.34¢8 671
#24
SPRING, THROTTLE STOP
$7.82¢3 910
#25
RING
$14.41¢7 205
#26
. SCREW, PAN HEAD
$7.30¢3 651
#27
. WASHER
$1.24¢621
#28
PLATE
$2.17¢1 087
#29
HOLDER, NEEDEL JET
$26.01¢13 006
#30
JET, NEEDLE
$50.86¢25 432
