REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

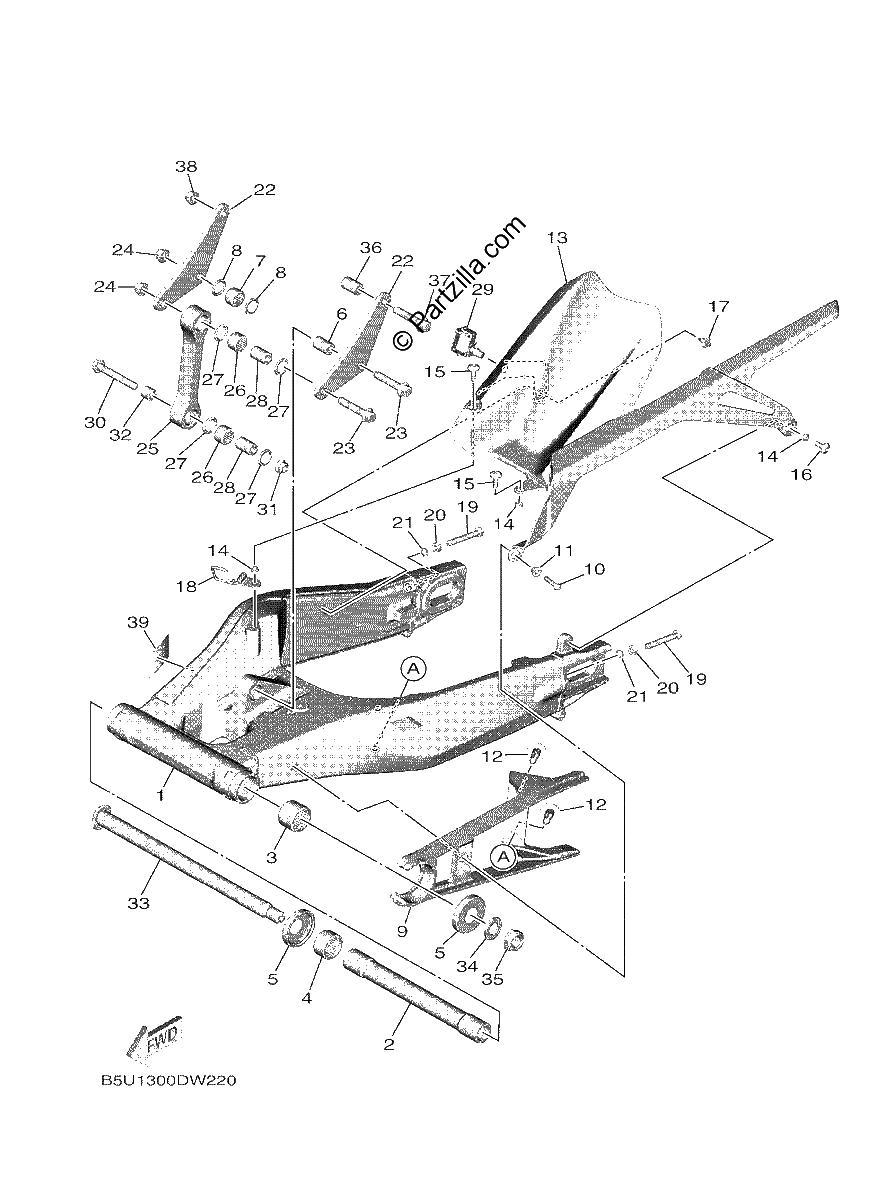

Diagrama de REAR ARM

Repuestos

#1
B5U-22110-00-00
REAR ARM COMP.
$2362.00¢1 180 998
1
#2
90387-22037-00
COLLAR
$78.95¢39 474
1
#3
93317-330A0-00
BEARING
$33.92¢16 963
1
#4
93317-330A1-00
BEARING
$32.40¢16 198
1
#5
5VY-22128-00-00
COVER, THRUST 1
$14.54¢7 268
1
#6
90387-1012A-00
COLLAR
$19.48¢9 741
1
#7
93315-31758-00
BEARING
$38.04¢19 021
1
#8
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#9
B5U-22151-00-00
SEAL, GUARD
$30.44¢15 220
1
#10
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#11
90387-062X0-00
COLLAR
$18.85¢9 424
1
#12
90269-07007-00
RIVET
$3.68¢1 840
1
#13
B5U-21650-00-00
REAR FENDER COMP.
$57.40¢28 698
1
#14
90387-06372-00
COLLAR
$5.93¢2 967
1
#15
90149-06104-00
SCREW
$4.20¢2 099
1
#16
90111-06151-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#17
90269-07007-00
RIVET
$3.68¢1 840
1
#18
B5U-22538-00-00
STAY
$17.01¢8 504
1
#19
90101-08013-00
BOLT
$3.29¢1 644
1
#20
95302-08600-00
NUT (6L2)
$7.44¢3 720
1
#21
90201-08052-00
WASHER, plate
$1.93¢966
1
#22
B5U-2217A-00-00
ARM, RELAY
$29.57¢14 783
1
#23
90105-10030-00
BOLT, FLANGE
$8.27¢4 134
1
#24
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#25
B7N-2217M-00-00
ARM 1
$50.62¢25 312
1
#26
93315-31758-00
BEARING
$38.04¢19 021
1
#27
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#28
90387-1012A-00
COLLAR
$19.48¢9 741
1
#29
90464-20023-00
CLAMP
$3.58¢1 788
1
#30
90105-10211-00
BOLT, FLANGE
$6.52¢3 260
1
#31
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#32
90387-10043-00
COLLAR
$24.77¢12 385
1
#33
B7N-22141-00-00
SHAFT, PIVOT
$72.99¢36 495
1
#34
90201-18013-00
WASHER, PLATE
$6.80¢3 398
1
#35
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#36
90387-10125-00
COLLAR
$7.64¢3 818
1
#37
90105-10030-00
BOLT, FLANGE
$8.27¢4 134
1
#38
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#39
14B-21668-00-00
LABEL, TIRE
$3.32¢1 662
1
