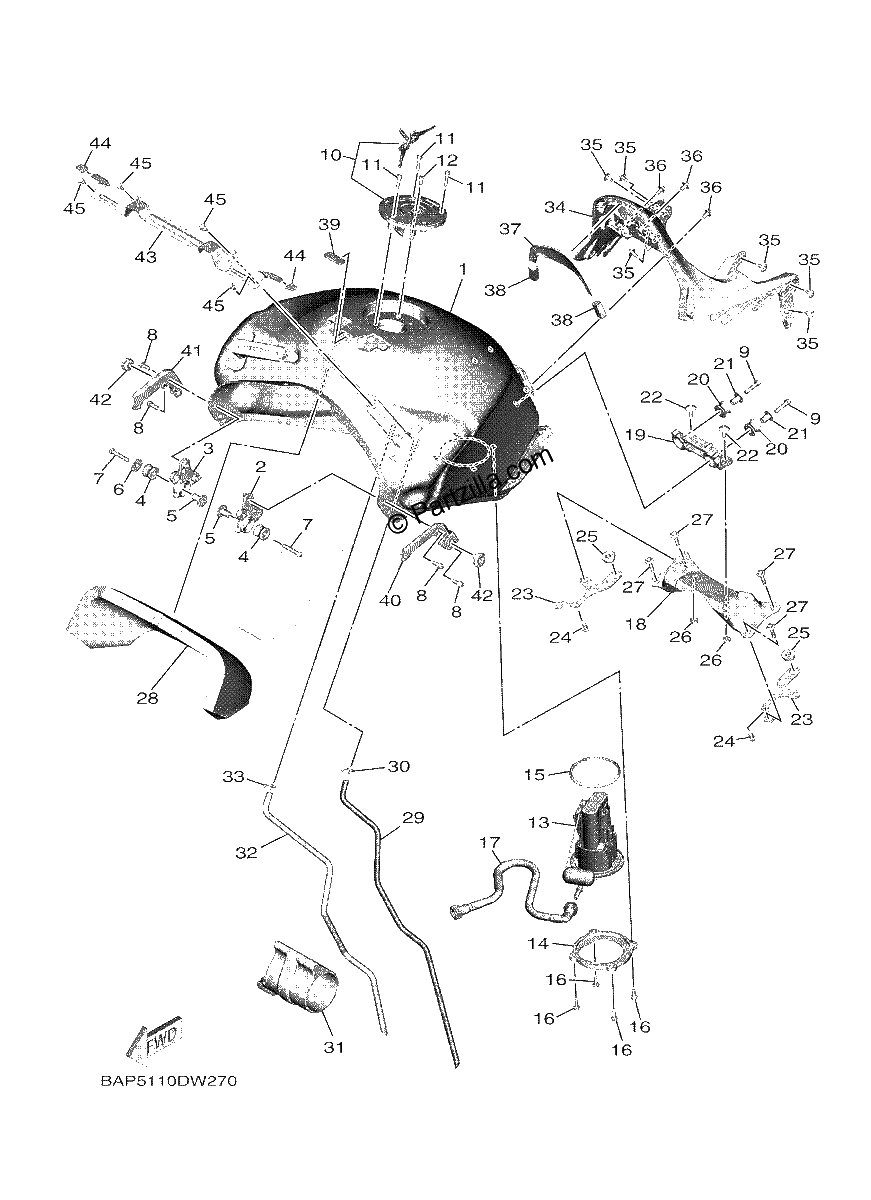

FUEL TANK 1 FOR U49
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$849.99¢424 994
#2
BRACKET, FUEL TANK 1
$27.94¢13 969
#3
BRACKET, FUEL TANK 2
$31.04¢15 519
#4
GROMMET
$3.79¢1 894
#5
COLLAR
$4.68¢2 338
#6
WASHER, PLATE
$7.63¢3 813
#7
BOLT, BUTTON HEAD
$2.05¢1 025
#8
BOLT, FLANGE DEEP RECESS
$0.41¢206
#9
BOLT, FLANGE DEEP RECESS
$0.59¢294
#10
CAP ASSY
$312.61¢156 306
#11
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#12
BOLT
$5.86¢2 931
#13
FUEL PUMP COMP.
$295.73¢147 863
#14
BRACKET, FUEL PUMP
$29.35¢14 675
#15
O-RING
$29.22¢14 612
#16
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#17
PIPE, FUEL 1
$65.14¢32 569
#18
BRACKET, TANK FITTING
$41.04¢20 519
#19
BRACKET, CANISTOR
$21.76¢10 881
#20
GROMMET
$3.93¢1 963
#21
COLLAR
$6.76¢3 381
#22
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
#23
STAY
$5.55¢2 775
#24
BOLT, BUTTON HEAD
$2.97¢1 487
#25
GROMMET
$4.63¢2 313
#26
NUT, FLANGE
$2.44¢1 219
#27
BOLT, HEXAGON SOCKET HEAD
$9.70¢4 850
#28
DAMPER, PLATE 1
$9.75¢4 875
#29
PIPE 5
$23.38¢11 688
#30
Clip
$2.97¢1 487
#31
DAMPER, LOCATING 3
$39.30¢19 650
#32
PIPE 3
$17.88¢8 938
#33
Clip
$2.97¢1 487
#34
PROTECTOR, FUEL TANK
$25.53¢12 763
#35
RIVET
$2.13¢1 063
#36
RIVET
$3.46¢1 731
#37
DAMPER, LOCATING 1
$4.96¢2 481
#38
DAMPER, PLATE
$1.07¢538
#39
DAMPER, SIDE COVER
$5.11¢2 556
#40
PLATE, FITTING
$13.24¢6 619
#41
HOOK TANK FITTING
$12.58¢6 288
#42
Grommet
$4.69¢2 344
#43
STAY
$42.86¢21 431
#44
DAMPER, SIDE COVER
$7.65¢3 825
#45
BOLT, FLANGE
$2.64¢1 319
