SADDLEBAG 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

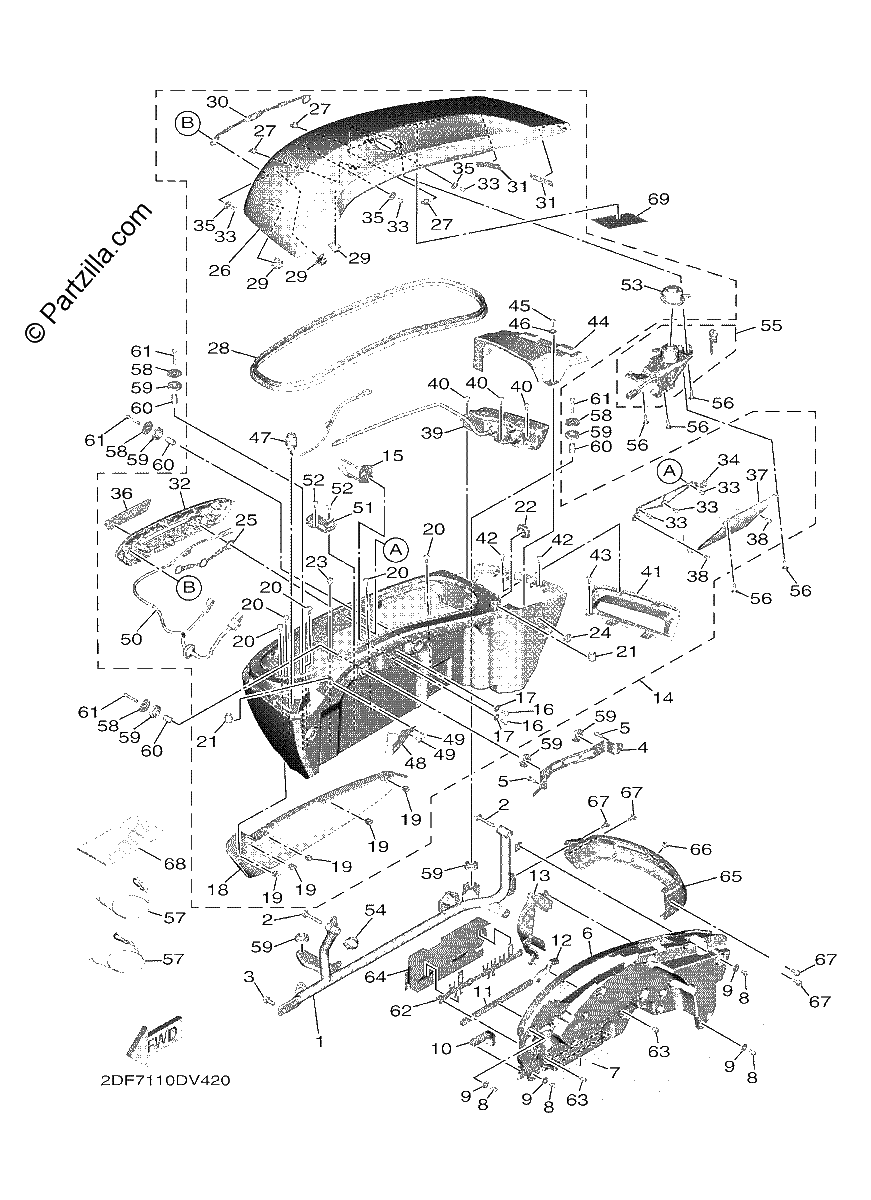

Diagrama de SADDLEBAG 2

Repuestos

#1
2DF-28474-00-00
FRAME, SADDLEBAG 2
$180.86¢90 430
1
#2
95D32-08045-00
BOLT, FLANGE DEEP RECESS
$0.89¢443
1
#3
95817-08020-00
BOLT, FLANGE
$7.65¢3 824
1
#4
2DF-28414-00-00
STAY, FRONT GUARD 2
$31.05¢15 525
1
#5
95027-06016-00
Bolt, Flange
$6.88¢3 439
1
#6
2DF-2846U-00-00
COVER, SIDE BOX 2
$80.56¢40 279
1
#7
2DF-28458-00-00
Patch
$4.37¢2 185
1
#8
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#9
90387-06071-00
COLLAR
$7.58¢3 789
1
#10
2DF-2847N-00-00
DAMPER 8
$4.57¢2 283
1
#11
90520-10032-00
DAMPER, PLATE
$3.21¢1 604
1
#12
2DF-2847S-00-00
DAMPER 11
$3.21¢1 604
1
#13
2DF-2841T-00-00
PLATE, BOTTOM 2
$22.70¢11 350
1
#14
2DF-28420-04-P4
SADDLEBAG ASSY., 2
$4012.34¢2 006 169
1
#15
2DF-28494-00-00
HOOK 3
$66.02¢33 011
1
#16
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#17
90201-06055-00
WASHER, PLATE
$3.22¢1 610
1
#18
2DF-2844J-00-00
COVER 4
$70.35¢35 173
1
#19
90183-05073-00
Nut, Spring
$11.73¢5 865
1
#20
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#21
2DF-28415-00-00
DAMPER 1
$4.05¢2 024
1
#22
2DF-2847F-00-00
SEAL 5
$2.69¢1 346
1
#23
90338-10132-00
PLUG
$2.89¢1 443
1
#24
2DF-2846F-00-00
SEAL 4
$2.74¢1 368
1
#25
2DF-284BF-00-00
STAY, 7
$16.97¢8 487
1
#26
2DF-28449-00-P5
.. SADDLEBAG 4
$367.91¢183 954
1
#27
90183-062A0-00
Nut, Spring
$3.82¢1 909
1
#28
2DF-28429-00-00
SEAL 2
$31.43¢15 715
1
#29
2DF-81128-00-00
Clamp
$3.21¢1 604
1
#30
2DF-284BH-00-00
STAY, 10
$20.37¢10 183
1
#31
2DF-284BP-00-00
SEAL, 16
$2.16¢1 081
1
#32
2DF-2844S-00-00
HINGE SUB-ASSY., 2
$640.72¢320 361
1
#33
90111-06102-00
. BOLT,HEX SOCKET BUTTON
$5.65¢2 823
1
#34
2DF-2846N-00-00
BRACKET, HINGE 2
$15.97¢7 987
1
#35
90201-06557-00
WASHER, PLATE
$3.02¢1 512
1
#36
2DF-85130-00-00
REAR REFLECTOR ASSY
$37.25¢18 624
1
#37
2DF-2846L-00-00
COVER, HINGE 2
$142.12¢71 059
1
#38
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#39
2DF-83340-00-00
REAR FLASHER LIGHT ASSY 2
$204.84¢102 419
1
#40
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#41
2DF-833A2-00-00
GARNISH, FLASHER 2
$89.06¢44 528
1
#42
98907-05012-00
SCREW, BIND | FOR CALIFORNIA
$6.76¢3 381
1
#43
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#44
2DF-2844C-00-00
LID 2
$38.23¢19 113
1
#45
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#46
90202-07015-00
WASHER, PLATE
$7.31¢3 657
1
#47
2DF-82617-00-00
SWITCH
$35.98¢17 992
1
#48
2DF-28476-00-00
BRACKET 3
$12.35¢6 176
1
#49
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#50
2DF-86178-01-00
WIRE, LEAD 8
$55.83¢27 916
1
#51
2DF-21376-00-00
BAND, TOOL
$10.87¢5 434
1
#52
97702-50014-00
SCREW, TAPPING
$6.76¢3 381
1
#53
2DF-2845X-00-00
CAP,2
$30.50¢15 249
1
#54
90464-26001-00
Clamp
$1.70¢851
1
#55
2DF-W2849-11-00
LOCK ASSY (replaces 2DF-W2849-10-00)
$409.49¢204 746
1
#56
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#57
2DF-21398-00-00
HANGER, HELMET
$14.50¢7 251
1
#58
90201-065G8-00
WASHER, PLATE
$6.75¢3 375
1
#59
90480-20447-00
GROMMET
$6.75¢3 375
1
#60
90387-08111-00
Collar
$3.62¢1 811
1
#61
92017-06035-00
BOLT, BUTTON HEAD
$2.60¢1 299
1
#62
2DF-2849X-00-00
PLATE, 13
$13.13¢6 567
1
#63
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#64
2DF-2846G-00-00
BAND, 1
$16.84¢8 418
1
#65
2DF-28423-00-00
STAY, SIDE BAG
$61.52¢30 763
1
#66
90338-07010-00
PLUG
$5.12¢2 559
1
#67
95D37-06014-00
BOLT, FLANGE DEEP RECESS
$0.38¢190
1
#68
2DF-28100-01-00
TOOL KIT
$16.94¢8 470
1
#69
4XY-28446-02-00
LABEL, CAUTION
$8.87¢4 433
