TRAVEL BAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

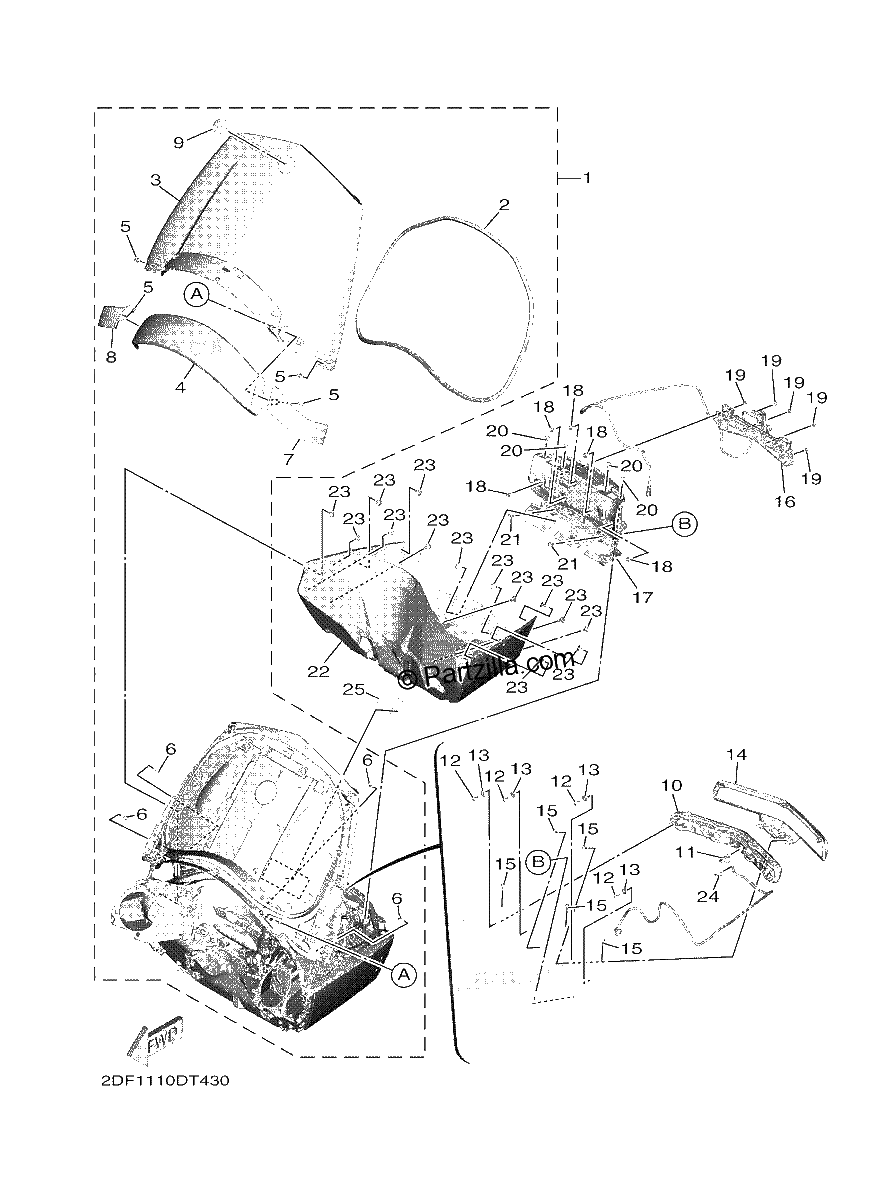

Diagrama de TRAVEL BAG

Repuestos

#1
2DF-2840E-02-P3
TRAVEL TRUNK COMP.
$7847.59¢3 923 794
1
#2
2DF-284AL-00-00
SEAL, 8
$16.90¢8 452
1
#3
2DF-2842E-01-P3
.. TRAVEL TRUNK UPPER
$447.58¢223 790
1
#4
2DF-2841V-01-00
COVER, 7 (replaces 2DF-2841V-00-00)
$169.65¢84 824
1
#5
90183-05073-00
Nut, Spring
$11.73¢5 865
1
#6
90154-05004-00
SCREW, BINDING
$3.54¢1 771
1
#7
2DF-2848J-01-00
PLATE, RUBBER 8 (replaces 2DF-2848J-00-00)
$15.59¢7 797
1
#8
2DF-2849J-01-00
PLATE, RUBBER 9 (replaces 2DF-2849J-00-00)
$17.32¢8 660
1
#9
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#10
2DF-84790-00-00
HIGH MOUNT STOP LAMP ASSY
$581.81¢290 904
1
#11
2DF-86174-00-00
WIRE, LEAD 4
$12.96¢6 480
1
#12
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#13
90201-05033-00
WASHER, PLATE
$7.77¢3 887
1
#14
2DF-2848Y-00-00
COVER, LOCK
$342.44¢171 218
1
#15
90154-05004-00
SCREW, BINDING
$3.54¢1 771
1
#16
2DF-W2847-11-00
TRAVEL TRUNK UPPER SET (replaces 2DF-W2847-10-00)
$260.68¢130 341
1
#17
2DF-28493-00-00
COVER LOCK ASSY 2
$152.79¢76 395
1
#18
90109-05007-00
BOLT
$0.52¢259
1
#19
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#20
90154-05004-00
SCREW, BINDING
$3.54¢1 771
1
#21
90119-06212-00
BOLT, WITH WASHER
$6.82¢3 410
1
#22
2DF-28416-00-00
DAMPER 2
$139.41¢69 707
1
#23
90269-07015-00
RIVET
$1.13¢564
1
#24
90464-16019-00
Clamp
$0.76¢380
1
#25
4XY-28446-02-00
LABEL, CAUTION
$8.87¢4 433
1
