MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

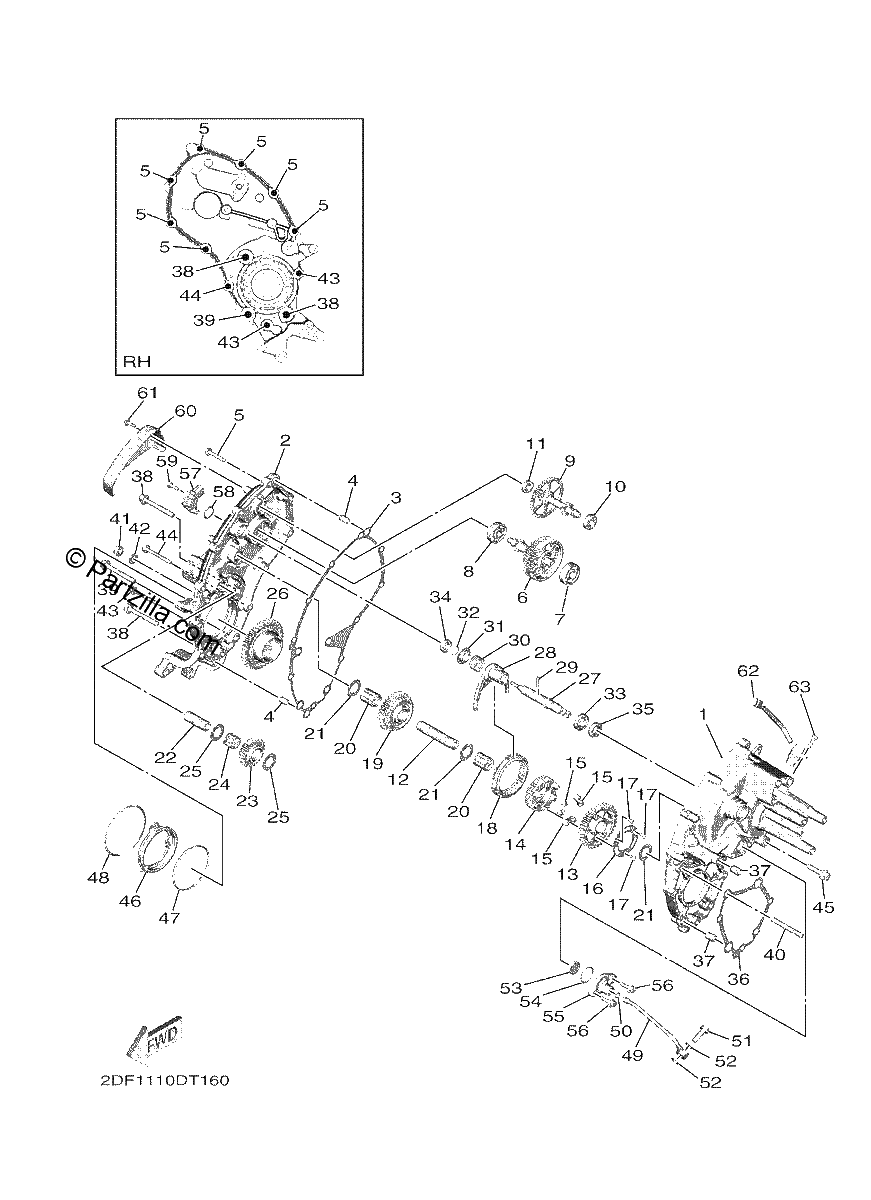

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
2DF-17541-00-00
CASE, TRANSFER 1
$350.25¢175 125
1
#2
2DF-15417-00-00
COVER, CAP
$195.96¢97 981
1
#3
2DF-15457-00-00
Gasket
$38.96¢19 481
1
#4
99530-10116-00
PIN, DOWEL
$4.00¢2 000
1
#5
90110-06403-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 269
1
#6
2DF-176B0-00-00
REDUCTION GEAR ASSY 1
$251.99¢125 994
1
#7
93306-30101-00
BEARING
$38.68¢19 338
1
#8
93306-30002-00
BEARING
$44.71¢22 356
1
#9
2DF-176C0-00-00
REDUCTION GEAR ASSY. 2
$169.83¢84 913
1
#10
93306-00013-00
BEARING(JN9)
$38.65¢19 325
1
#11
93306-90004-00
BEARING(JN9)
$41.21¢20 606
1
#12
2DF-1761A-00-00
SHAFT 1
$17.80¢8 900
1
#13
2DF-17841-00-00
Gear, Driven
$147.32¢73 663
1
#14
2DF-17622-00-00
Boss
$97.88¢48 938
1
#15
2DF-17655-00-00
DAMPER, SLIDER
$17.84¢8 919
1
#16
2DF-16118-00-00
PLATE, SIDE 1
$8.77¢4 387
1
#17
90149-04003-00
Screw
$1.69¢844
1
#18
2DF-17285-00-00
CLUTCH, DOG
$111.74¢55 869
1
#19
2DF-17143-00-00
GEAR, REVERSE PINION 1
$99.77¢49 887
1
#20
93310-41783-00
BEARING
$24.82¢12 413
1
#21
90201-17257-00
WASHER, PLATE
$7.90¢3 950
1
#22
2DF-1761E-00-00
Shaft 2
$14.28¢7 138
1
#23
2DF-1760E-00-00
GEAR 2
$38.45¢19 225
1
#24
93310-41760-00
BEARING
$11.19¢5 594
1
#25
90201-17257-00
WASHER, PLATE
$7.90¢3 950
1
#26
2DF-17243-00-00
GEAR, REVERSE WHEEL 1
$170.32¢85 163
1
#27
2DF-18155-00-00
SHAFT, SHIFT 2
$119.35¢59 675
1
#28
2DF-18311-00-00
FORK, SHIFT 1
$97.48¢48 738
1
#29
93605-20004-00
Pin, Dowel
$0.60¢300
1
#30
90501-121A3-00
Spring, Compression
$2.65¢1 325
1
#31
2DF-17644-00-00
SEAT,SPRING
$15.74¢7 869
1
#32
93440-16148-00
CIRCLIP
$0.68¢338
1
#33
93306-90201-00
BEARING
$25.26¢12 631
1
#34
93306-90001-00
BEARING
$64.88¢32 438
1
#35
93102-15008-00
Oil Seal
$10.25¢5 125
1
#36
2DF-17929-00-00
GASKET 1
$14.59¢7 294
1
#37
91812-16001-00
PIN, DOWEL
$6.15¢3 075
1
#38
2DF-15481-00-00
BOLT 1
$4.59¢2 294
1
#39
2DF-15482-00-00
BOLT 2
$6.63¢3 313
1
#40
90116-08089-00
BOLT, stud
$4.71¢2 356
1
#41
90179-08045-00
Nut
$0.72¢363
1
#42
90201-08366-00
WASHER, PLATE
$8.31¢4 156
1
#43
95812-06050-00
BOLT, FLANGE
$1.80¢900
1
#44
90105-06220-00
Bolt, Flange
$2.10¢1 050
1
#45
90119-08171-00
BOLT, WITH WASHER
$4.09¢2 044
1
#46
2DF-15359-00-00
HOUSING, OIL SEAL
$48.11¢24 056
1
#47
93210-74001-00
O-Ring
$15.93¢7 963
1
#48
93450-85173-00
Circlip
$6.74¢3 369
1
#49
2DF-13191-00-00
PIPE, DELIVERY 4
$39.59¢19 794
1
#50
93210-06010-00
O-Ring
$8.19¢4 094
1
#51
90401-08015-00
BOLT, union
$51.99¢25 994
1
#52
90430-08119-00
GASKET
$6.91¢3 456
1
#53
2DF-13411-00-00
STRAINER, OIL
$14.20¢7 100
1
#54
93210-26001-00
O-Ring
$5.93¢2 963
1
#55
2DF-13417-00-00
COVER, STRAINER
$65.53¢32 763
1
#56
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#57
2DF-85899-00-00
SENSOR, GEAR POSITION
$70.30¢35 150
1
#58
93210-17008-00
O-RING
$2.16¢1 081
1
#59
90110-05067-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#60
2DF-17076-00-00
Cover
$18.52¢9 263
1
#61
90110-05073-00
BOLT, HEXAGON SOCKET HEAD
$1.23¢613
1
#62
2DF-83755-01-00
SENSOR, SPEED
$83.77¢41 887
1
#63
90110-06125-00
BOLT, HEXAGON SOCKET HEAD
$1.46¢731
1
