INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

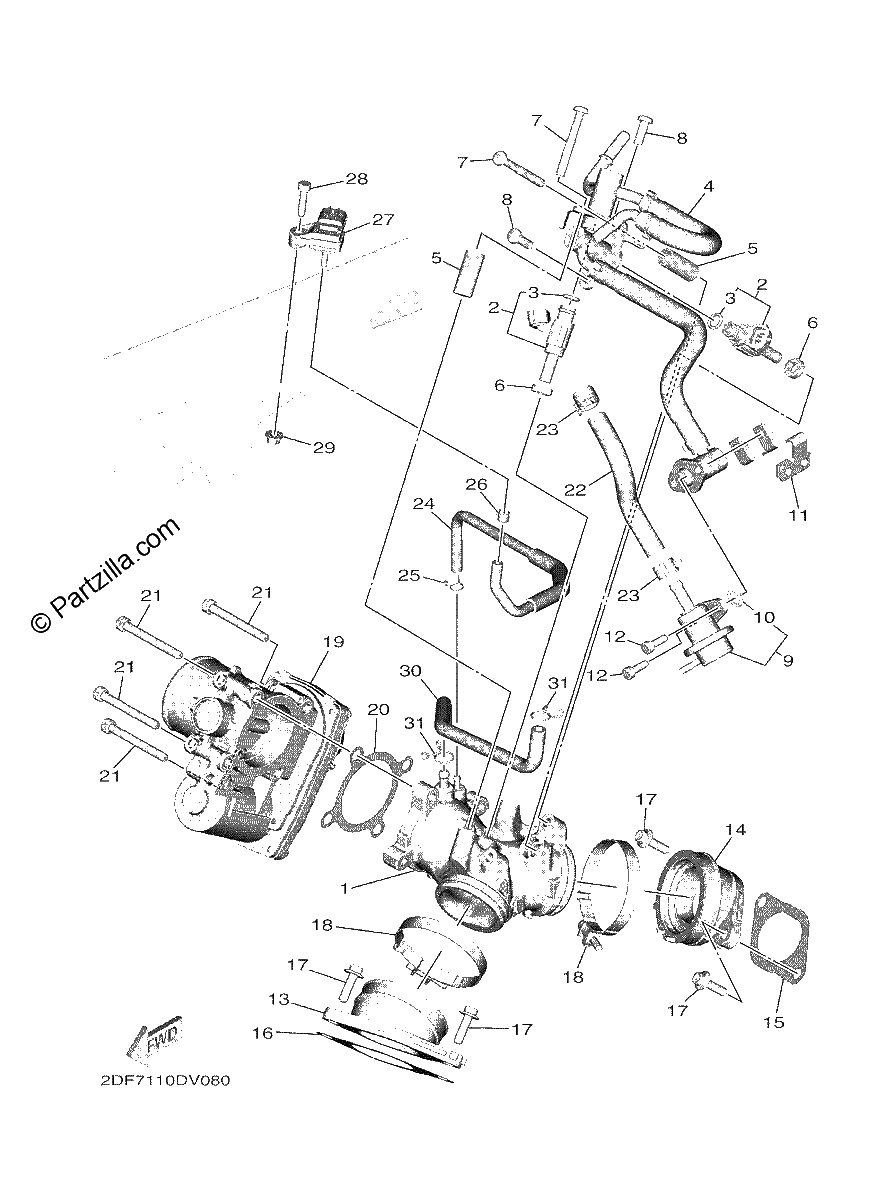

Diagrama de INTAKE

Repuestos

#1
2DF-13640-00-00
MANIFOLD
$206.26¢103 132
1
#2
2DF-13761-00-00
Injector
$97.34¢48 668
1
#3
68V-1416A-00-00
O-Ring
$11.96¢5 980
1
#4
2DF-13930-00-00
PIPE INLET ASSEMBLY
$297.72¢148 862
1
#5
2DF-13716-00-00
Collar
$6.03¢3 013
1
#6
8FP-13556-10-00
Gasket, Manifold
$6.51¢3 254
1
#7
98502-06045-00
SCREW, PAN HEAD
$0.67¢333
1
#8
98502-06016-00
. Screw, Pan Head
$3.38¢1 691
1
#9
5C7-13906-00-00
REGULATOR, PRESSURE
$206.48¢103 241
1
#10
5S7-13769-00-00
O-RING
$33.72¢16 859
1
#11
2DF-14291-00-00
BRACKET 1
$12.89¢6 446
1
#12
91312-05014-00
BOLT
$3.00¢1 501
1
#13
2DF-13586-00-00
JOINT, CARBURETOR 1
$61.59¢30 797
1
#14
2DF-13596-00-00
JOINT, CARBURETOR 2
$61.59¢30 797
1
#15
2DF-14457-00-00
SEAL
$17.15¢8 573
1
#16
2DF-14467-00-00
SEAL
$14.62¢7 308
1
#17
90110-06348-00
BOLT, HEXAGON SOCKET (replaces 90110-06347-00)
$3.21¢1 604
1
#18
90450-62004-00
HOSE CLAMP ASSY
$15.54¢7 768
1
#19
2DF-13750-01-00
THROTTLE BODY ASSY
$354.07¢177 037
1
#20
2DF-14452-00-00
SEAL
$10.87¢5 434
1
#21
91312-06050-00
BOLT
$4.28¢2 139
1
#22
2DF-24315-00-00
PIPE 5
$16.95¢8 476
1
#23
90467-12003-00
CLIP
$6.83¢3 415
1
#24
2DF-13542-00-00
HOSE, VACUUM SENSING 1
$9.95¢4 974
1
#25
90467-08021-00
CLIP
$6.75¢3 375
1
#26
90467-07093-00
CLIP
$1.94¢972
1
#27
1WS-82380-00-00
Sensor, Pressure
$187.39¢93 696
1
#28
91312-05020-00
BOLT
$2.71¢1 357
1
#29
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#30
2DF-14465-00-00
PIPE
$13.56¢6 779
1
#31
90467-09103-00
Clip
$2.74¢1 368
1
