COWLING 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

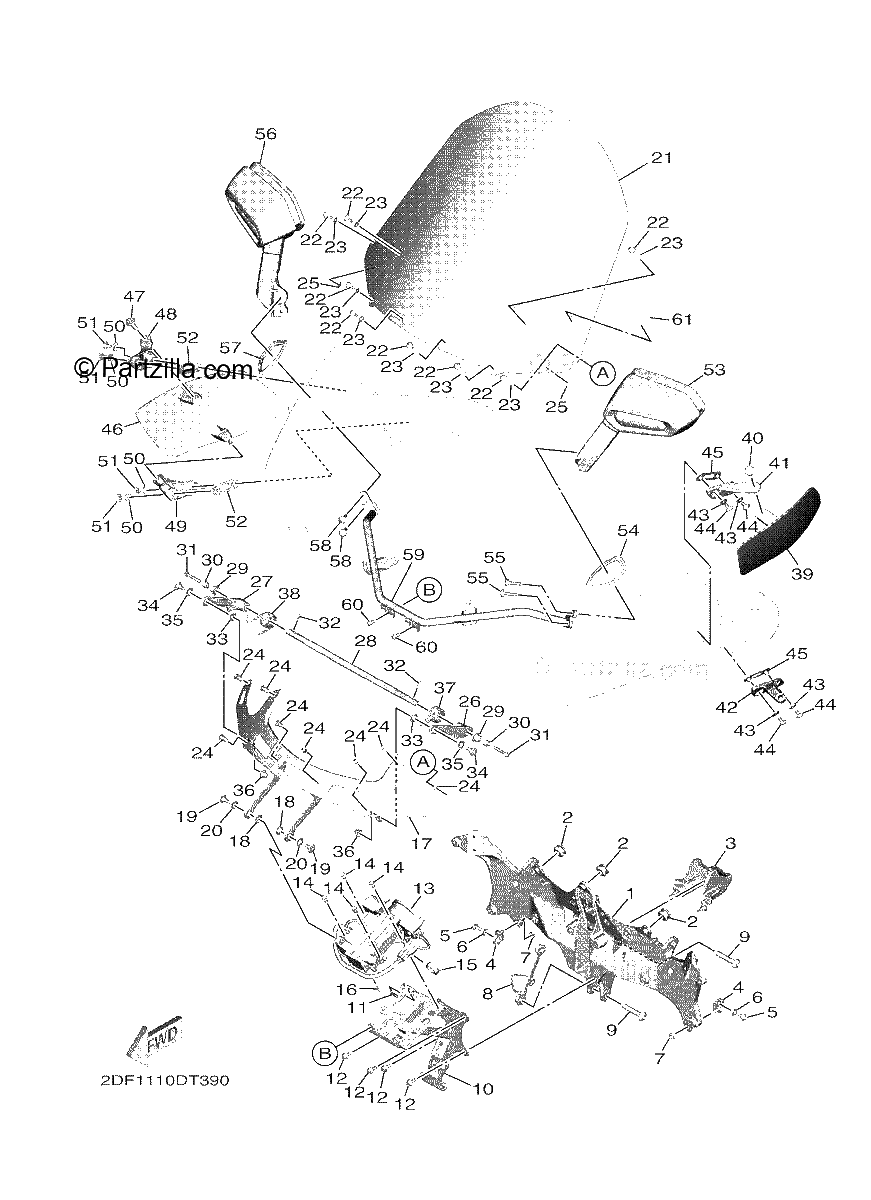

Diagrama de COWLING 3

Repuestos

#1
2DF-28356-00-00
STAY 1
$542.17¢271 088
1
#2
90480-09M21-00
Grommet
$6.47¢3 238
1
#3
2DF-28239-01-00
COVER 3
$18.16¢9 081
1
#4
2DF-2831U-00-00
STAY, SIDE 1
$5.06¢2 531
1
#5
90110-06108-00
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
1
#6
90201-06045-00
WASHER, PLATE
$7.35¢3 675
1
#7
90179-06075-00
Nut
$0.94¢469
1
#8
2DF-28336-00-00
PLATE
$22.25¢11 125
1
#9
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$6.14¢3 069
1
#10
2DF-28332-00-00
STAY, LEG SHIELD
$106.76¢53 381
1
#11
1UF-15379-00-00
SEAL
$7.72¢3 863
1
#12
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.28¢138
1
#13
2DF-83306-00-00
DRIVE UNIT ASSY
$569.08¢284 538
1
#14
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#15
90464-20181-00
CLAMP
$3.44¢1 719
1
#16
90465-10098-00
CLAMP
$2.78¢1 388
1
#17
2DF-28322-00-00
STAY 2
$166.35¢83 175
1
#18
5JW-28329-00-00
SPACER
$7.70¢3 850
1
#19
2DF-28374-10-00
BOLT, COWLING
$3.67¢1 838
1
#20
90202-10044-00
WASHER, PLATE (655)
$2.44¢1 219
1
#21
2DF-28381-00-00
Windshield
$618.86¢309 431
1
#22
90111-05051-00
BOLT,HEX. SOCKET BUT (replaces 90111-05055-00)
$1.47¢737
1
#23
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#24
90179-05523-00
NUT
$6.78¢3 388
1
#25
90520-01001-00
DAMPER, PLATE
$7.71¢3 856
1
#26
2DF-2833C-00-00
LINK 1
$38.81¢19 406
1
#27
2DF-2833D-00-00
LINK 2
$35.74¢17 869
1
#28
2DF-2833P-00-00
LINK 3
$49.85¢24 925
1
#29
90381-12003-00
BUSH, SOLID
$3.43¢1 713
1
#30
90387-06330-00
Collar
$7.64¢3 819
1
#31
95024-06030-00
BOLT,FLANGE
$7.34¢3 669
1
#32
91690-30012-00
PIN,SPRING
$6.08¢3 038
1
#33
5JW-28329-00-00
SPACER
$7.70¢3 850
1
#34
2DF-28374-10-00
BOLT, COWLING
$3.67¢1 838
1
#35
90202-10044-00
WASHER, PLATE (655)
$2.44¢1 219
1
#36
90176-06082-00
NUT,CROWN
$3.50¢1 750
1
#37
90508-35020-00
Spring, Torsion
$6.51¢3 256
1
#38
90508-35018-00
Spring, Torsion
$6.51¢3 256
1
#39
2DF-2830C-00-00
VISOR, SIDE 1
$123.88¢61 938
1
#40
90269-10006-00
RIVET
$1.47¢737
1
#41
2DF-28366-00-00
Bracket
$34.71¢17 356
1
#42
2DF-2833H-00-00
BRACKET 11
$33.31¢16 656
1
#43
90201-064J1-00
WASHER, PLATE
$4.16¢2 081
1
#44
90111-06101-00
BOLT,HEX. SOCKET BUT
$7.49¢3 744
1
#45
2DF-2836J-00-00
BRACKET 6
$7.46¢3 731
1
#46
2DF-2830D-00-00
VISOR, SIDE 2
$123.88¢61 938
1
#47
90269-10006-00
RIVET
$1.47¢737
1
#48
2DF-28367-00-00
Bracket
$33.16¢16 581
1
#49
2DF-2833J-00-00
BRACKET 12
$33.31¢16 656
1
#50
90201-064J1-00
WASHER, PLATE
$4.16¢2 081
1
#51
90111-06101-00
BOLT,HEX. SOCKET BUT
$7.49¢3 744
1
#52
2DF-2836J-00-00
BRACKET 6
$7.46¢3 731
1
#53
2DF-26280-00-P2
REAR VIEW MIRROR ASSY (LEFT)
$295.29¢147 644
1
#54
2DF-2628N-00-00
BASE, MIRROR (LEFT)
$8.01¢4 006
1
#55
90109-06031-00
bolt
$2.29¢1 144
1
#56
2DF-26290-00-P2
REAR VIEW MIRROR ASSY (RIGHT)
$247.78¢123 888
1
#57
2DF-2628R-00-00
BASE, MIRROR (RIGHT)
$5.00¢2 500
1
#58
90109-06031-00
bolt
$2.29¢1 144
1
#59
2DF-2831W-00-00
STAY, MIRROR 1
$137.10¢68 550
1
#60
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#61
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
