ELECTRICAL 4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

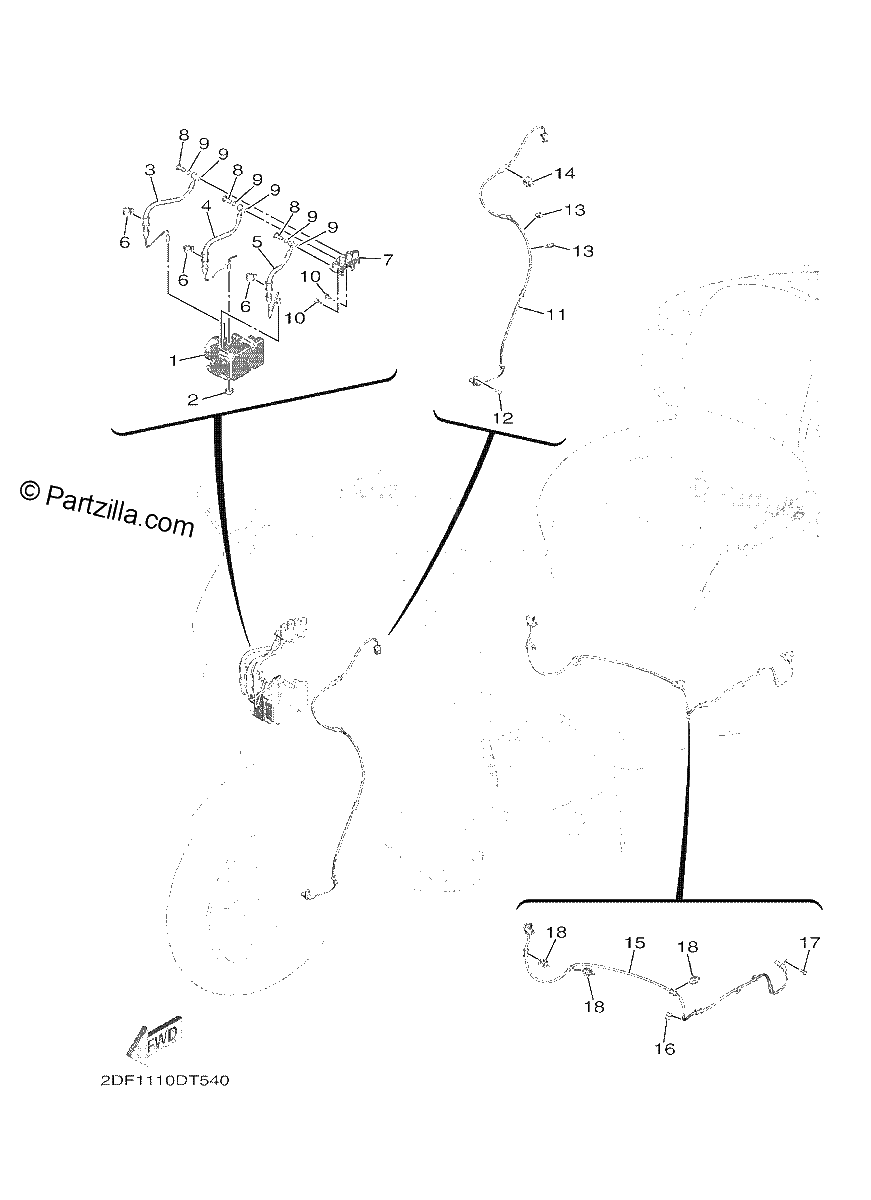

Diagrama de ELECTRICAL 4

Repuestos

#1
2DF-85930-09-00
HYDRAULIC UNIT ASSY
$1662.49¢831 244
1
#2
2CR-85916-00-00
CAP, DAMPER
$4.40¢2 200
1
#3
2DF-25882-00-00
PIPE, BRAKE 2
$59.24¢29 619
1
#4
2DF-2588A-00-00
PIPE, BRAKE 4
$58.89¢29 444
1
#5
2DF-25883-00-00
PIPE, BRAKE 3
$57.65¢28 825
1
#6
90464-16006-00
CLAMP
$9.91¢4 956
1
#7
2DF-25885-00-00
JOINT
$59.49¢29 744
1
#8
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#9
90430-10005-00
GASKET
$8.39¢4 194
1
#10
95D37-06014-00
BOLT, FLANGE DEEP RECESS
$0.41¢206
1
#11
2DF-85970-01-00
WHEEL SENSOR ASSY, FRONT
$167.91¢83 956
1
#12
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#13
90464-12013-00
Clamp
$7.84¢3 919
1
#14
90464-08011-00
CLAMP
$1.54¢769
1
#15
2DF-85980-01-00
WHEEL SENSOR ASSY, REAR
$234.60¢117 300
1
#16
90468-15139-00
Clip
$6.88¢3 438
1
#17
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#18
90464-10014-00
CLAMP
$2.20¢1 100
1
