MIDDLE DRIVE GEAR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

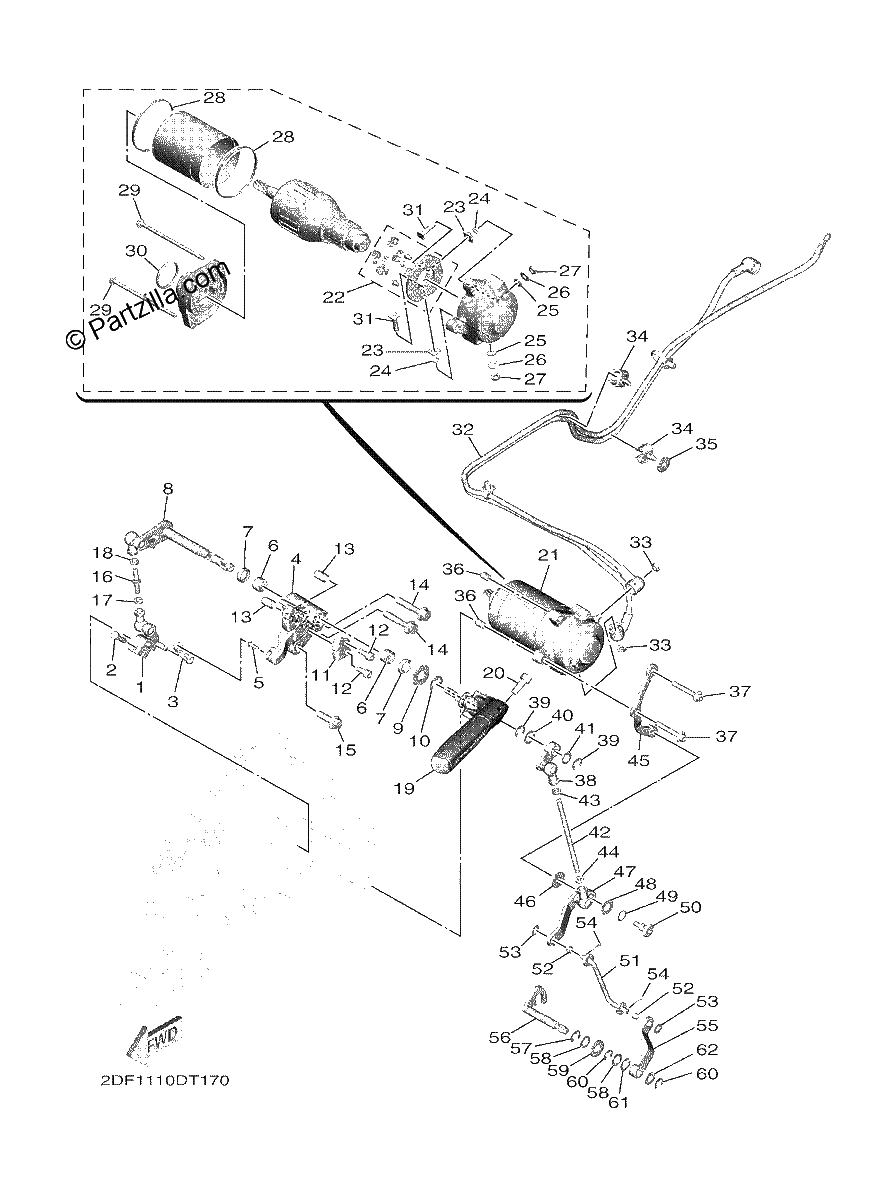

Diagrama de MIDDLE DRIVE GEAR 2

Repuestos

#1
2DF-18169-00-00
ARM, SHIFT 2
$46.54¢23 270
1
#2
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#3
90506-18026-00
Spring, Tension
$4.09¢2 047
1
#4
2DF-18381-00-00
BRACKET, SHIFTE
$45.16¢22 580
1
#5
2DF-16346-00-00
Hook, Spring
$0.89¢443
1
#6
93317-11295-00
BEARING
$43.91¢21 954
1
#7
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#8
2DF-18341-00-00
SHAFT, RINK
$47.86¢23 931
1
#9
90201-12575-00
WASHER, PLATE
$6.75¢3 375
1
#10
99002-10600-00
CIRCLIP
$6.88¢3 439
1
#11
2DF-17665-00-00
PLATE 1
$15.09¢7 544
1
#12
90110-06004-00
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 858
1
#13
99530-10116-00
PIN, DOWEL
$3.68¢1 840
1
#14
95817-08040-00
BOLT, FLANGE
$6.15¢3 076
1
#15
95817-08025-00
BOLT, FLANGE
$6.75¢3 375
1
#16
5XT-18115-10-00
ROD, SHIFT
$42.27¢21 137
1
#17
90170-06022-00
Nut
$3.21¢1 604
1
#18
95317-06700-00
NUT(JN5)
$7.31¢3 657
1
#19
2DF-18190-00-00
LEVER COMP. 1
$348.00¢174 001
1
#20
91317-08020-00
BOLT
$2.56¢1 282
1
#21
2DF-81101-00-00
MOTOR ASSY
$1154.46¢577 231
1
#22
2DF-81801-00-00
BRUSH SET
$82.43¢41 216
1
#23
2S3-8182G-00-00
BUSH, TERMINAL
$5.72¢2 858
1
#24
93210-06422-00
O-Ring
$7.30¢3 651
1
#25
8FA-8181L-00-00
WASHER, PLAIN
$4.66¢2 329
1
#26
1D7-81835-00-00
WASHER
$1.69¢845
1
#27
95302-06700-00
NUT, HEXAGON
$6.75¢3 375
1
#28
1D7-81861-00-00
GASKET
$13.70¢6 848
1
#29
8FA-81846-01-00
SCREW
$6.01¢3 007
1
#30
93210-25711-00
O-Ring
$6.55¢3 278
1
#31
2S3-81828-00-00
BOLT 2
$4.47¢2 237
1
#32
2DF-8183G-11-00
CORD COMP.
$90.48¢45 241
1
#33
95302-06700-00
NUT, HEXAGON
$6.75¢3 375
1
#34
90464-09130-00
CLAMP
$1.44¢719
1
#35
90201-06021-00
WASHER, PLATE
$0.85¢426
1
#36
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#37
90110-06406-00
BOLT, HEXAGON SOCKET HEAD
$1.69¢845
1
#38
2DF-18691-00-00
PLATE, 1
$37.64¢18 820
1
#39
99002-08600-00
. CIRCLIP
$6.75¢3 375
1
#40
90201-12163-00
WASHER, PLATE
$3.84¢1 920
1
#41
90201-10029-00
WASHER, PLATE
$6.88¢3 439
1
#42
2DF-18318-00-00
SHAFT, SHIFTER
$16.33¢8 165
1
#43
95317-06700-00
NUT(JN5)
$7.31¢3 657
1
#44
90170-06022-00
Nut
$3.21¢1 604
1
#45
2DF-18128-00-00
Bracket
$28.75¢14 375
1
#46
90201-06M94-00
WASHER, PLATE
$5.84¢2 921
1
#47
2DF-18692-00-00
PLATE, 2
$53.13¢26 565
1
#48
90201-10079-00
WASHER, plate
$4.40¢2 202
1
#49
90206-10001-00
WASHER, WAVE
$0.38¢190
1
#50
2DF-27434-00-00
BOLT This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#51
2DF-18319-00-00
Shaft 2
$33.99¢16 997
1
#52
90380-06002-00
BUSH, SOLID
$1.32¢661
1
#53
92907-06200-00
WASHER
$6.76¢3 381
1
#54
91402-20012-00
PIN, COTTER
$2.02¢1 012
1
#55
2DF-18693-00-00
PLATE, 3
$30.30¢15 151
1
#56
2DF-1812E-00-00
SHAFT, STOPPER
$45.98¢22 988
1
#57
99002-08600-00
. CIRCLIP
$6.75¢3 375
1
#58
90201-10029-00
WASHER, PLATE
$6.88¢3 439
1
#59
92907-10200-00
WASHER, PLAIN
$3.92¢1 961
1
#60
99002-07600-00
CIRCLIP
$3.31¢1 656
1
#61
90206-10M24-00
WASHER, WAVE
$4.83¢2 415
1
#62
90201-08089-00
WASHER, PLATE
$2.44¢1 219
1
