FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

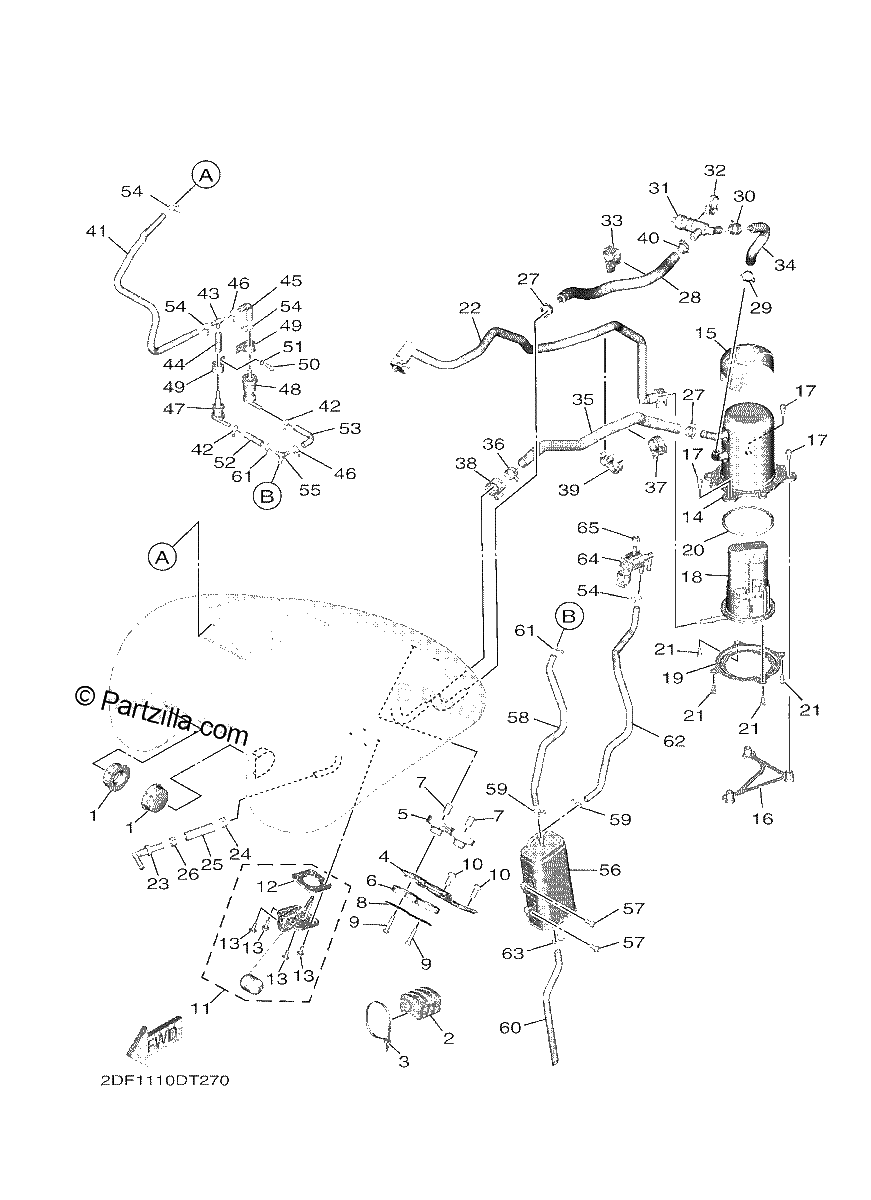

Diagrama de FUEL TANK 2

Repuestos

#1
2YK-24181-10-00
DAMPER, locating 1
$6.00¢3 001
1
#2
2DF-24183-00-00
DAMPER, LOCATING 3
$14.13¢7 067
1
#3
90464-80002-00
CLAMP
$5.65¢2 823
1
#4
2DF-2413Y-00-00
BRACKET, TANK FITTING
$16.65¢8 326
1
#5
2DF-24181-00-00
DAMPER, locating 1
$12.18¢6 089
1
#6
2DF-24182-00-00
DAMPER, locating 2
$8.76¢4 382
1
#7
90387-06553-00
Collar
$7.81¢3 904
1
#8
2DF-24186-00-00
WASHER, special
$4.23¢2 116
1
#9
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#10
92012-08016-00
BOLT, BUTTON HEAD
$7.65¢3 824
1
#11
2DF-85701-01-00
SENDER ASSY
$114.49¢57 247
1
#12
5G3-85753-00-00
GASKET, SENDER UNIT
$16.53¢8 263
1
#13
90119-05071-00
BOLT, WITH WASHER
$7.15¢3 577
1
#14
2DF-244A0-00-00
PUMP CASE COMP.
$336.08¢168 038
1
#15
2DF-24185-01-00
DAMPER, LOCATING 5
$3.79¢1 897
1
#16
2DF-2412F-00-00
Bracket, Seat
$27.19¢13 593
1
#17
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#18
2DF-13907-00-00
FUEL PUMP COMP.
$359.32¢179 659
1
#19
2DF-24491-00-00
Bracket, Fuel Pump
$16.90¢8 452
1
#20
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#21
91312-05010-00
BOLT
$5.39¢2 697
1
#22
2DF-13971-01-00
PIPE, FUEL 1
$166.00¢83 001
1
#23
2DF-24461-00-00
PIPE, JOINT
$16.30¢8 148
1
#24
90467-150A6-00
CLIP
$5.65¢2 823
1
#25
2DF-24314-01-00
PIPE 4
$6.84¢3 421
1
#26
90467-150A6-00
CLIP
$5.65¢2 823
1
#27
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#28
2DF-24311-00-00
PIPE, FUEL 1
$29.96¢14 979
1
#29
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#30
90467-160A2-00
CLIP
$4.77¢2 386
1
#31
1D7-24305-00-00
FUEL PIPE JOINT COMP. 2
$147.04¢73 520
1
#32
90464-20010-00
CLAMP
$2.37¢1 185
1
#33
90464-20237-00
Clamp
$2.02¢1 012
1
#34
2DF-24312-00-00
PIPE 2
$17.28¢8 642
1
#35
2DF-24313-00-00
PIPE 3
$48.90¢24 449
1
#36
90467-160A2-00
CLIP
$4.77¢2 386
1
#37
90464-20016-00
CLAMP
$5.89¢2 944
1
#38
5JW-14723-00-00
COVER 1
$17.82¢8 913
1
#39
90464-19001-00
CLAMP
$1.81¢903
1
#40
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#41
2DF-24316-00-00
PIPE 6
$31.31¢15 657
1
#42
90467-09103-00
Clip
$2.74¢1 368
1
#43
90413-07007-00
WAY 3
$9.37¢4 686
1
#44
5UX-24311-00-00
PIPE, FUEL 1
$4.00¢2 001
1
#45
5YU-24314-00-00
PIPE 4
$13.59¢6 797
1
#46
90467-09103-00
Clip
$2.74¢1 368
1
#47
3UH-24180-00-00
ROLL OVER VLV ASSY
$39.92¢19 958
1
#48
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#49
90464-15014-00
Clamp
$2.16¢1 081
1
#50
92012-05014-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#51
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#52
5UX-24311-00-00
PIPE, FUEL 1
$4.00¢2 001
1
#53
2DF-24322-00-00
PIPE 11
$6.15¢3 076
1
#54
90467-09103-00
Clip
$2.74¢1 368
1
#55
90413-06002-00
WAY 3
$21.08¢10 540
1
#56
2DF-24170-00-00
CANISTER ASSY
$199.77¢99 883
1
#57
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#58
2DF-24323-00-00
PIPE 12
$21.61¢10 804
1
#59
90467-09103-00
Clip
$2.74¢1 368
1
#60
2DF-24324-00-00
PIPE 13
$6.64¢3 318
1
#61
90467-09103-00
Clip
$2.74¢1 368
1
#62
2DF-24325-00-00
PIPE 14
$31.08¢15 542
1
#63
90467-11106-00
Clip
$2.99¢1 495
1
#64
BG4-86120-00-00
Solenoid Valve Assy
$46.10¢23 052
1
#65
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
