EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

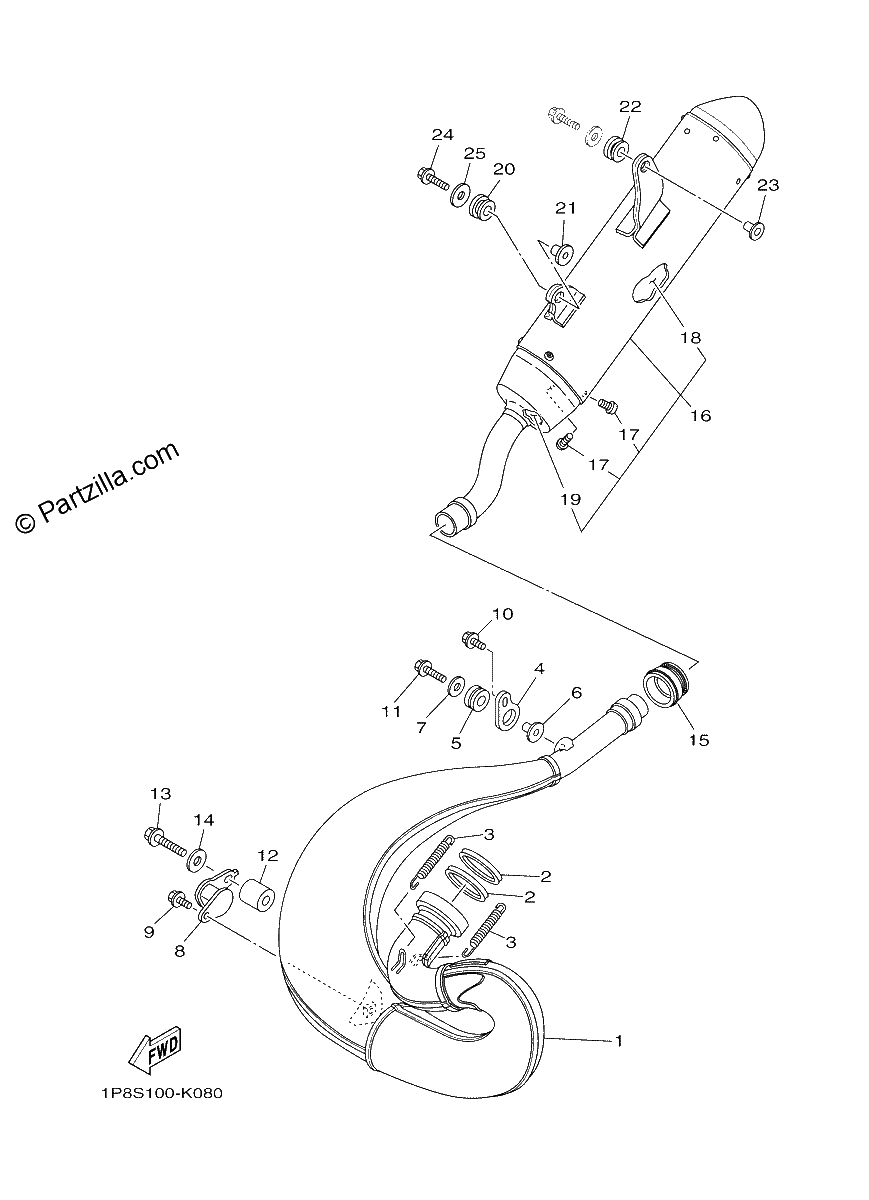

Diagrama de EXHAUST

Repuestos

#1
1P8-14610-00-00
EXHAUST PIPE ASSY 1
$582.98¢291 491
1
#2
5MW-14642-00-00
SEAL, EXHAUST
$17.39¢8 694
1
#3
90507-20052-00
SPRING, TENSION
$4.61¢2 306
1
#4
5CU-14771-01-00
STAY, MUFFLER 1
$31.13¢15 565
1
#5
90480-16561-00
GROMMET
$16.09¢8 044
1
#6
90387-063G3-00
COLLAR (56R)
$6.88¢3 439
1
#7
90201-06033-00
WASHER, PLATE
$3.00¢1 501
1
#8
5XF-14781-00-00
STAY, MUFFLER 2
$24.97¢12 483
1
#9
90119-06133-00
BOLT, WITH WASHER
$5.16¢2 582
1
#10
90119-06133-00
BOLT, WITH WASHER
$5.16¢2 582
1
#11
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#12
90387-08030-00
COLLAR
$9.52¢4 761
1
#13
90105-08136-00
BOLT, FLANGE
$6.75¢3 375
1
#14
90201-08049-00
WASHER, PLATE
$7.06¢3 530
1
#15
3JE-14615-01-00
JOINT, EXHAUST 1
$53.45¢26 726
1
#16
1P8-14753-00-00
SILENCER, EXHAUST
$776.69¢388 343
1
#17
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#18
1P8-1469A-00-00
FIBER
$225.91¢112 953
1
#19
1P8-1469E-00-00
FIBER
$4.00¢2 001
1
#20
90480-17004-00
GROMMET
$7.59¢3 795
1
#21
90387-06121-00
COLLAR
$8.69¢4 347
1
#22
90480-16404-00
GROMMET
$6.75¢3 375
1
#23
90387-06039-00
COLLAR
$7.87¢3 933
1
#24
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#25
90201-06086-00
WASHER, PLATE
$6.43¢3 214
1
