CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

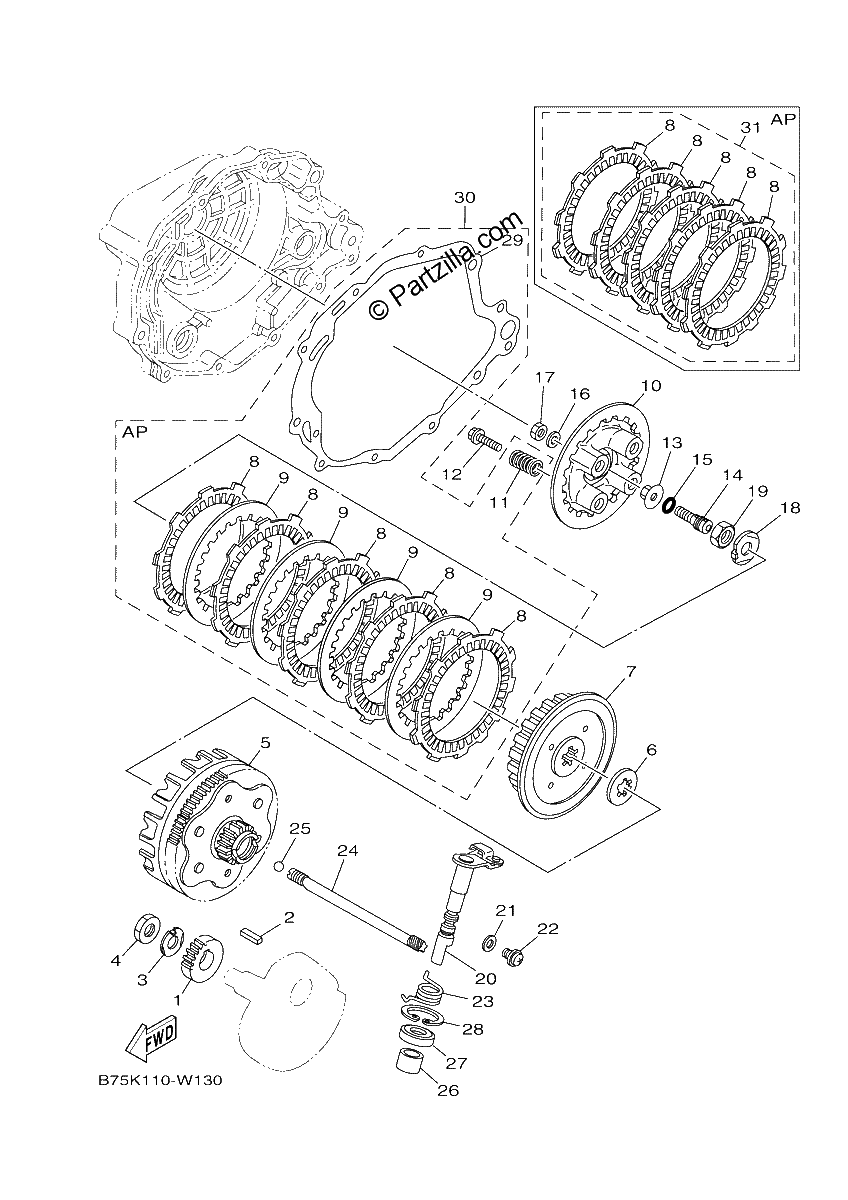

Diagrama de CLUTCH

Repuestos

#1
5H0-16111-00-00
GEAR,PRI DRIVE
$47.58¢23 788
1
#2
90282-05043-00
KEY,STRAIGHT
$10.18¢5 088
1
#3
90215-14205-00
WASHER,LOCK
$7.34¢3 669
1
#4
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#5
15A-16150-00-00
PRI DRVN GEAR
$586.19¢293 094
1
#6
5H0-16154-00-00
PLATE,THRUST 1
$24.15¢12 075
1
#7
2JX-16371-00-00
BOSS, CLUTCH
$119.38¢59 688
1
#8
537-16321-00-00
PLATE,FRICTION
$17.96¢8 981
1
#9
137-16324-00-00
PLATE, CLUTCH 1
$20.86¢10 431
1
#10
5H0-16351-00-00
PLATE,PRESSURE 1
$45.59¢22 794
1
#11
90501-23700-00
SPRING,COMPRESSION
$6.76¢3 381
1
#12
90159-05011-00
SCREW,WITH WASHER
$2.91¢1 456
1
#13
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#14
2JX-16356-00-00
ROD, PUSH 1
$41.00¢20 500
1
#15
93210-48364-00
O-Ring
$6.25¢3 125
1
#16
92907-06200-00
WASHER
$7.35¢3 675
1
#17
95307-06600-00
NUT
$3.21¢1 606
1
#18
90215-14186-00
WASHER,LOCK
$9.31¢4 656
1
#19
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#20
15A-16380-00-00
PUSH LEVER ASY
$67.28¢33 638
1
#21
90430-08119-00
GASKET
$6.91¢3 456
1
#22
90149-08067-00
SCREW,SPEC'L SHAPE
$5.41¢2 706
1
#23
90508-18537-00
SPRING,TORSION
$7.48¢3 738
1
#24
5H0-16357-00-00
ROD,PUSH 2
$38.86¢19 431
1
#25
93505-16006-00
BALL 5/16
$2.73¢1 363
1
#26
90386-14103-00
BUSH,SPEC'L NYLON
$11.44¢5 719
1
#27
93102-14209-00
OIL SEAL,SD-TYPE
$11.63¢5 813
1
#28
93420-28055-00
CIRCLIP,R-TYPE
$8.21¢4 106
1
#29
4BE-15462-00-00
GASKET,CRCS CVR 3
$35.19¢17 594
1
#30
B75-W001G-00-00
CLUTCH PLATE KIT
$122.40¢61 200
1
#31
B75-W001M-00-00
FRICTION PLATE KIT
$49.34¢24 669
1
