FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

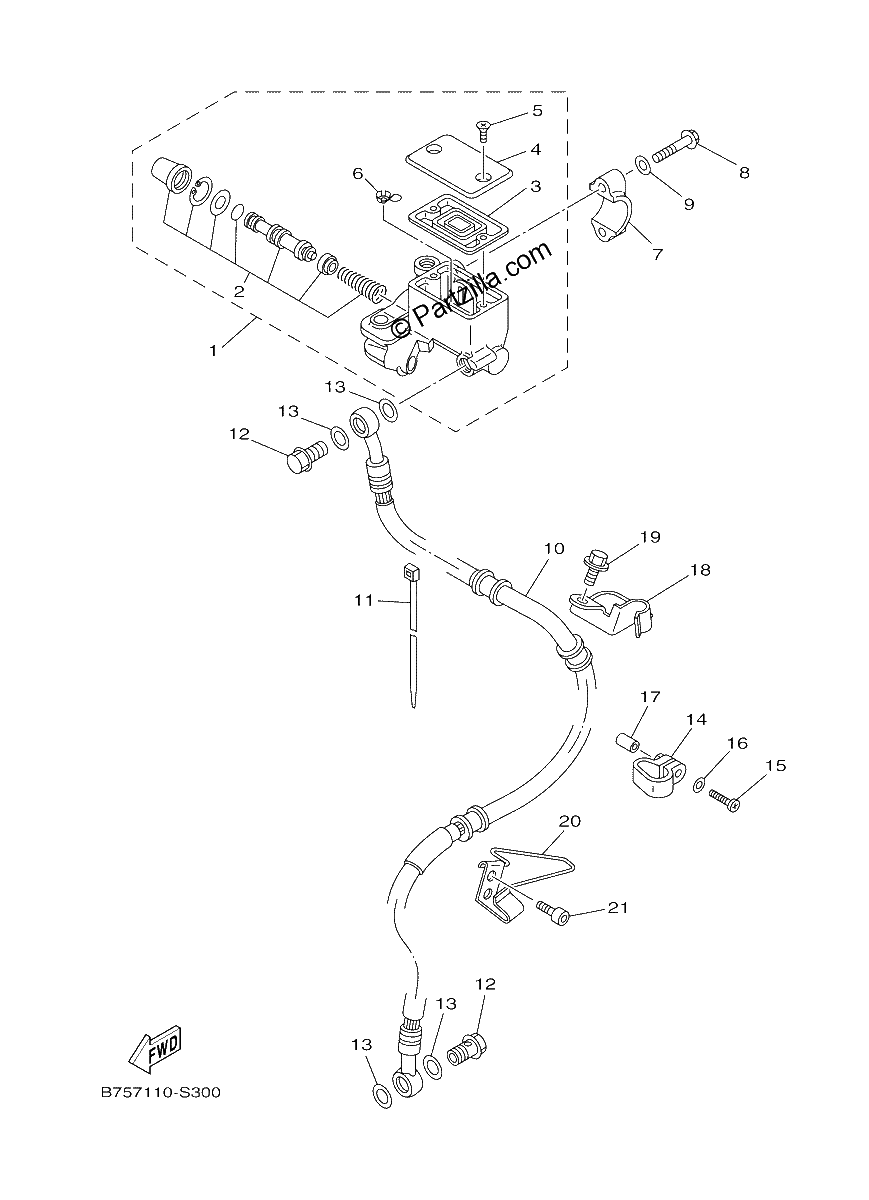

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
5RS-25870-02-00
MASTER CYLINDER SUB ASSY
$161.98¢80 988
1
#2
5CG-W0041-00-00
CYLINDER KIT, MASTER
$44.79¢22 394
1
#3
5RB-25854-00-00
DIAPHRAGM, RESERVOIR
$6.14¢3 069
1
#4
4GY-25852-01-00
CAP, RESERVOIR
$44.96¢22 481
1
#5
36Y-2589H-00-00
. SCREW
$1.71¢856
1
#6
3RW-25889-00-00
SEPARATOR
$7.60¢3 800
1
#7
3RW-25867-00-00
BRACKET, MASTER CYLINDER
$29.36¢14 681
1
#8
97007-06025-00
BOLT
$3.55¢1 775
1
#9
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#10
5RS-25872-00-00
HOSE, BRAKE 1
$115.41¢57 706
1
#11
1UA-82591-00-00
BAND
$4.91¢2 456
1
#12
90401-10159-00
BOLT, UNION
$10.54¢5 269
1
#13
90201-10118-00
WASHER, PLATE
$3.44¢1 719
1
#14
3TB-23467-01-00
CLAMP
$6.42¢3 213
1
#15
98507-04018-00
SCREW, PAN HEAD
$1.46¢731
1
#16
92907-04600-00
WASHER
$1.46¢731
1
#17
90445-057G5-00
HOSE (L10)
$7.34¢3 669
1
#18
5RS-25886-00-00
HOLDER, BRAKE HOSE
$23.45¢11 725
1
#19
95807-06012-00
BOLT, FLANGE
$1.79¢894
1
#20
34X-25876-00-00
HOLDER, BRAKE HOSE 2
$18.71¢9 356
1
#21
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
