REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

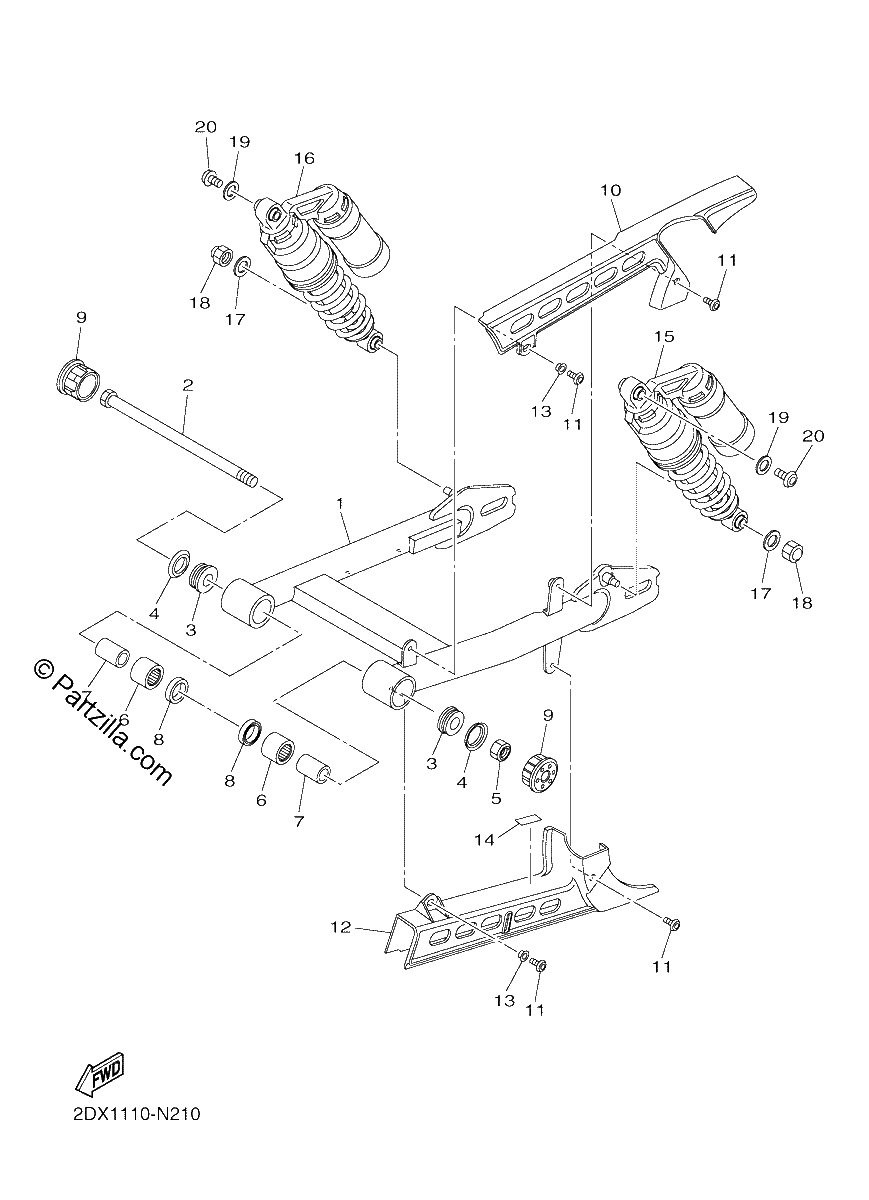

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
1TP-22110-00-00
REAR ARM COMP.
$760.49¢380 247
1
#2
1TP-22141-00-00
SHAFT, PIVOT
$213.38¢106 691
1
#3
90387-16030-00
COLLAR
$16.19¢8 096
1
#4
93108-44001-00
OIL SEAL
$6.53¢3 266
1
#5
95602-16100-00
NUT, U
$23.94¢11 971
1
#6
93317-52897-00
BEARING
$54.19¢27 094
1
#7
90387-16032-00
COLLAR
$24.92¢12 460
1
#8
93109-28001-00
OIL SEAL
$6.57¢3 283
1
#9
1TP-2219X-00-00
COVER
$4.86¢2 432
1
#10
1TP-22311-00-00
CASE, CHAIN
$27.40¢13 702
1
#11
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#12
1TP-22312-00-00
CASE, CHAIN 2
$28.21¢14 105
1
#13
90387-06048-00
Collar
$6.65¢3 323
1
#14
1TP-21668-00-00
LABEL, TIRE
$2.02¢1 012
1
#15
2DX-22210-02-00
SHOCK ABSORBER ASSY, (replaces 2DX-22210-01-00)
$964.84¢482 419
1
#16
2DX-22220-02-00
SHOCK ABSORBER ASSY, REAR
$894.69¢447 344
1
#17
90201-10074-00
WASHER, PLATE
$3.06¢1 529
1
#18
90176-10073-00
NUT, CROWN
$7.51¢3 755
1
#19
90201-08119-00
WASHER, PLATE
$2.12¢1 058
1
#20
90149-08054-00
SCREW
$3.48¢1 742
1
