TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

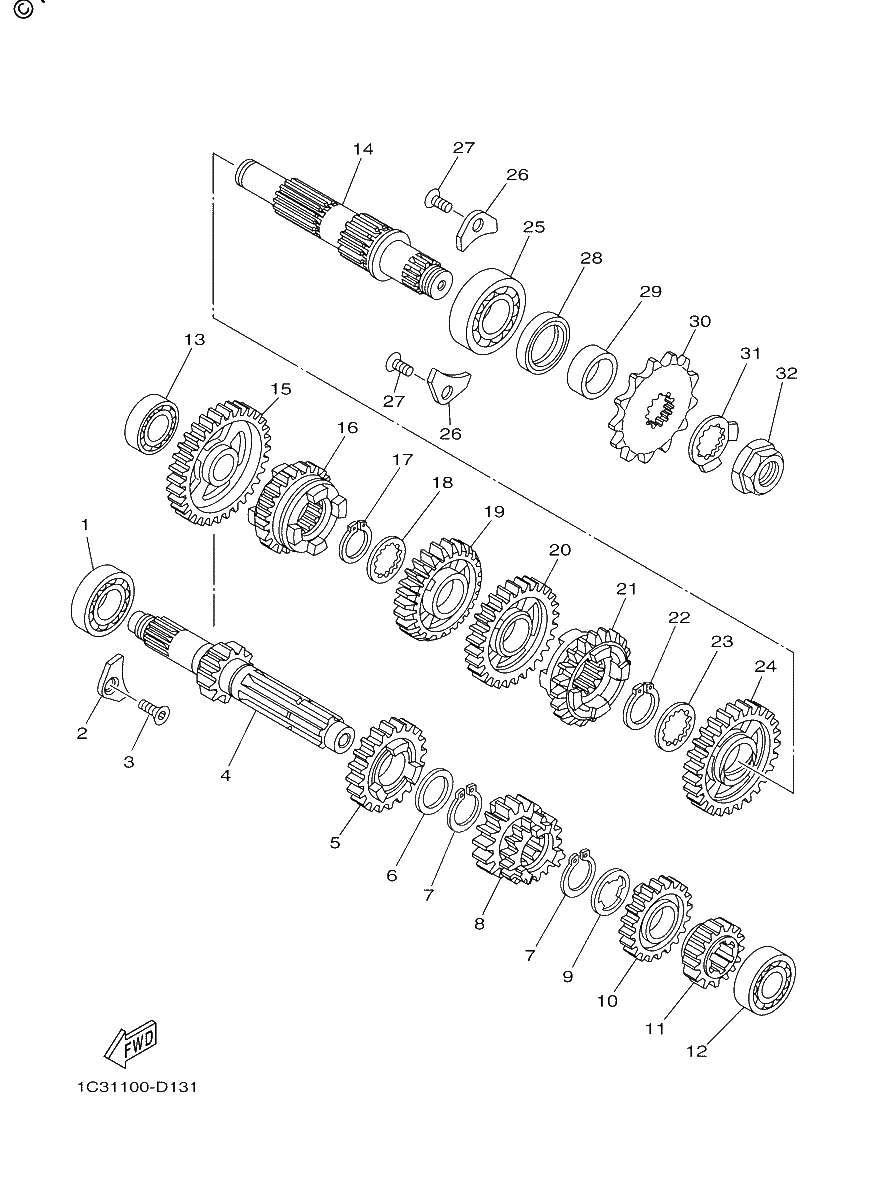

Diagrama de TRANSMISSION

Repuestos

#1
93306-00442-00
BEARING
$41.89¢20 944
1
#2
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#3
90149-06074-00
SCREW
$7.60¢3 800
1
#4
1C3-17411-10-00
AXLE, MAIN (13T)
$257.36¢128 681
1
#5
1C3-17161-10-00
GEAR, 6TH PINION (21T)
$67.40¢33 700
1
#6
90201-22555-00
WASHER, PLATE
$7.94¢3 969
1
#7
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#8
1C3-17131-10-00
GEAR, 3RD PINION (17T/17T)
$161.88¢80 938
1
#9
90209-18135-00
WASHER
$9.24¢4 619
1
#10
1C3-17151-10-00
GEAR, 5TH PINION (20T)
$81.97¢40 988
1
#11
1C3-17121-10-00
GEAR, 2ND PINION (15T)
$53.20¢26 600
1
#12
93306-20351-00
BEARING
$40.65¢20 325
1
#13
93306-00326-00
BEARING
$38.46¢19 231
1
#14
1C3-17421-00-00
AXLE, DRIVE
$196.57¢98 288
1
#15
1C3-17211-10-00
GEAR, 1ST WHEEL (31T)
$126.00¢63 000
1
#16
1C3-17261-10-00
GEAR, 6TH WHEEL (23T)
$129.71¢64 856
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#18
90209-20008-00
WASHER
$10.21¢5 106
1
#19
1C3-17241-10-00
GEAR, 4TH WHEEL (23T)
$97.14¢48 569
1
#20
1C3-17231-20-00
GEAR, 3RD WHEEL (27T)
$139.24¢69 619
1
#21
1C3-17251-10-00
GEAR, 5TH WHEEL (24T)
$96.45¢48 225
1
#22
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#23
90209-23012-00
WASHER
$5.99¢2 994
1
#24
1C3-17221-10-00
GEAR, 2ND WHEEL (29T)
$134.70¢67 350
1
#25
93306-20447-00
BEARING (replaces 93306-20427-00)
$41.60¢20 800
1
#26
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#27
90149-06074-00
SCREW
$7.60¢3 800
1
#28
93102-28012-00
Oil Seal
$17.48¢8 738
1
#29
90387-22004-00
COLLAR
$39.58¢19 788
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$22.69¢11 344
1
#31
90215-20003-00
Washer, Lock
$7.30¢3 650
1
#32
90179-18001-00
Nut
$16.34¢8 169
1
