CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

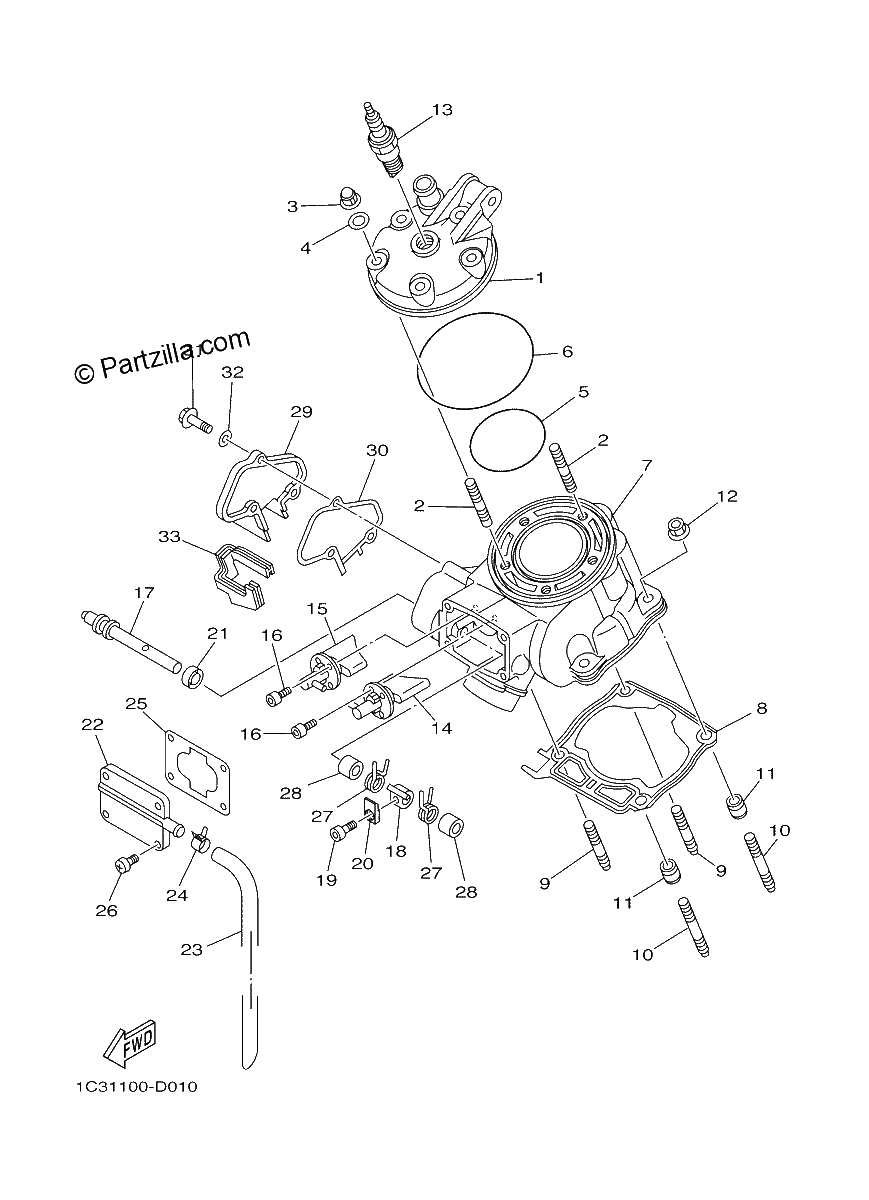

Diagrama de CYLINDER HEAD

Repuestos

#1
1C3-11111-11-00
HEAD, CYLINDER 1
$226.49¢113 246
1
#2
90116-08027-00
BOLT, STUD
$3.93¢1 967
1
#3
90176-08005-00
NUT, CROWN
$2.24¢1 121
1
#4
90201-080L8-00
WASHER, PLATE
$3.07¢1 535
1
#5
93210-63442-00
O-Ring
$6.32¢3 162
1
#6
93210-90785-00
O-Ring
$10.05¢5 026
1
#7
1C3-11311-21-00
CYLINDER 1 (replaces 1C3-11311-20-00)
$728.59¢364 297
1
#8
1C3-11351-00-00
Gasket, Cylinder
$19.11¢9 557
1
#9
90116-08031-00
BOLT, stud
$9.12¢4 560
1
#10
90116-08028-00
BOLT, stud
$7.44¢3 720
1
#11
99590-10114-00
PIN, DOWEL
$4.83¢2 415
1
#12
90179-08019-00
Nut
$5.73¢2 864
1
#13
BR9-EIX00-00-00
BR9EIX NGK 4PK (replaces 94702-00193-00)
$16.55¢8 274
1
#14
1C3-1131D-01-00
VALVE ASSY (replaces 1C3-1131D-00-00)
$365.94¢182 971
1
#15
1C3-1132D-01-00
VALVE ASSY 2 (replaces 1C3-1132D-00-00)
$304.01¢152 007
1
#16
91312-05012-00
BOLT (replaces 90110-05032-00)
$2.78¢1 392
1
#17
5HD-1131V-00-00
SHAFT 1
$80.04¢40 020
1
#18
4SS-11832-00-00
LEVER, LINK
$73.94¢36 973
1
#19
91312-04010-00
BOLT, HEXAGON SOCKET HEAD
$7.57¢3 783
1
#20
5UN-11395-00-00
HOLDER
$49.59¢24 794
1
#21
93104-08040-00
OIL SEAL
$13.40¢6 699
1
#22
4SS-1131M-01-00
Cover
$83.95¢41 975
1
#23
4JY-11166-00-00
PIPE,BREATHER 1
$19.56¢9 781
1
#24
90467-13062-00
CLIP
$7.57¢3 783
1
#25
1C3-11354-00-00
Gasket
$4.81¢2 403
1
#26
98902-05016-00
SCREW, BIND
$1.35¢673
1
#27
90508-16134-00
Spring, Torsion
$5.43¢2 714
1
#28
90387-08785-00
Collar
$6.76¢3 381
1
#29
1C3-11992-00-00
HOUSING 2
$63.58¢31 792
1
#30
1C3-11993-00-00
Gasket
$7.81¢3 904
1
#31
97002-05016-00
BOLT
$1.66¢828
1
#32
92902-05600-00
WASHER, PLATE
$0.61¢305
1
#33
1C3-11995-00-00
SEAL, HOUSING
$13.91¢6 958
1
