REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

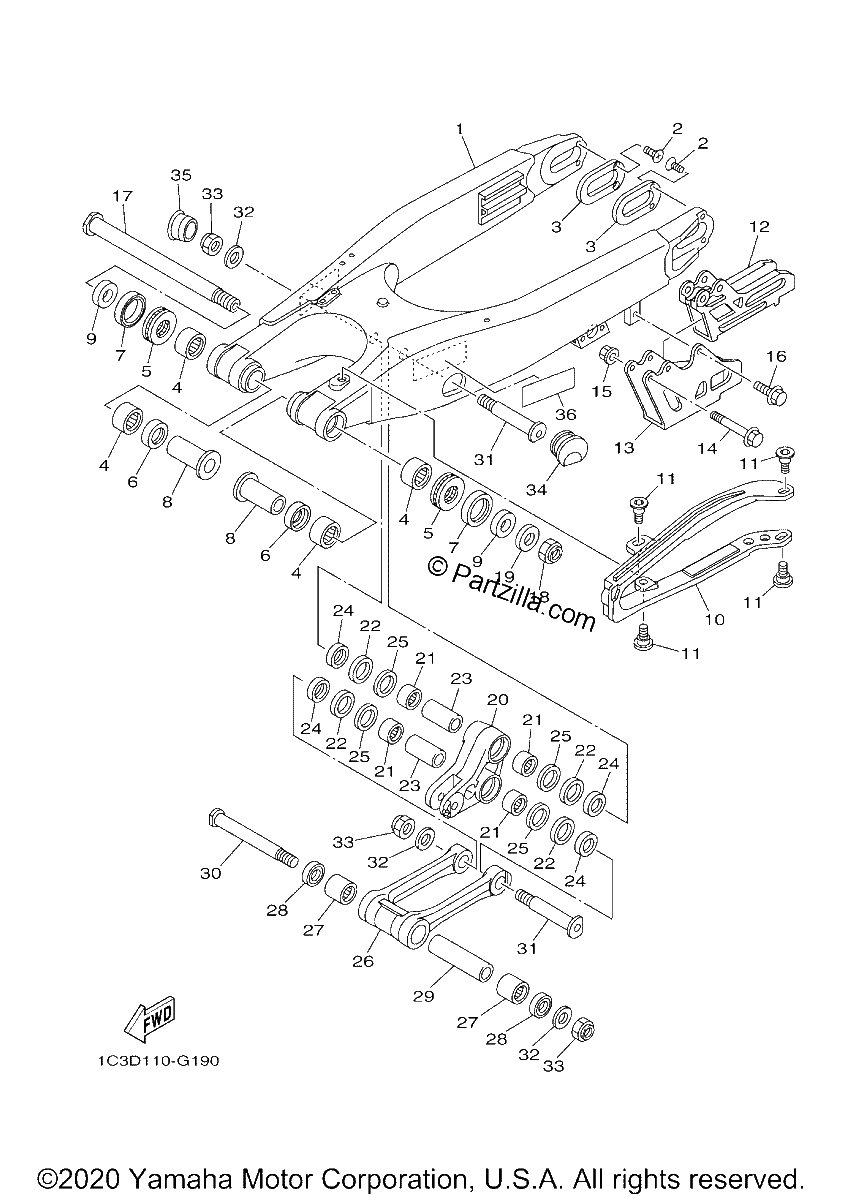

Diagrama de REAR ARM

Repuestos

#1
1C3-22110-A0-00
REAR ARM COMP.
$1146.58¢573 288
1
#2
90151-04004-00
SCREW, COUNTERSUNK (replaces 90151-04003-00)
$2.54¢1 269
1
#3
B1B-22355-00-00
PATCH
$9.55¢4 775
1
#4
93317-22262-00
BEARING
$40.65¢20 325
1
#5
93342-22217-00
BEARING
$43.49¢21 744
1
#6
93106-22002-00
OIL SEAL
$11.10¢5 550
1
#7
93109-28043-00
OIL SEAL,SDO-TYPE
$11.46¢5 731
1
#8
90387-18010-00
Collar
$46.95¢23 475
1
#9
90387-18012-00
Collar
$26.48¢13 238
1
#10
2S2-22151-70-00
SEAL, GUARD
$61.46¢30 731
1
#11
1C3-22969-90-00
SCREW, 1
$6.85¢3 425
1
#12
2S2-22199-70-00
SUPPORT, CHAIN
$71.86¢35 931
1
#13
2S2-22128-70-00
COVER, THRUST 1
$34.04¢17 019
1
#14
95E32-06050-00
BOLT, FLANGE DEEP RECESS
$0.49¢244
1
#15
90179-06028-00
Nut
$4.76¢2 381
1
#16
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#17
1C3-22141-10-00
Shaft, Pivot
$65.34¢32 669
1
#18
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#19
90201-16018-00
WASHER, plate
$7.99¢3 994
1
#20
1C3-2217A-00-00
ARM, RELAY
$260.69¢130 344
1
#21
93315-32166-00
BEARING
$28.40¢14 200
1
#22
93109-25001-00
O-Ring
$11.81¢5 906
1
#23
90387-16025-00
Collar
$37.09¢18 544
1
#24
90209-16011-00
WASHER
$16.30¢8 150
1
#25
90201-21014-00
WASHER, plate
$7.46¢3 731
1
#26
1C3-2217F-50-00
ROD, CONNECTING 1
$284.64¢142 319
1
#27
93315-32166-00
BEARING
$28.40¢14 200
1
#28
93109-21001-00
O-Ring
$11.39¢5 694
1
#29
90387-14016-00
Collar
$32.79¢16 394
1
#30
1C3-22121-00-00
SHAFT 1
$31.55¢15 775
1
#31
1C3-22122-00-00
SHAFT 2
$27.75¢13 875
1
#32
90201-14020-00
WASHER, plate
$6.35¢3 175
1
#33
90185-14010-00
NUT, SELF-LOCKING
$14.06¢7 031
1
#34
1C3-2135F-00-00
Cover
$4.34¢2 169
1
#35
1C3-2139R-00-00
COVER 2
$5.54¢2 769
1
#36
3RV-21668-A0-00
LABEL, TIRE
$4.38¢2 188
1
