CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

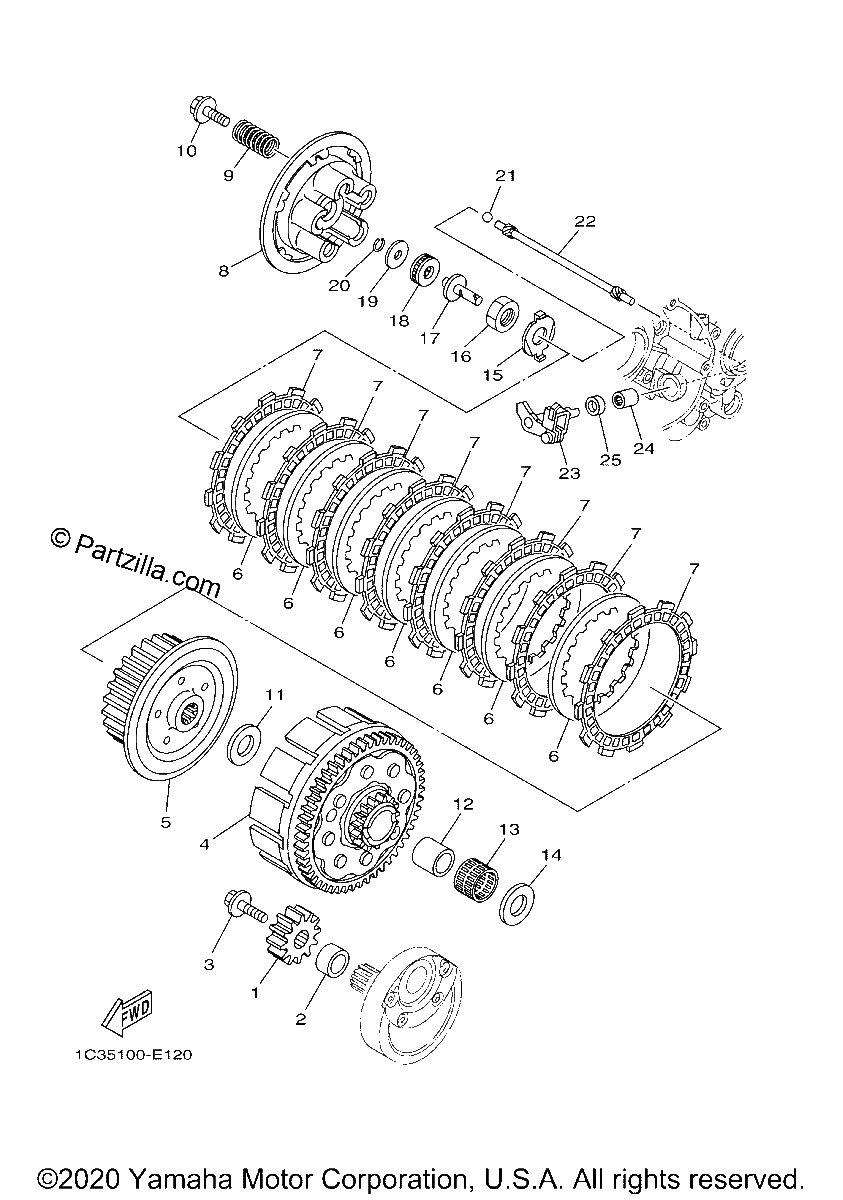

Diagrama de CLUTCH

Repuestos

#1
1C3-16111-00-00
GEAR, PRIMARY DRIVE
$60.04¢30 021
1
#2
90387-172K2-00
Collar
$20.98¢10 488
1
#3
90105-08071-00
Bolt, Flange
$4.63¢2 317
1
#4
1C3-16150-00-00
PRIMARY DRIVEN GEAR
$289.73¢144 866
1
#5
5NY-16371-00-00
BOSS, CLUTCH
$87.63¢43 815
1
#6
3XJ-16324-01-00
PLATE, CLUTCH 1
$13.43¢6 716
1
#7
3XJ-16321-00-00
PLATE, FRICTION
$21.75¢10 873
1
#8
5HD-16351-00-00
PLATE, PRESSURE 1
$51.32¢25 662
1
#9
90501-23598-00
SPRING, COMPRESSION
$6.22¢3 111
1
#10
90159-06016-00
SCREW, WITH WASHER
$3.07¢1 535
1
#11
90201-204K8-00
WASHER, PLATE
$7.99¢3 996
1
#12
1C3-16181-00-00
SPACER 1
$20.22¢10 108
1
#13
93310-22539-00
BEARING
$37.73¢18 866
1
#14
90201-204K8-00
WASHER, PLATE
$7.99¢3 996
1
#15
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#16
90170-16326-00
NUT
$12.06¢6 032
1
#17
5NL-16356-00-00
ROD, PUSH 1
$48.71¢24 357
1
#18
93340-21008-00
BEARING
$26.96¢13 478
1
#19
90201-080H1-00
WASHER, PLATE
$4.20¢2 099
1
#20
93440-07182-00
CIRCLIP
$3.44¢1 719
1
#21
93511-32027-00
BALL
$6.75¢3 375
1
#22
1C3-16357-11-00
ROD, PUSH 2 (replaces 1C3-16357-10-00)
$26.19¢13 093
1
#23
1C3-16380-00-00
PUSH LEVER ASSY
$46.98¢23 489
1
#24
93315-11040-00
BEARING,CYL.(50M)
$36.34¢18 170
1
#25
93102-10008-00
Oil Seal
$5.09¢2 547
1
