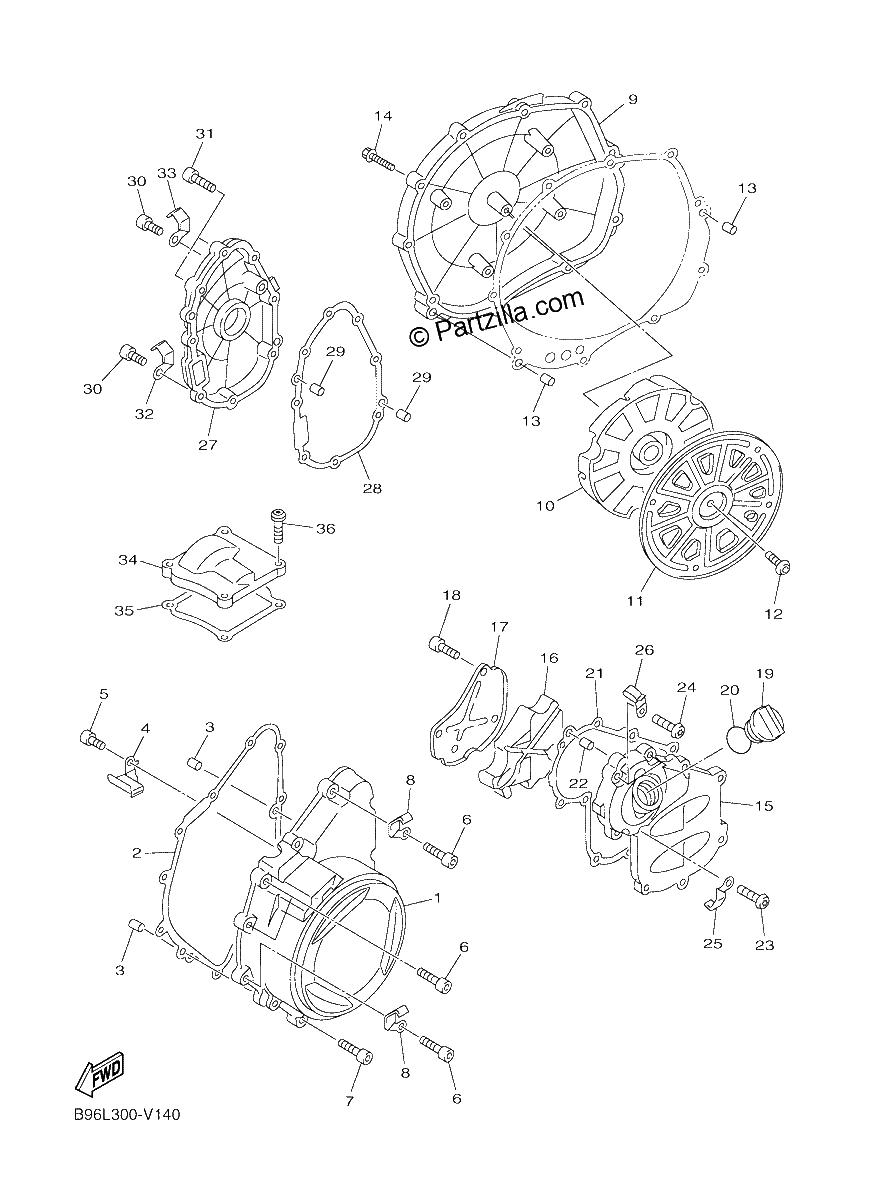

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$220.86¢110 429
#2
GASKET, CRANKCASE COVER 1
$27.76¢13 881
#3
PIN, DOWEL
$5.75¢2 875
#4
CLAMP 2
$12.32¢6 158
#5
BOLT, HEXAGON SOCKET HEAD
$7.58¢3 789
#6
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
#7
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#8
CLAMP
$5.96¢2 978
#9
COVER, CRANKCASE 2
$95.50¢47 748
#10
DAMPER 2
$71.06¢35 529
#11
COVER
$42.85¢21 425
#12
BOLT,HEX. SOCKET BUTTON
$6.76¢3 381
#13
PIN, DOWEL
$1.86¢932
#14
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
#15
COVER, CRANKCASE 3
$94.24¢47 121
#16
DAMPER 1
$39.71¢19 855
#17
COVER, AIR CLEANER
$14.03¢7 015
#18
BOLT
$6.75¢3 375
#19
PLUG, OIL LEVEL
$21.09¢10 545
#20
O-Ring
$7.56¢3 778
#21
GASKET, CRANKCASE COVER 3
$10.76¢5 382
#22
PIN, DOWEL
$5.75¢2 875
#23
SCREW
$3.00¢1 501
#24
Screw
$3.00¢1 501
#25
CLAMP
$5.96¢2 978
#26
Clamp
$10.68¢5 342
#27
COVER, OIL PUMP
$150.37¢75 187
#28
GASKET, OIL PUMP COVER 1
$21.80¢10 902
#29
PIN, DOWEL
$5.75¢2 875
#30
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#31
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
#32
CLAMP
$5.96¢2 978
#33
CLAMP
$4.66¢2 329
#34
COVER, GENERATOR 2
$11.74¢5 871
#35
GASKET, 2
$8.59¢4 295
#36
SCREW
$3.00¢1 501
