FENDER

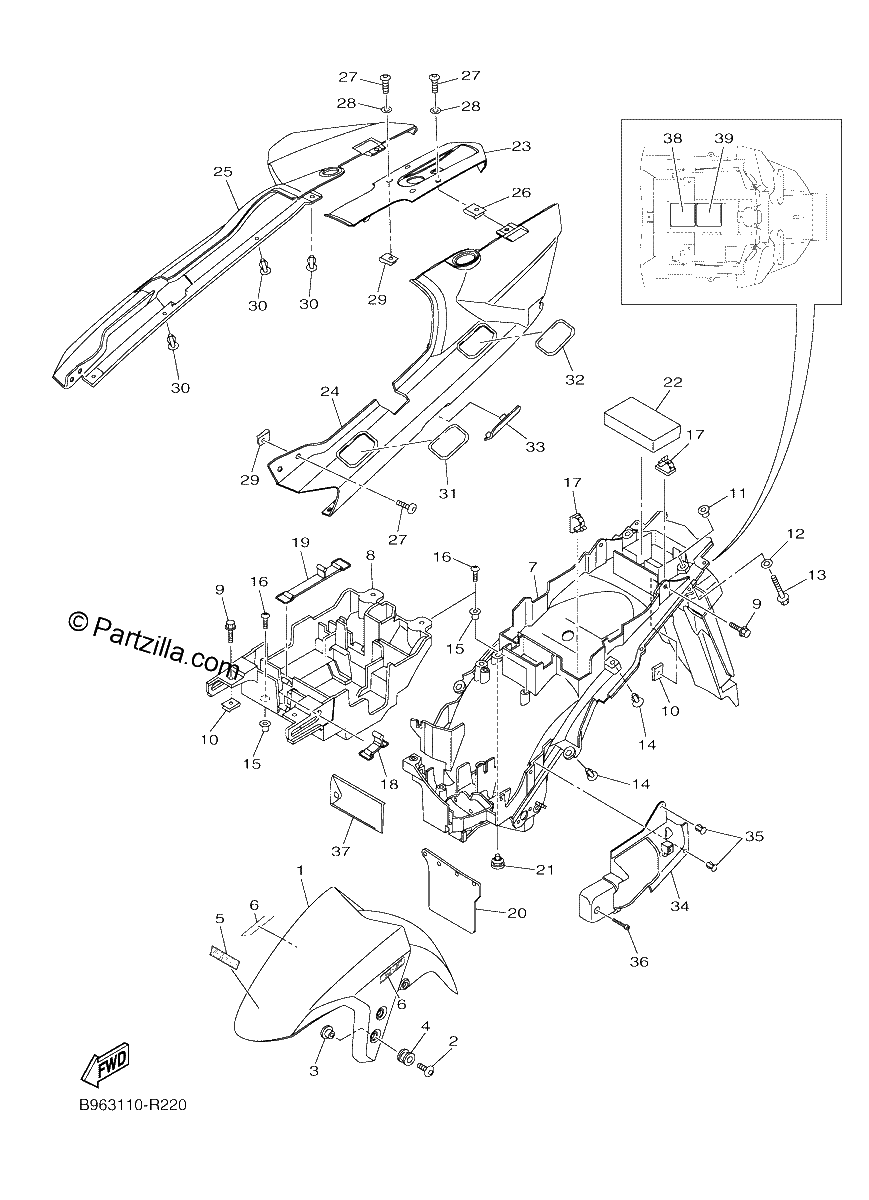

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$203.65¢101 827
#2
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
#3
Collar
$6.99¢3 496
#4
GROMMET
$7.30¢3 651
#5
EMBLEM, YAMAHA
$4.91¢2 455
#6
EMBLEM (replaces 2BS-21578-00-00)
$4.86¢2 432
#7
FENDER, REAR
$167.80¢83 898
#8
BOX
$144.84¢72 421
#9
BOLT, WITH WASHER
$6.88¢3 439
#10
NUT, SPRING
$7.11¢3 553
#11
COLLAR
$4.97¢2 484
#12
WASHER, PLATE
$7.77¢3 887
#13
Bolt, Flange
$4.98¢2 490
#14
RIVET
$6.23¢3 117
#15
PLUG
$1.78¢891
#16
SCREW, TAPPING
$0.38¢190
#17
CLAMP
$4.22¢2 110
#18
BAND
$8.28¢4 140
#19
BAND, BATTERY
$26.46¢13 231
#20
FLAP
$22.18¢11 092
#21
GROMMET
No Disponible
#22
COVER
$27.77¢13 886
#23
COVER, REAR FENDER
$205.72¢102 862
#24
COVER, TAIL 1
$164.73¢82 363
#25
COVER, TAIL 2
$240.00¢120 002
#26
NUT, SPRING
$2.92¢1 461
#27
BOLT, HEX. SOCKET BUTTON
$7.11¢3 553
#28
WASHER, PLATE
$7.05¢3 525
#29
NUT, SPRING
$4.88¢2 438
#30
RIVET
$6.23¢3 117
#31
COVER, REAR FENDER
$36.12¢18 061
#32
COVER, REAR FENDER
$36.12¢18 061
#33
COVER, REAR FENDER
$35.89¢17 946
#34
COVER, REAR FENDER 1
$14.55¢7 274
#35
RIVET
$6.23¢3 117
#36
SCREW, TAPPING
$2.23¢1 116
#37
TOOL KIT
$9.51¢4 755
#38
PLATE, ROUTING | FOR CALIFORNIA
$9.37¢4 686
#39
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.91¢4 956
