TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

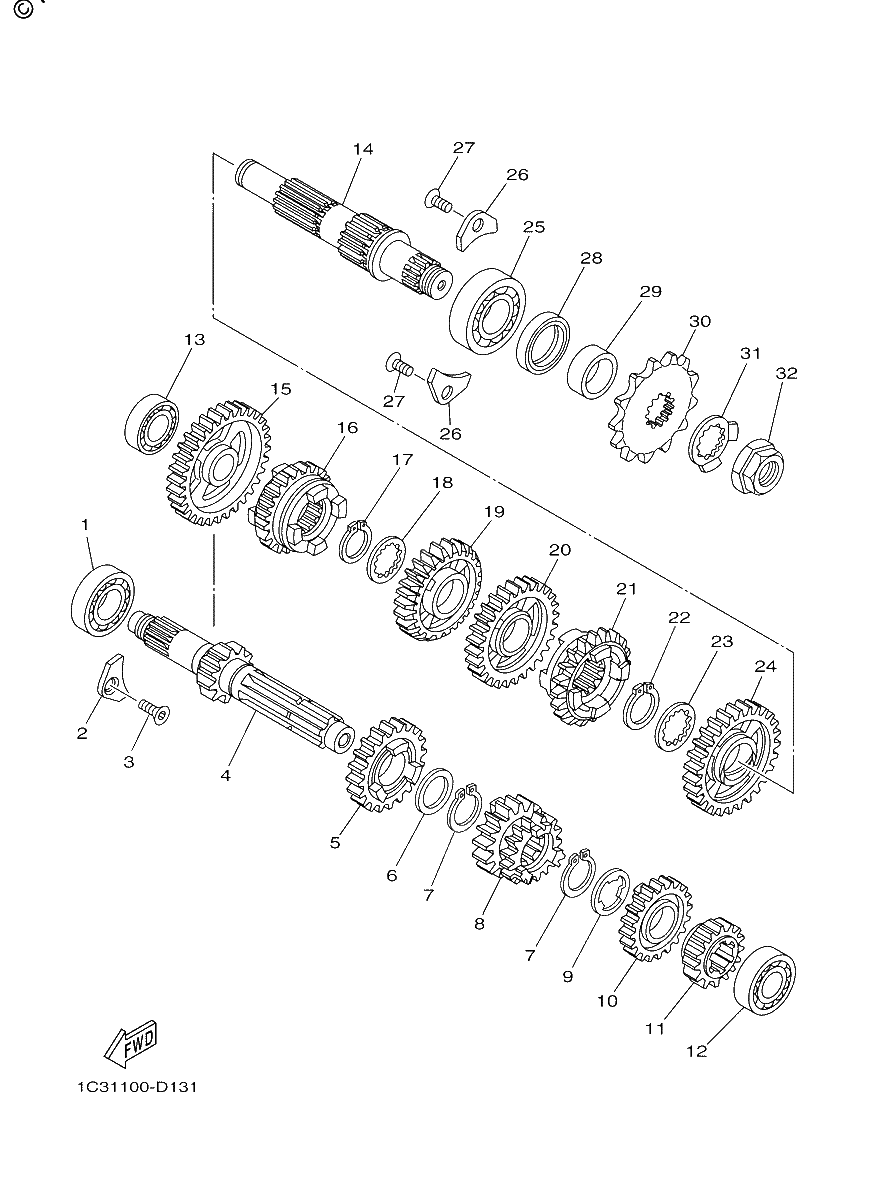

Diagrama de TRANSMISSION

Repuestos

#1
93306-00442-00
BEARING
$38.54¢19 268
1
#2
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#3
90149-06074-00
SCREW
$6.99¢3 496
1
#4
1C3-17411-10-00
AXLE, MAIN (13T)
$236.77¢118 387
1
#5
1C3-17161-10-00
GEAR, 6TH PINION (21T)
$62.01¢31 004
1
#6
90201-22555-00
WASHER, PLATE
$7.30¢3 651
1
#7
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#8
1C3-17131-10-00
GEAR, 3RD PINION (17T/17T)
$148.92¢74 462
1
#9
90209-18135-00
WASHER
$8.50¢4 249
1
#10
1C3-17151-10-00
GEAR, 5TH PINION (20T)
$75.42¢37 708
1
#11
1C3-17121-10-00
GEAR, 2ND PINION (15T)
$48.94¢24 472
1
#12
93306-20351-00
BEARING
$37.40¢18 699
1
#13
93306-00326-00
BEARING
$35.39¢17 693
1
#14
1C3-17421-00-00
AXLE, DRIVE
$180.85¢90 425
1
#15
1C3-17211-10-00
GEAR, 1ST WHEEL (31T)
$115.92¢57 960
1
#16
1C3-17261-10-00
GEAR, 6TH WHEEL (23T)
$119.34¢59 668
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#18
90209-20008-00
WASHER
$9.40¢4 698
1
#19
1C3-17241-10-00
GEAR, 4TH WHEEL (23T)
$89.37¢44 683
1
#20
1C3-17231-20-00
GEAR, 3RD WHEEL (27T)
$128.10¢64 049
1
#21
1C3-17251-10-00
GEAR, 5TH WHEEL (24T)
$88.73¢44 367
1
#22
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#23
90209-23012-00
WASHER
$5.51¢2 754
1
#24
1C3-17221-10-00
GEAR, 2ND WHEEL (29T)
$123.92¢61 962
1
#25
93306-20447-00
BEARING (replaces 93306-20427-00)
$38.27¢19 136
1
#26
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#27
90149-06074-00
SCREW
$6.99¢3 496
1
#28
93102-28012-00
Oil Seal
$16.08¢8 038
1
#29
90387-22004-00
COLLAR
$36.41¢18 205
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$20.87¢10 436
1
#31
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#32
90179-18001-00
Nut
$15.03¢7 515
1
