FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

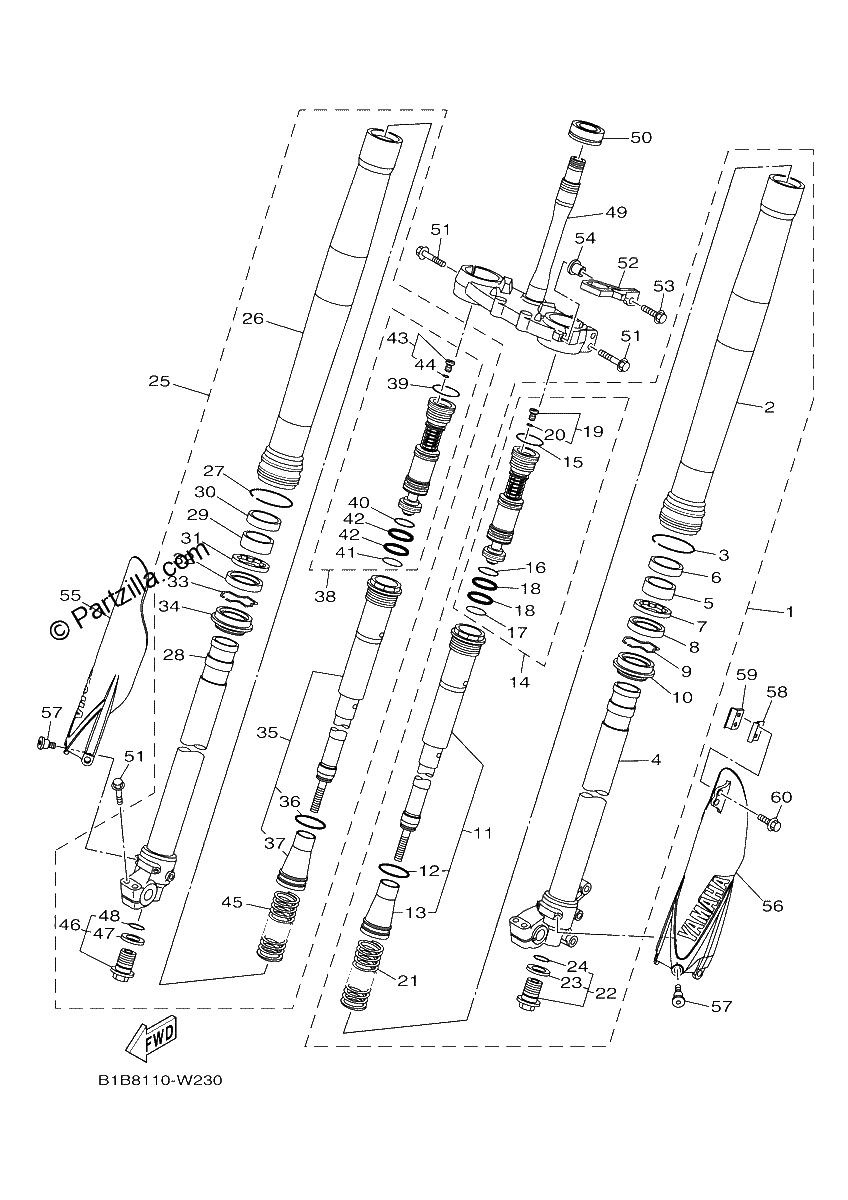

Diagrama de FRONT FORK

Repuestos

#1
B1B-23102-20-00
FRONT FORK ASSY (L.H)
$1921.24¢960 619
1
#2
1SS-23136-00-00
TUBE, OUTER
$800.17¢400 088
1
#3
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#4
1SS-23120-00-00
INNER TUBE COMP.2
$607.69¢303 844
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#8
17D-23145-00-00
OIL SEAL
$27.14¢13 569
1
#9
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#10
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#11
B1B-23170-00-00
CYLINDER COMP., front fork
$818.74¢409 369
1
#12
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#13
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#14
B1B-2316A-10-00
VALVE COMP.
$369.89¢184 944
1
#15
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#16
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#17
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#18
1AE-23147-00-00
. O-RING
$8.85¢4 425
1
#19
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#20
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#21
1C3-23141-P0-00
SPRING, FRONT FORK (K=4.1N/
No Disponible
1
#22
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#23
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#24
276-23114-00-00
GASKET
$4.63¢2 313
1
#25
B1B-23103-20-00
FRONT FORK ASSY (R.H)
$1921.24¢960 619
1
#26
1SS-23136-00-00
TUBE, OUTER
$800.17¢400 088
1
#27
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#28
1SS-23110-00-00
INNER TUBE COMP.1
$623.69¢311 844
1
#29
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#30
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#31
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#32
17D-23145-00-00
OIL SEAL
$27.14¢13 569
1
#33
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#34
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#35
B1B-23170-00-00
CYLINDER COMP., front fork
$818.74¢409 369
1
#36
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#37
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#38
B1B-2316A-10-00
VALVE COMP.
$369.89¢184 944
1
#39
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#40
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#41
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#42
1AE-23147-00-00
. O-RING
$8.85¢4 425
1
#43
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#44
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#45
1C3-23141-P0-00
SPRING, FRONT FORK (K=4.1N/
No Disponible
1
#46
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#47
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#48
276-23114-00-00
GASKET
$4.63¢2 313
1
#49
1SR-23340-10-00
UNDER BRACKET COMP.
$789.40¢394 700
1
#50
93332-00081-00
BEARING
$60.51¢30 256
1
#51
95E34-08035-00
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
1
#52
BF1-23389-00-00
GUIDE, CABLE
$7.94¢3 969
1
#53
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#54
90387-06104-00
Collar
$1.57¢788
1
#55
17D-2315J-H0-00
PROTECTOR 2
$16.54¢8 269
1
#56
17D-2315H-H0-00
PROTECTOR 1
$16.54¢8 269
1
#57
90109-06232-00
BOLT
$3.93¢1 963
1
#58
17D-23466-00-00
CLAMP
$19.71¢9 856
1
#59
17D-23467-00-00
CLAMP
$26.99¢13 494
1
#60
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
