CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

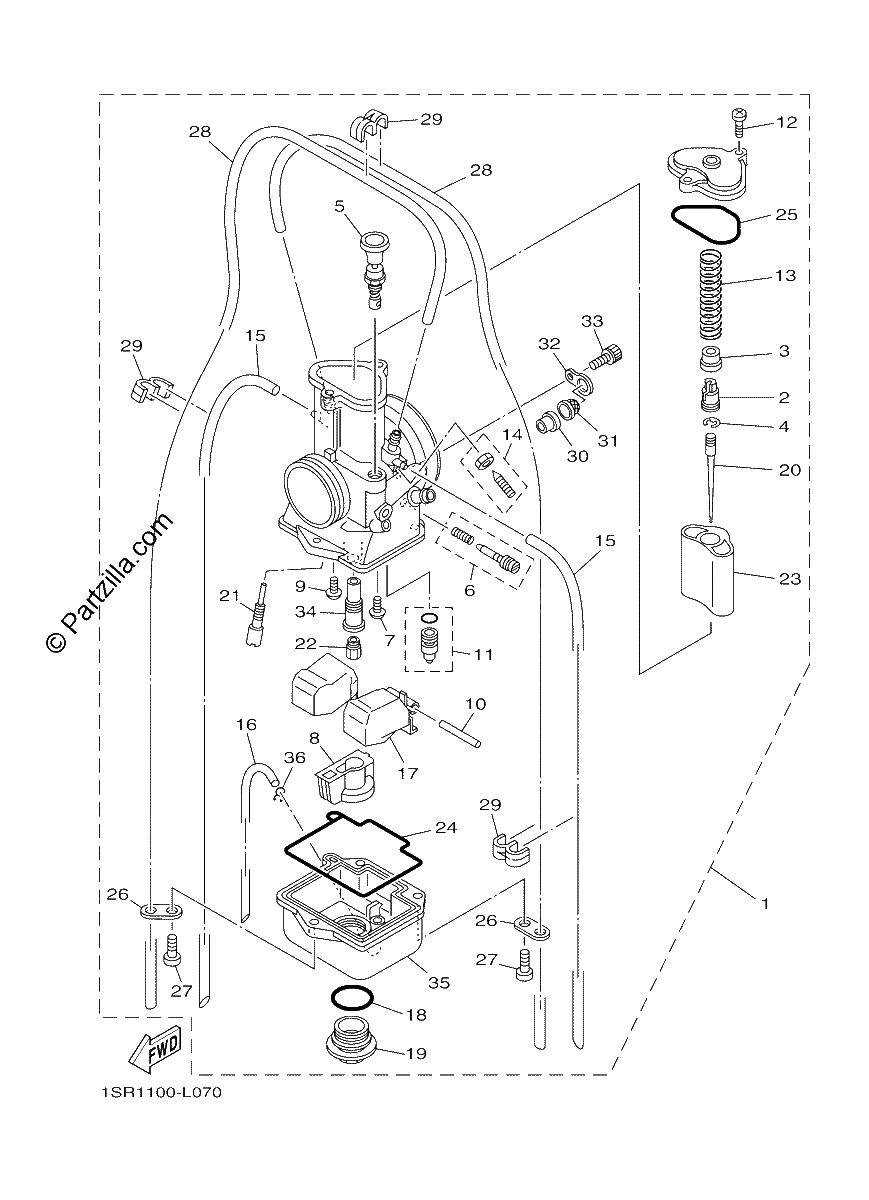

Diagrama de CARBURETOR

Repuestos

#1
1C3-14101-51-00
CARBURETOR ASSY 1
$837.07¢418 537
1
#2
5HD-14261-00-00
HOLDER
$23.48¢11 742
1
#3
4PE-14194-00-00
RING
$10.43¢5 215
1
#4
3MA-14159-00-00
CLIP
$6.69¢3 347
1
#5
3JE-14171-00-00
PLUNGER, STARTER
$76.60¢38 301
1
#6
5UN-14104-00-00
AIR SCREW SET
$9.65¢4 824
1
#7
1FN-14565-00-00
SCREW
$7.04¢3 519
1
#8
5ET-14261-01-00
HOLDER
$14.89¢7 446
1
#9
98507-04008-00
SCREW, PAN HEAD | UR (#2) FRONT
$1.59¢793
1
#10
353-14186-00-00
PIN, FLOAT
$7.38¢3 691
1
#11
4PE-14107-38-00
NEEDLE VALVE SET
$40.88¢20 441
1
#12
98507-04014-00
SCREW, PAN HEAD
$1.45¢724
1
#13
4PE-14131-00-00
SPRING, THROTTLE VALVE
$15.65¢7 826
1
#14
4PE-14103-00-00
THROTTLE SCREW SET
$19.87¢9 936
1
#15
5ET-14197-00-00
PIPE
$16.53¢8 263
1
#16
10V-14196-00-00
. PIPE, OVER FLOW 1
$18.97¢9 487
1
#17
5ET-14185-00-00
FLOAT
$79.17¢39 583
1
#18
2K6-14147-00-00
O-RING
$12.29¢6 147
1
#19
5ET-14115-00-00
PLUG, SCREW
$40.32¢20 160
1
#20
284-14116-K3-00
NEEDLE (6BFY44-73) | AP
$27.36¢13 679
1
#20
284-14116-K6-00
NEEDLE (6BFY44-76) | AP
$23.87¢11 937
1
#20
284-14116-K5-00
NEEDLE (6BFY44-75) | AP
$27.95¢13 973
1
#20
284-14116-K4-00
NEEDLE (6BFY44-74) | AP
$27.36¢13 679
1
#20
284-14116-K2-00
NEEDLE (6BFY44-72) | AP
$27.36¢13 679
1
#20
284-14116-J6-00
NEEDLE (6BFY43-76) | AP
$27.36¢13 679
1
#20
284-14116-J5-00
NEEDLE (6BFY43-75) | AP
$27.36¢13 679
1
#20
284-14116-J4-00
NEEDLE (6BFY43-74) | STD
$27.36¢13 679
1
#20
284-14116-J3-00
NEEDLE (6BFY43-73) | AP
$27.36¢13 679
1
#20
284-14116-J2-00
NEEDLE (6BFY43-72) | AP
$27.36¢13 679
1
#20
284-14116-H6-00
NEEDLE (6BFY42-76) | AP
$27.34¢13 668
1
#20
284-14116-H5-00
NEEDLE (6BFY42-75) | AP
$27.36¢13 679
1
#20
284-14116-H4-00
NEEDLE (6BFY42-74) | AP
$27.36¢13 679
1
#20
284-14116-H3-00
NEEDLE (6BFY42-73) | AP
$27.36¢13 679
1
#20
284-14116-H2-00
NEEDLE (6BFY42-72) | AP
$23.37¢11 684
1
#21
4KM-14142-45-00
JET, PILOT (# 45) | AP
$8.85¢4 427
1
#21
4KM-14142-50-00
JET, PILOT (# 50) | AP
$8.26¢4 129
1
#21
4KM-14142-47-00
JET, PILOT (# 47.5) | AP
$9.17¢4 583
1
#21
4KM-14142-42-00
JET, PILOT (# 42.5) | AP
$8.85¢4 427
1
#21
4KM-14142-40-00
JET, PILOT (# 40) | STD
$8.85¢4 427
1
#21
4KM-14142-37-00
JET, PILOT (# 37.5) | AP
$8.85¢4 427
1
#21
4KM-14142-35-00
JET, PILOT (# 35) | AP
$8.85¢4 427
1
#21
4KM-14142-32-00
JET, PILOT (# 32.5) | AP
$9.34¢4 669
1
#21
4KM-14142-30-00
JET, PILOT (# 30) | AP
$8.26¢4 129
1
#22
137-14143-88-00
JET, MAIN (#440) | AP
$7.23¢3 617
1
#22
137-14143-92-00
JET, MAIN (#460) | AP
$6.51¢3 254
1
#22
137-14143-80-00
JET, MAIN (#400) | AP
$6.99¢3 496
1
#22
137-14143-90-00
JET, MAIN (#450) | AP
$6.51¢3 254
1
#22
137-14143-82-00
JET, MAIN (#410) | AP
$6.99¢3 496
1
#22
137-14143-94-00
JET, MAIN (#470) | AP
$7.23¢3 617
1
#22
137-14143-84-00
JET, MAIN (#420) | AP
$6.99¢3 496
1
#22
137-14143-86-00
JET, MAIN (#430) | STD
$6.99¢3 496
1
#23
1C3-14112-42-00
VALVE, THROTTLE 1 (4.25) | AP
$222.09¢111 044
1
#23
1C3-14112-40-00
VALVE, THROTTLE 1 (4.0) | STD
$333.80¢166 900
1
#24
5ET-1416A-00-00
O-RING
$17.39¢8 694
1
#25
5ET-14147-00-00
O-RING
$10.45¢5 227
1
#26
51R-14146-00-00
PLATE
$7.38¢3 691
1
#27
98502-05014-00
SCREW, PAN HEAD
$2.21¢1 104
1
#28
2HH-14197-00-00
. PIPE
$34.03¢17 014
1
#29
87M-14137-00-00
CLIP
$13.05¢6 526
1
#30
5MV-14194-00-00
RING
$11.90¢5 951
1
#31
5MV-24514-00-00
NET, FILTER 1
$13.57¢6 785
1
#32
5MV-14146-00-00
PLATE
$9.87¢4 934
1
#33
5MV-14216-00-00
SCREW
$5.88¢2 938
1
#34
5MV-14261-00-00
HOLDER
$17.56¢8 780
1
#35
5NY-14181-00-00
BODY, FLOAT CHAMBER 1
$124.18¢62 088
1
#36
22F-14139-00-00
CLIP, PIPE
$6.51¢3 254
1
