ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

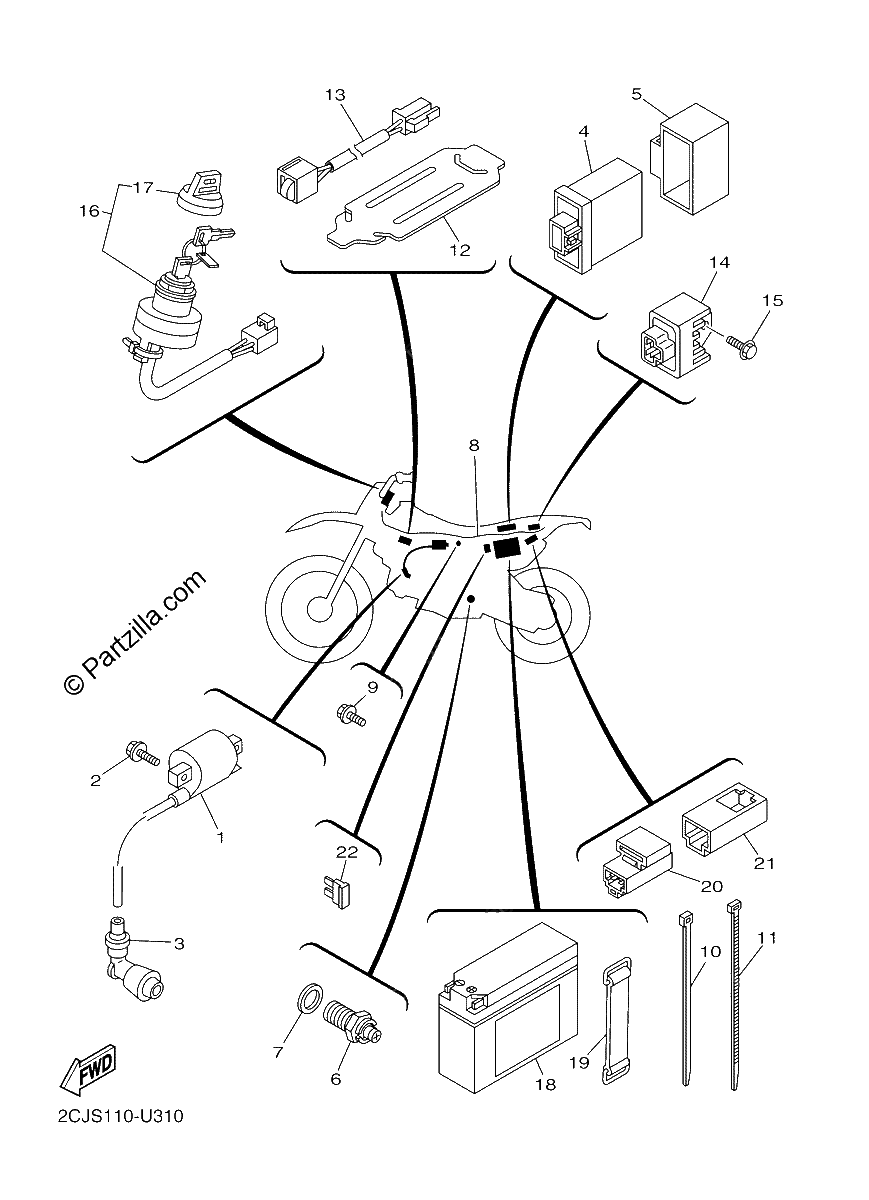

Diagrama de ELECTRICAL 1

Repuestos

#1
1P6-H2310-00-00
IGNITION COIL ASSY
$101.81¢50 906
1
#2
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#3
4BP-82370-00-00
PLUG CAP ASY
$37.91¢18 956
1
#4
1P6-H5540-00-00
C.D.I. UNIT ASSY
$228.86¢114 431
1
#5
1P6-H5546-00-00
BAND
$7.44¢3 719
1
#6
5VL-H2540-11-00
NEUTRAL SWITCH ASS
$36.27¢18 138
1
#7
90430-10188-00
Gasket
$7.36¢3 681
1
#8
1P6-H2590-10-00
WIRE HARNESS ASSY (replaces 1P6-H2590-00-00)
$278.10¢139 050
1
#9
97502-06514-00
BOLT,HEX.HEADW/WASHE
$3.05¢1 525
1
#10
90464-35803-00
Grommet
$1.84¢919
1
#11
90464-20818-00
CLAMP This item has been discontinued and may not be available. Contact us for more information.
$5.91¢2 956
1
#12
12B-H252U-00-00
Cover
$12.09¢6 044
1
#13
5FU-82560-30-00
THERMO SWITCH ASSY
$57.06¢28 531
1
#14
4GU-H1960-00-00
RECTIFIER & REGULATOR ASSY
$236.99¢118 494
1
#15
97502-06514-00
BOLT,HEX.HEADW/WASHE
$3.05¢1 525
1
#16
1P6-H2510-13-00
MAIN SWITCH ASSY (replaces 1P6-H2510-11-00)
$91.33¢45 663
1
#17
1P6-H2579-00-00
CAP, KEY
$22.50¢11 250
1
#18
4JS-82100-10-00
BATTERY ASSY (GS YUASA GT4B-5)
$101.84¢50 919
1
#19
1P6-H2131-00-00
BAND, BATTERY
$10.35¢5 175
1
#20
29U-81950-93-00
RELAY ASSY
$83.00¢41 500
1
#21
1P6-H252U-00-00
Cover
$5.59¢2 794
1
#22
1P6-H2151-00-00
FUSE (10A)
$2.64¢1 319
1
