ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

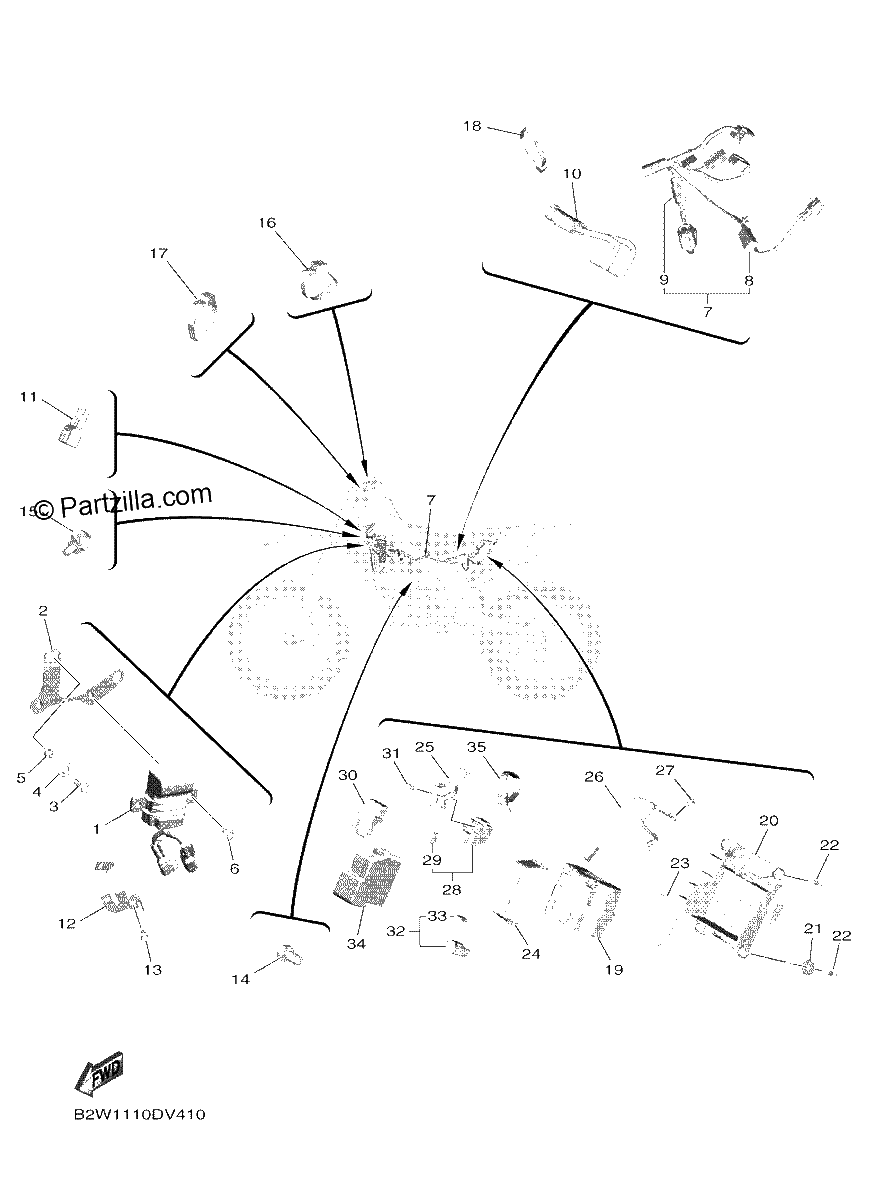

Diagrama de ELECTRICAL 2

Repuestos

#1
B7B-81960-00-00
RECTIFIER & REGULATOR ASSY
$160.76¢80 381
1
#2
B7B-21287-00-00
BRACKET, REGULATOR
$14.59¢7 294
1
#3
90105-06219-00
Bolt, Flange
$2.16¢1 081
1
#4
90480-13025-00
Grommet
$3.79¢1 894
1
#5
90387-066J9-00
COLLAR
$8.89¢4 444
1
#6
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#7
B2W-82590-10-00
WIRE HARNESS ASSY
$456.88¢228 438
1
#8
4WA-81980-00-00
DIODE ASSY
$30.92¢15 462
1
#9
3WP-81980-00-00
RECTIFIER 2
$22.45¢11 225
1
#10
1SL-82309-00-00
WIRE, SUB LEAD
$30.67¢15 337
1
#11
33D-82378-00-00
Connector
$18.49¢9 244
1
#12
B7B-82388-00-00
PLATE
$9.74¢4 869
1
#13
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#14
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#15
90464-17003-00
Clamp
$3.69¢1 844
1
#16
90464-25004-00
Clamp
$2.81¢1 406
1
#17
90464-13073-00
Clamp
$3.30¢1 650
1
#18
1UA-82591-00-00
BAND
$4.91¢2 456
1
#19
BR9-82100-49-00
BATTERY ASSY (replaces BR9-82100-00-00)
No Disponible
1
#20
BR9-82128-00-00
BRACKET, BATTERY
$68.46¢34 231
1
#21
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#22
90119-06133-00
BOLT, WITH WASHER
$5.61¢2 806
1
#23
BR9-82176-00-00
Damper
$5.93¢2 963
1
#24
8CY-82131-00-00
BAND, BATTERY
$12.21¢6 106
1
#25
BR9-82115-00-00
WIRE, plus lead
$29.96¢14 981
1
#26
BR9-82116-00-00
WIRE, MINUS LEAD
$22.46¢11 231
1
#27
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#28
2GB-81940-00-00
STARTER RELAY ASSY (RC19-102B)
$53.90¢26 950
1
#29
36Y-82151-00-00
Fuse (15 Amp)
$4.84¢2 419
1
#30
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#31
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#32
1ST-81950-00-00
RELAY ASSY (1ST-00)
$17.80¢8 900
1
#33
5JJ-81952-00-00
HOLDER, RELAY
$9.46¢4 731
1
#34
B7R-8246B-00-00
COVER 1
$26.02¢13 013
1
#35
90465-10098-00
CLAMP
$2.78¢1 388
1
