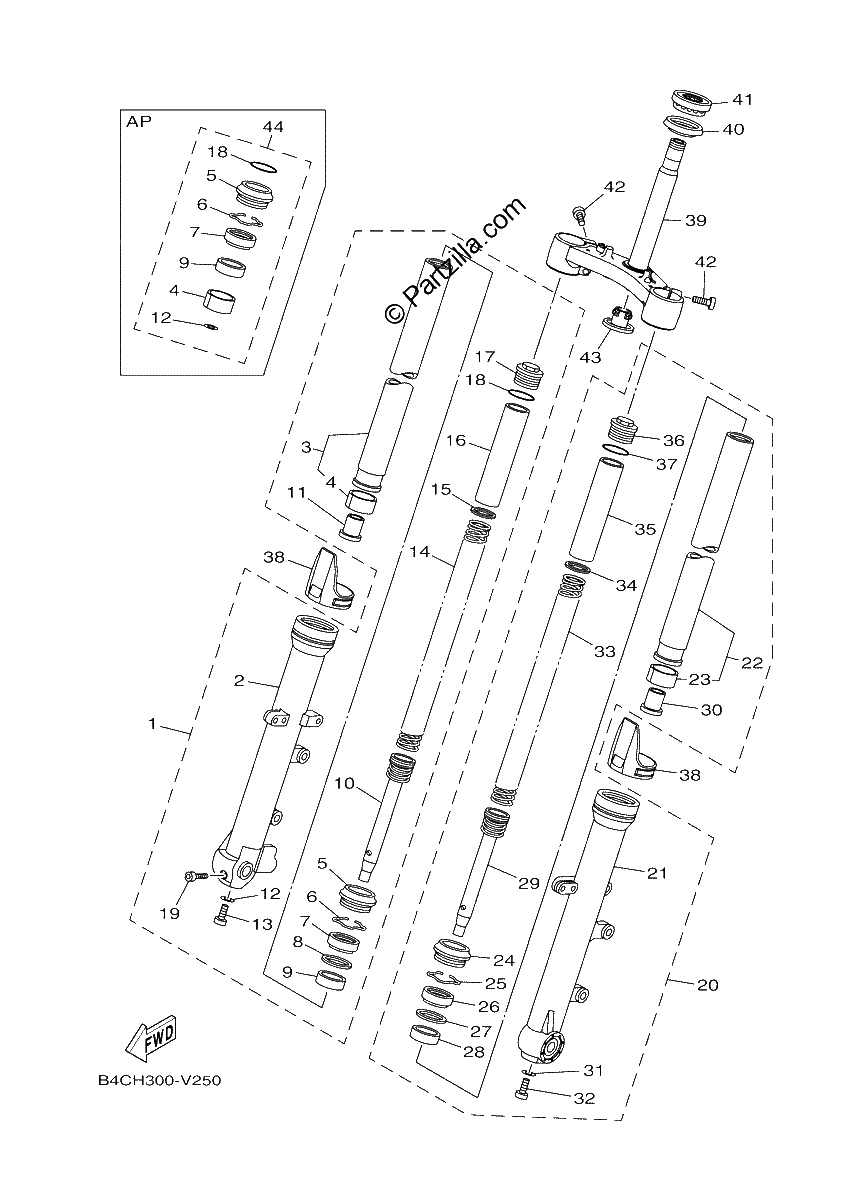

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$462.87¢231 437
#2
TUBE, OUTER 2
$443.97¢221 985
#3
INNER TUBE COMP.1
$194.02¢97 008
#4
PISTON,FRONT FORK
$21.36¢10 678
#5
SEAL, DUST
$21.36¢10 678
#6
RING, SNAP
$7.24¢3 622
#7
OIL SEAL
$26.59¢13 294
#8
WASHER, OIL SEAL
$24.18¢12 092
#9
METAL,SLIDE 1
$32.08¢16 042
#10
CYLINDER COMP., front fork
$96.37¢48 185
#11
SPINDLE, TAPER
$36.17¢18 084
#12
GASKET | (KYB)
$15.72¢7 860
#13
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#14
. .SPRING, FRONT FORK
$44.14¢22 069
#15
WASHER,SPRING UPR
$3.06¢1 529
#16
SPACER
$19.93¢9 965
#17
BOLT, cap
$46.98¢23 489
#18
O-RING
$3.21¢1 604
#19
BOLT (3JP)
$5.75¢2 875
#20
FRONT FORK ASSY (L.H)
$459.40¢229 701
#21
TUBE, OUTER (LH)
$440.01¢220 007
#22
INNER TUBE COMP.1
$194.02¢97 008
#23
PISTON,FRONT FORK
$21.36¢10 678
#24
SEAL, DUST
$21.36¢10 678
#25
RING, SNAP
$7.24¢3 622
#26
OIL SEAL
$26.59¢13 294
#27
WASHER, OIL SEAL
$24.18¢12 092
#28
METAL,SLIDE 1
$32.08¢16 042
#29
CYLINDER COMP., front fork
$96.37¢48 185
#30
SPINDLE, TAPER
$36.17¢18 084
#31
GASKET | (KYB)
$15.72¢7 860
#32
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#33
. .SPRING, FRONT FORK
$44.14¢22 069
#34
WASHER,SPRING UPR
$3.06¢1 529
#35
SPACER
$19.93¢9 965
#36
BOLT, cap
$46.98¢23 489
#37
O-RING
$3.21¢1 604
#38
Cover
$8.45¢4 226
#39
UNDER BRACKET COMP.
$344.54¢172 270
#40
SEAL, STEERING
$23.48¢11 742
#41
BEARING
$60.89¢30 446
#42
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#43
COVER, UNDER 1
$13.48¢6 739
#44
FORK SEALS KIT *{AP}*
$53.06¢26 531
