FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

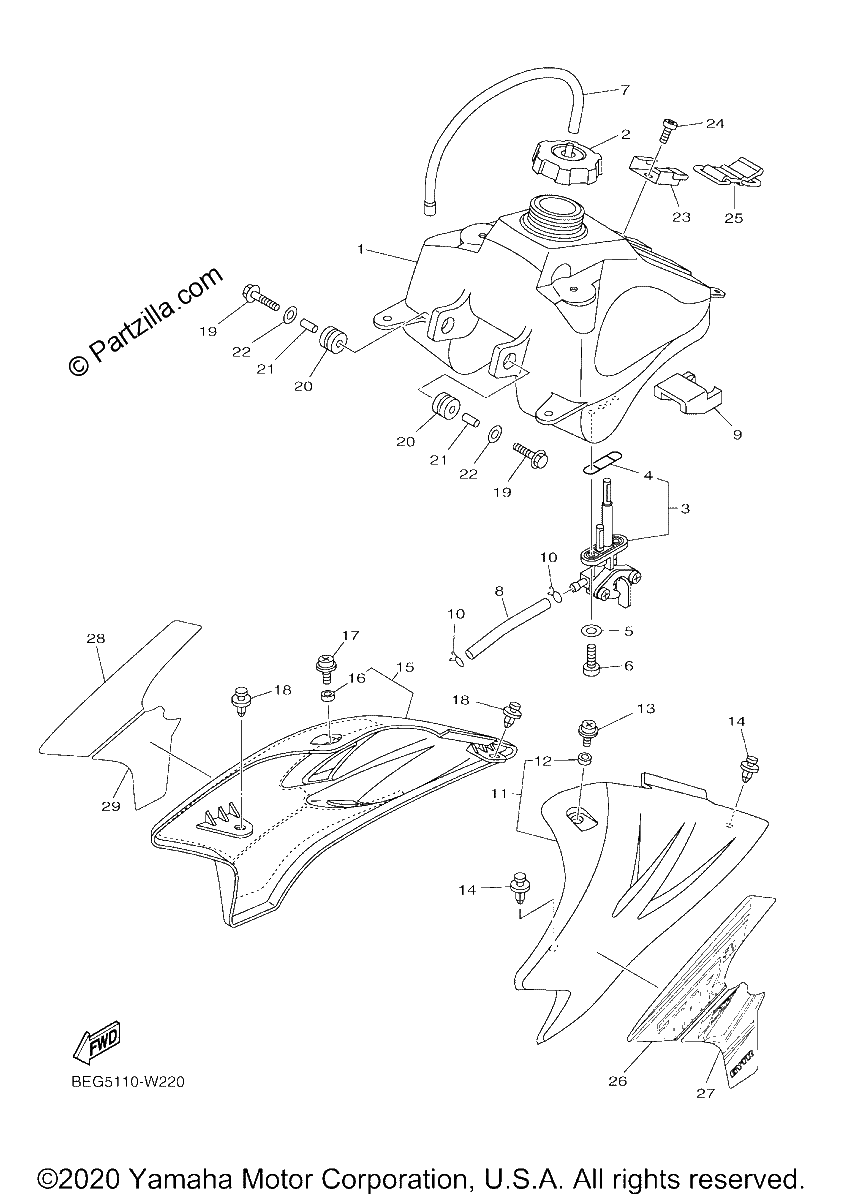

Diagrama de FUEL TANK

Repuestos

#1
1P6-24110-10-00
FUEL TANK COMP.
$320.64¢160 322
1
#2
2FJ-24610-20-00
CAP ASSY (replaces 2FJ-24610-10-00)
$67.76¢33 879
1
#3
1P6-24500-10-00
FUEL COCK ASSY 1
$134.93¢67 465
1
#4
1P6-24512-10-00
O-Ring
$15.93¢7 964
1
#5
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#6
90149-06011-00
SCREW,SPEC'L SHAPE
$1.79¢897
1
#7
1P6-F1826-10-00
Pipe, Breather
$17.08¢8 539
1
#8
1P6-24311-00-00
PIPE, FUEL 1
$20.26¢10 131
1
#9
1P6-F4181-00-00
DAMPER, locating 1
$17.34¢8 671
1
#10
90467-090A2-00
Clip
$2.74¢1 368
1
#11
1P6-F137A-00-00
SCOOP AIR ASSY. 1
$83.00¢41 498
1
#12
90387-07805-00
Collar
$11.30¢5 652
1
#13
90159-06182-00
SCREW, WITH WASHER
$7.01¢3 507
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#15
1P6-F137B-00-00
SCOOP AIR ASSY. 2
$73.94¢36 973
1
#16
90387-07805-00
Collar
$11.30¢5 652
1
#17
90159-06182-00
SCREW, WITH WASHER
$7.01¢3 507
1
#18
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#19
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
1
#20
90480-18803-00
Grommet
$5.66¢2 829
1
#21
90387-07804-00
Collar
$11.73¢5 865
1
#22
90201-06072-00
WASHER, PLATE
$7.01¢3 507
1
#23
1P6-F4116-01-00
STAY, FUEL TANK 2
$13.42¢6 710
1
#24
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
1
#25
1P6-F4173-00-00
BAND, TANK FITTING 1
$12.56¢6 279
1
#26
1P6-F4244-G0-00
GRAPHIC, FUEL TANK 1
$8.99¢4 497
1
#27
1P6-F4245-G0-00
GRAPHIC, FUEL TANK 2
$10.66¢5 330
1
#28
1P6-F4246-G0-00
GRAPHIC 3
$8.99¢4 497
1
#29
1P6-F4247-G0-00
GRAPHIC
$10.66¢5 330
1
