TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

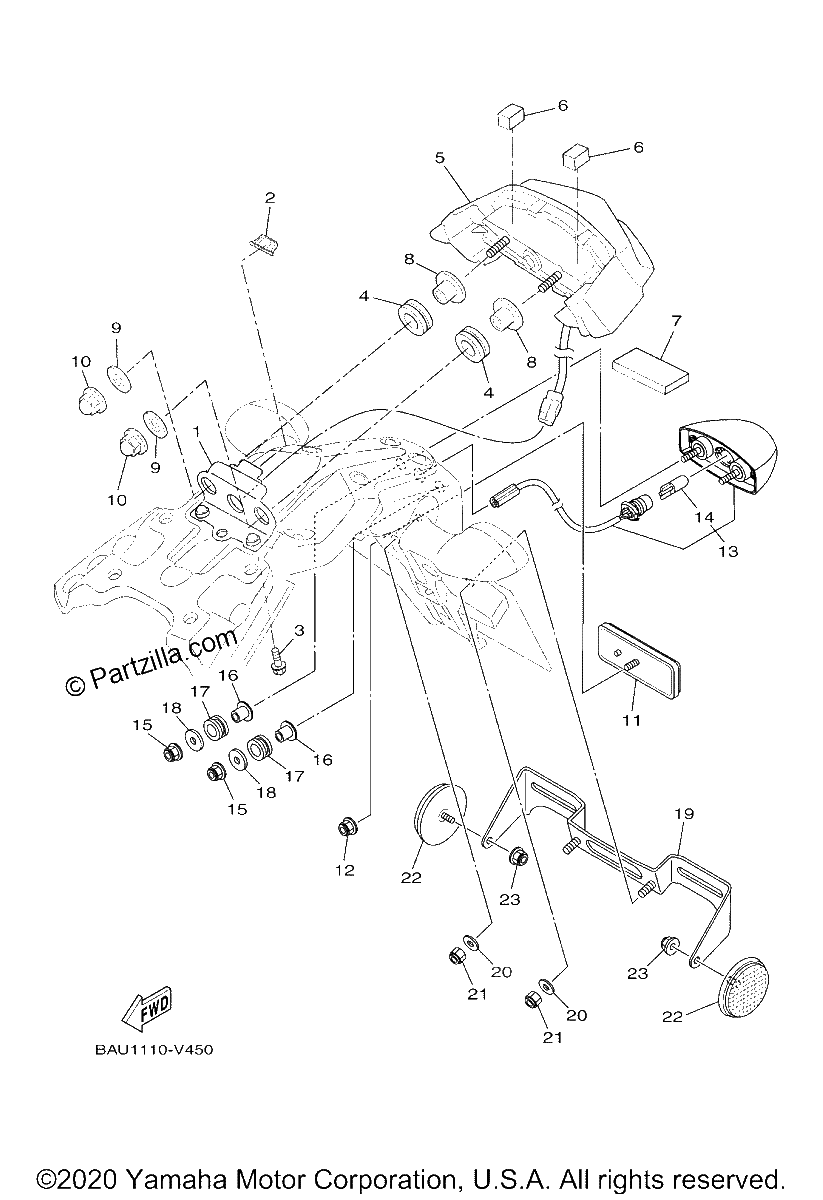

Diagrama de TAILLIGHT

Repuestos

#1
BW3-F117E-00-00
BRACKET, TAILLIGHT
$43.44¢21 718
1
#2
2N4-21717-00-00
Damper
$6.99¢3 496
1
#3
90149-05042-00
SCREW
$3.06¢1 529
1
#4
90480-18276-00
GROMMET
$7.30¢3 651
1
#5
BW3-H4700-00-00
TAILLIGHT ASSY
$210.55¢105 277
1
#6
90520-15X03-00
DAMPER, PLATE
$1.39¢696
1
#7
90520-07X00-00
DAMPER, PLATE
$12.27¢6 135
1
#8
90387-06150-00
COLLAR
$5.65¢2 823
1
#9
90201-06057-00
WASHER, PLATE
$4.13¢2 064
1
#10
90176-06008-00
NUT, CROWN
$2.51¢1 254
1
#11
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#12
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#13
B34-84740-00-00
License Light Assy
$61.46¢30 728
1
#14
1TP-84347-00-00
BULB (12V-5W)
$6.51¢3 254
1
#15
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#16
90387-05042-00
COLLAR
$5.23¢2 616
1
#17
90480-12023-00
GROMMET
$6.83¢3 415
1
#18
90201-05556-00
WASHER, PLATE
$7.65¢3 824
1
#19
1RC-84751-10-00
BRACKET, LICENSE
$43.67¢21 833
1
#20
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#21
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#22
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#23
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
