TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

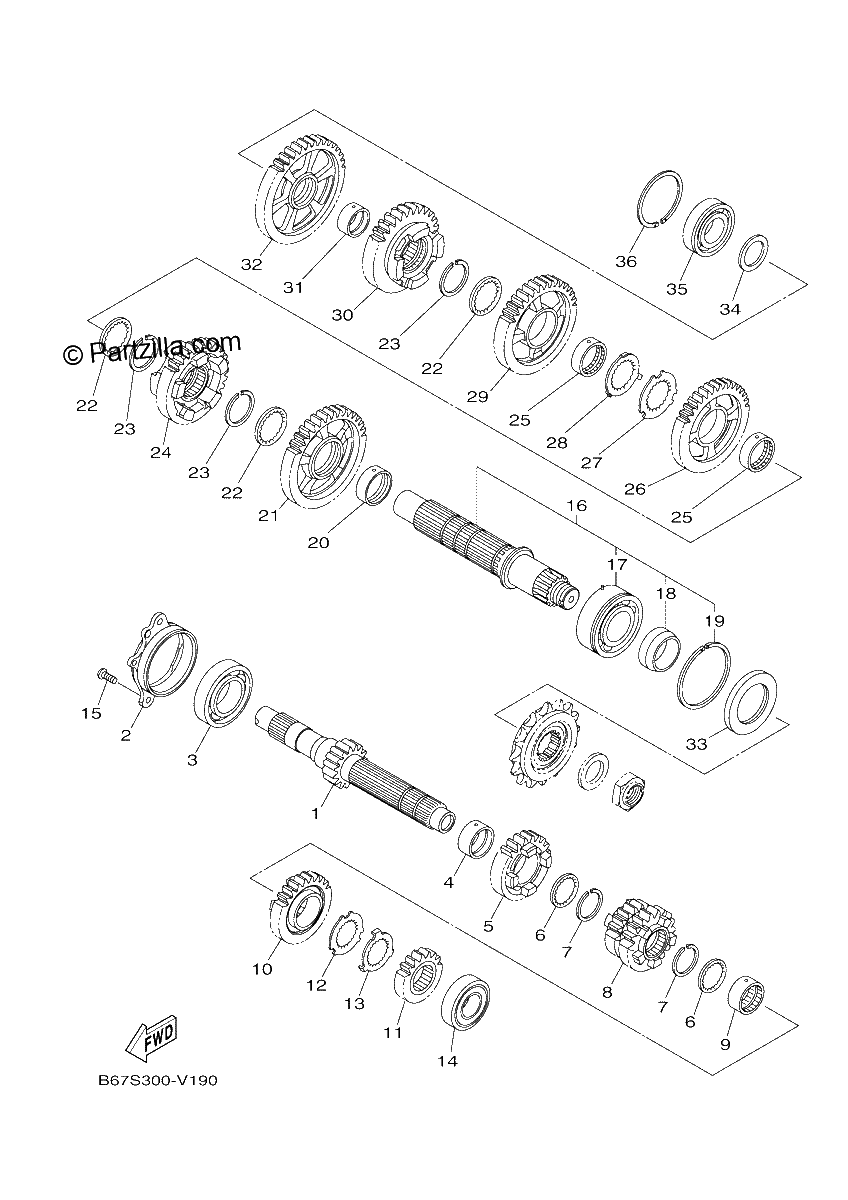

Diagrama de TRANSMISSION

Repuestos

#1
2CR-17411-00-00
AXLE, MAIN (15T)
$198.60¢99 300
1
#2
2CR-15163-00-00
HOUSING, BEARING 1
$181.76¢90 881
1
#3
93306-20652-00
BEARING
$94.94¢47 469
1
#4
90387-28003-00
COLLAR
$28.48¢14 238
1
#5
2CR-17151-00-00
GEAR, 5TH PINION (21T)
$120.10¢60 050
1
#6
90209-25011-00
WASHER
$8.60¢4 300
1
#7
93440-28184-00
CIRCLIP
$4.41¢2 206
1
#8
2CR-17131-01-00
GEAR, 3RD PINION (19/19T)
$437.98¢218 988
1
#9
90387-25023-00
COLLAR
$42.93¢21 463
1
#10
2CR-17161-00-00
GEAR, 6TH PINION (24T)
$143.39¢71 694
1
#11
B3L-17121-00-00
GEAR, 2ND PINION (17T)
$157.27¢78 637
1
#12
90214-25004-00
WASHER, CLAW
$8.63¢4 313
1
#13
90214-25003-00
WASHER, CLAW
$8.64¢4 319
1
#14
93306-27214-00
BEARING
$95.88¢47 938
1
#15
90149-06082-00
SCREW
$7.34¢3 669
1
#16
2CR-17402-00-00
DRIVE AXLE ASSY
$316.95¢158 475
1
#17
93305-20605-00
BEARING
$169.89¢84 944
1
#18
90387-30012-00
COLLAR
$31.55¢15 775
1
#19
93440-62032-00
CIRCLIP
$12.60¢6 300
1
#20
90387-31003-00
COLLAR
$21.44¢10 719
1
#21
BW8-17221-00-00
GEAR, 2ND WHEEL
$190.11¢95 056
1
#22
90209-28008-00
WASHER
$7.41¢3 706
1
#23
93440-31187-00
CIRCLIP
$7.43¢3 713
1
#24
2CR-17261-00-00
GEAR, 6TH WHEEL (30T)
$200.26¢100 131
1
#25
90387-28004-00
COLLAR
$33.75¢16 875
1
#26
2CR-17241-01-00
GEAR, 4TH WHEEL (30T)
$202.18¢101 088
1
#27
90214-29002-00
WASHER, CLAW
$9.04¢4 519
1
#28
90214-28002-00
WASHER, CLAW
$8.75¢4 375
1
#29
B67-17231-01-00
GEAR, 3RD WHEEL
$217.26¢108 631
1
#30
2CR-17251-00-00
GEAR, 5TH WHEEL (29T)
$200.51¢100 256
1
#31
90387-25008-00
COLLAR
$35.38¢17 688
1
#32
B60-17211-00-00
GEAR, 1ST WHEEL (39T)
$184.49¢92 244
1
#33
93102-40330-00
OIL SEAL
$25.56¢12 781
1
#34
90201-257H0-00
WASHER, PLATE
$9.89¢4 944
1
#35
93306-205A2-00
BEARING
$78.79¢39 394
1
#36
93440-52009-00
CIRCLIP
$11.60¢5 800
1
