SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

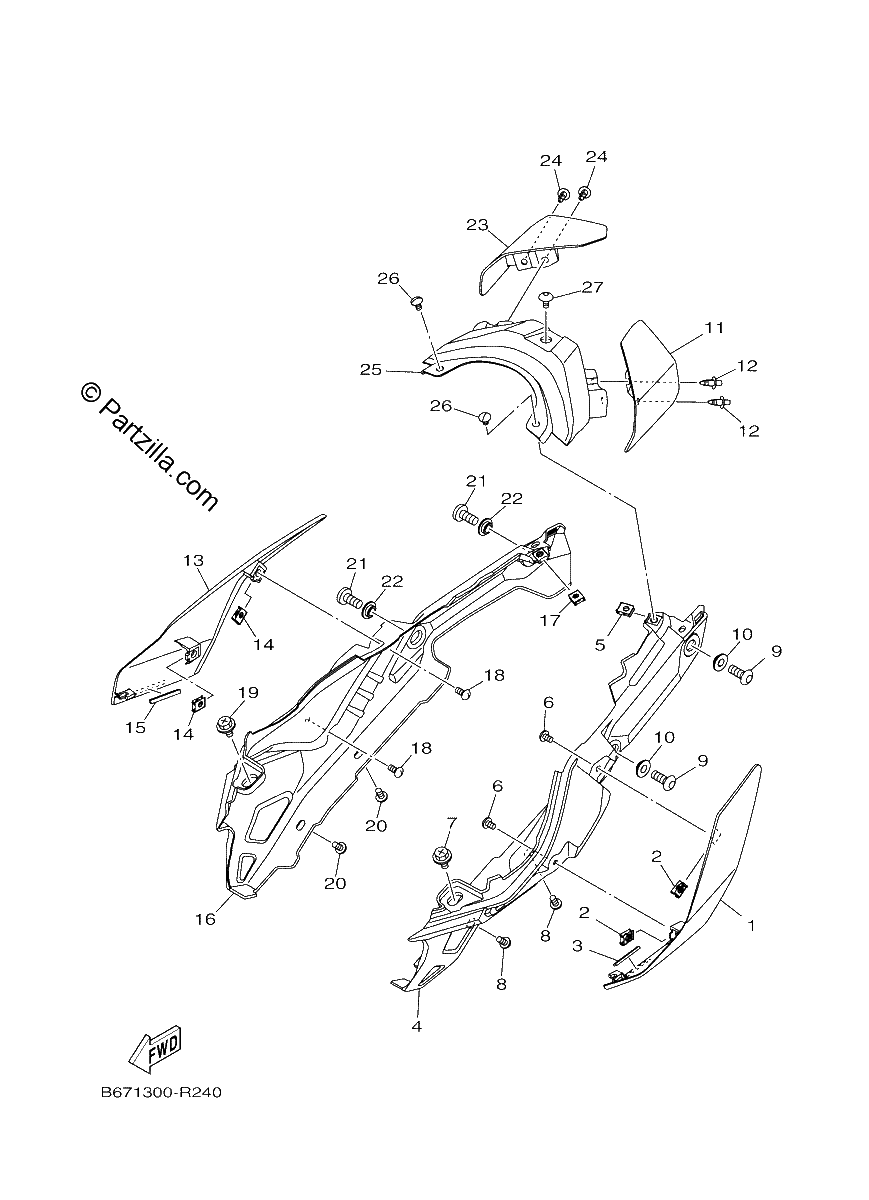

Diagrama de SIDE COVER

Repuestos

#1
B67-21711-00-P0
COVER, SIDE 1
$73.09¢36 547
1
#2
90183-05042-00
NUT, SPRING
$1.15¢575
1
#3
2C0-28247-00-00
DAMPER 4
$2.78¢1 392
1
#4
B67-21731-00-00
COVER, SIDE 3
$18.91¢9 453
1
#5
90183-05042-00
NUT, SPRING
$1.15¢575
1
#6
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#7
90109-06202-00
BOLT
$2.98¢1 489
1
#8
90269-07007-00
RIVET
$3.68¢1 840
1
#9
90111-08010-00
BOLT,HEX. SOCKET BUTTON
$5.65¢2 823
1
#10
90387-08079-00
COLLAR
$8.21¢4 105
1
#11
B67-2471K-00-00
COVER, TAIL 1
$13.59¢6 797
1
#12
90269-06008-00
RIVET
$8.10¢4 048
1
#13
B67-21721-00-P0
COVER, SIDE 2
$73.09¢36 547
1
#14
90183-05042-00
NUT, SPRING
$1.15¢575
1
#15
2C0-28247-00-00
DAMPER 4
$2.78¢1 392
1
#16
B67-21741-00-00
COVER, SIDE 4
$21.65¢10 827
1
#17
90183-05042-00
NUT, SPRING
$1.15¢575
1
#18
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#19
90109-06202-00
BOLT
$2.98¢1 489
1
#20
90269-07007-00
RIVET
$3.68¢1 840
1
#21
90111-08010-00
BOLT,HEX. SOCKET BUTTON
$5.65¢2 823
1
#22
90387-08079-00
COLLAR
$8.21¢4 105
1
#23
B67-2472K-00-00
COVER, TAIL 2
$12.45¢6 227
1
#24
90269-06008-00
RIVET
$8.10¢4 048
1
#25
B67-2171E-00-00
COVER, SIDE 5
$11.12¢5 560
1
#26
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#27
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
