CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

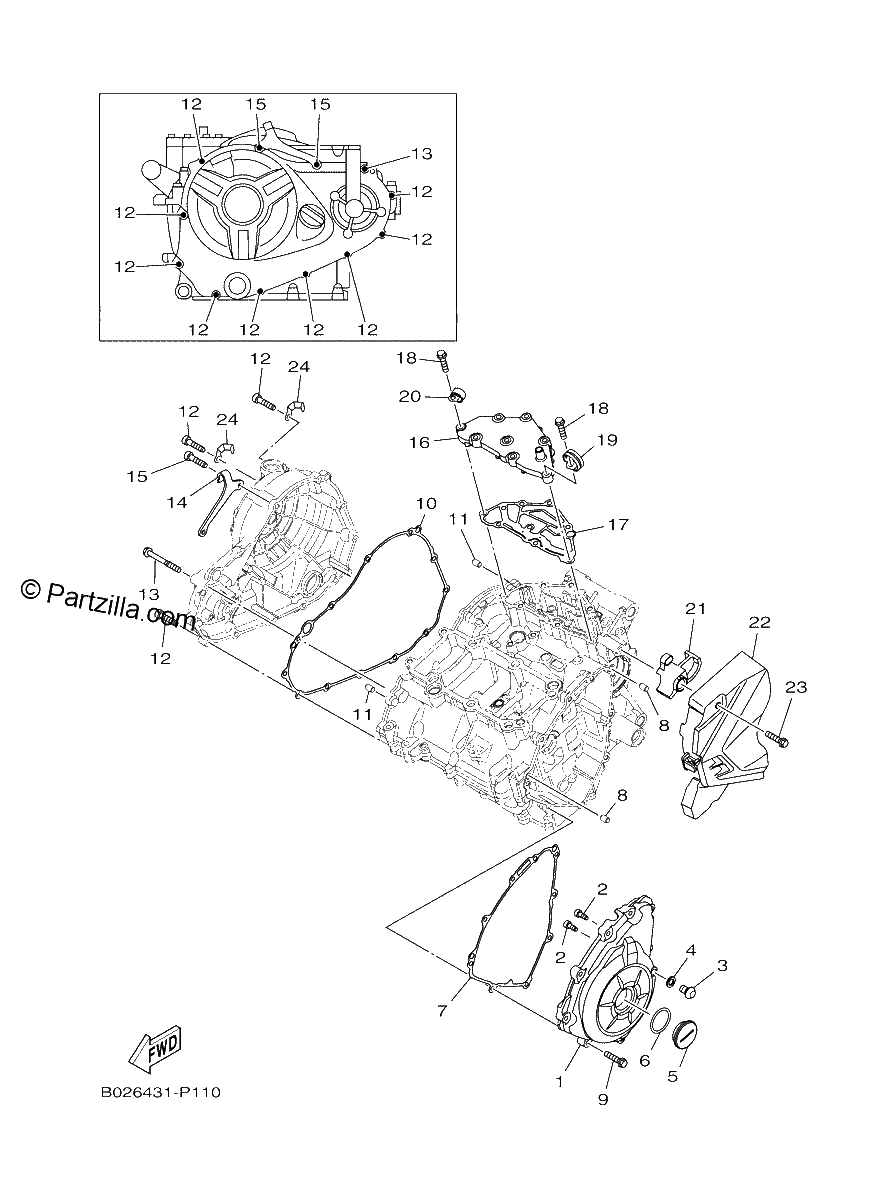

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1WD-E5411-00-00
COVER, CRANKCASE 1
$98.31¢49 157
1
#2
91312-05012-00
BOLT (replaces 90110-05032-00)
$2.78¢1 392
1
#3
92014-08012-00
BOLT, BUTTON HEAD
$7.95¢3 973
1
#4
90430-08143-00
GASKET
$3.38¢1 691
1
#5
90340-32819-00
PLUG, STRAIGHT SCREW
$11.73¢5 865
1
#6
93210-32816-00
O-RING
$2.75¢1 374
1
#7
1WD-E5451-00-00
GASKET, CRANKCASE COVER 1
$5.65¢2 823
1
#8
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#9
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#10
1WD-E5461-00-00
GASKET, CRANKCASE COVER 2
$53.06¢26 531
1
#11
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#12
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#13
95022-06050-00
BOLT, FLANGE
$1.56¢782
1
#14
2MS-E5441-00-00
HOLDER, CLUTCH CABLE
$2.43¢1 213
1
#15
91312-06025-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#16
1WD-E5413-10-00
COVER
No Disponible
1
#17
1WD-E5462-00-00
GASKET, CRANKCASE COVER 3
$4.19¢2 093
1
#18
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#19
90462-08819-00
CLAMP
$1.53¢765
1
#20
90462-08806-00
CLAMP
$8.56¢4 278
1
#21
BS7-E5377-00-00
GUIDE, INLET
$9.91¢4 956
1
#22
1WD-E5418-00-00
COVER, CHAIN CASE
$31.75¢15 876
1
#23
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#24
90462-08225-00
CLAMP
$8.45¢4 226
1
