FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

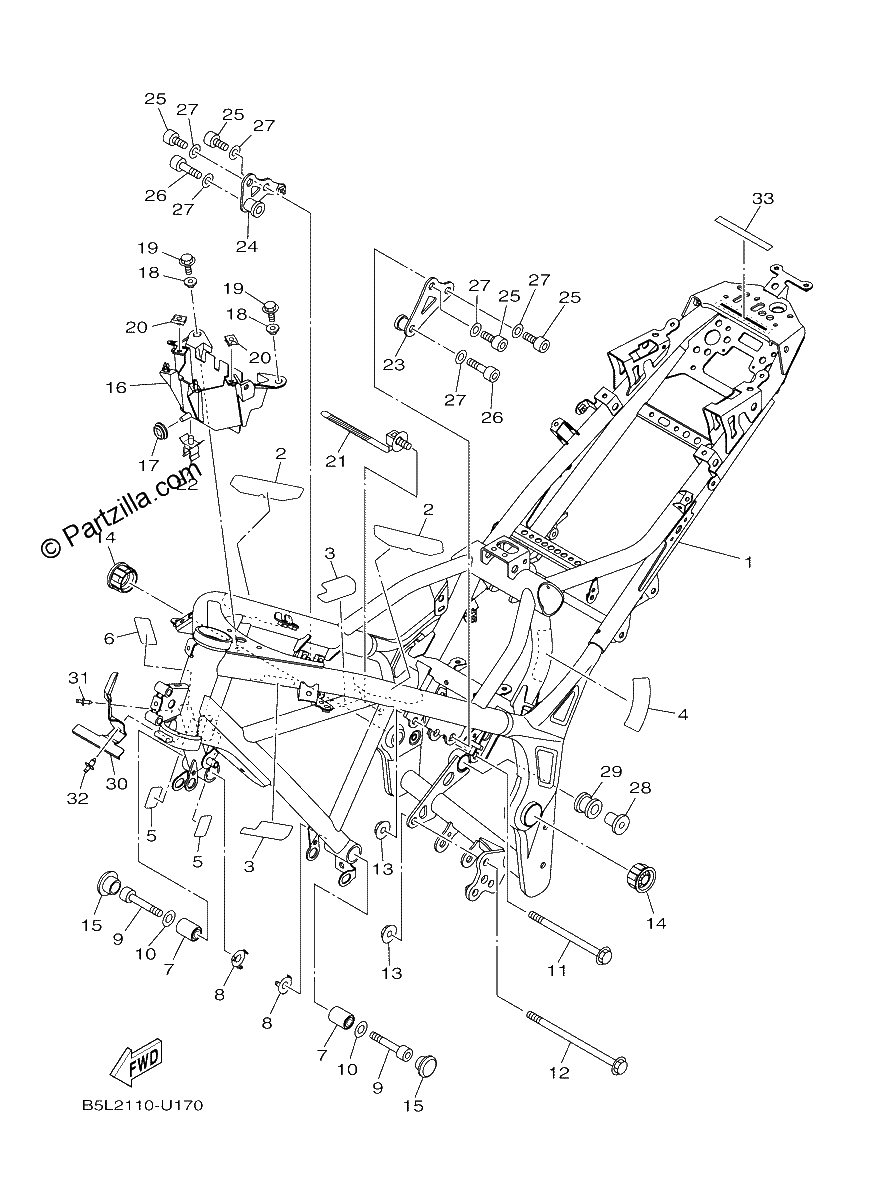

Diagrama de FRAME

Repuestos

#1
1WD-F1110-12-00
FRAME COMP.
$678.53¢339 263
1
#2
1WD-F112C-00-00
DAMPER 2
$4.16¢2 081
1
#3
1WD-F117G-00-00
PROTECTOR
$5.07¢2 537
1
#4
1WD-F1652-00-00
PROTECTOR
$4.40¢2 200
1
#5
1WD-F193A-00-00
PROTECTOR
$2.65¢1 325
1
#6
5D9-F414G-00-00
SEAL
$2.13¢1 063
1
#7
90388-10816-00
DAMPER (replaces 1WD-F2123-00-00)
$27.34¢13 669
1
#8
1WD-F191B-00-00
PLATE 1
$7.91¢3 956
1
#9
91317-10060-00
BOLT
$7.81¢3 906
1
#10
92902-10200-00
WASHER
$3.41¢1 706
1
#11
90105-10889-00
BOLT, FLANGE
$5.76¢2 881
1
#12
90105-10891-00
BOLT, FLANGE
$6.66¢3 331
1
#13
90179-10805-00
NUT
$1.74¢869
1
#14
1WD-F135F-00-00
COVER
$2.95¢1 475
1
#15
90338-23801-00
PLUG
$1.33¢663
1
#16
1WD-F1171-00-00
BOX
$8.10¢4 050
1
#17
90480-13398-00
GROMMET
$8.16¢4 081
1
#18
90387-07819-00
COLLAR
$3.23¢1 613
1
#19
95022-06014-00
BOLT, FLANGE
$3.14¢1 569
1
#20
90183-06818-00
NUT, SPRING
$0.93¢463
1
#21
90464-30009-00
CLAMP
$3.89¢1 944
1
#22
90464-12015-00
CLAMP
$1.23¢613
1
#23
1WD-F122A-00-00
STAY 1
No Disponible
1
#24
1WD-F122B-00-00
STAY 2
$8.96¢4 481
1
#25
91317-10020-00
BOLT
$8.22¢4 113
1
#26
91317-10045-00
BOLT
$6.67¢3 338
1
#27
92907-10600-00
WASHER (6TA)
$7.35¢3 675
1
#28
90387-08813-00
COLLAR
$6.59¢3 294
1
#29
5TP-E4747-00-00
DAMPER, MUFFLER
$15.15¢7 575
1
#30
BS7-F612N-00-00
BRACKET 5
$13.64¢6 819
1
#31
90269-05008-00
RIVET
$3.02¢1 513
1
#32
90269-07007-00
RIVET
$4.00¢2 000
1
#33
2DS-F414E-00-00
SEAL 2
$6.06¢3 031
1
