FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

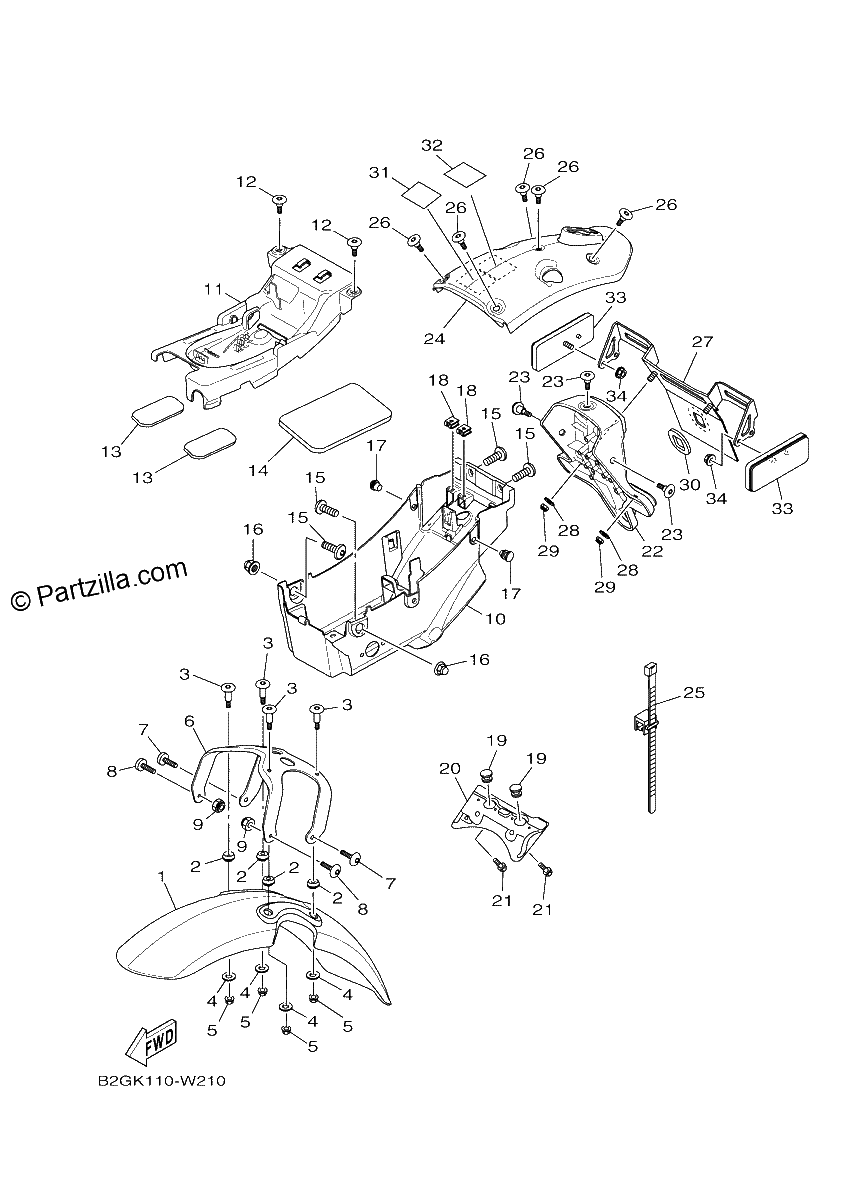

Diagrama de FENDER

Repuestos

#1
B2G-21511-00-P3
FENDER, FRONT
$409.31¢204 656
1
#2
B2G-21544-00-00
Collar 1
$6.14¢3 069
1
#3
90111-06123-00
BOLT,HEX. SOCKET BUTTON
$3.74¢1 869
1
#4
90201-06072-00
WASHER, PLATE
$7.63¢3 813
1
#5
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#6
B34-F1512-20-00
BRACKET, FENDER
$206.54¢103 269
1
#7
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#8
90149-06302-00
SCREW
$5.11¢2 556
1
#9
90185-06M07-00
NUT,SELF-LOCKING
$3.45¢1 725
1
#10
B34-H212B-00-00
BOX, BATTERY 1
$136.31¢68 156
1
#11
B34-H2129-01-00
COVER, BATTERY
$111.48¢55 738
1
#12
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#13
B2G-21649-00-00
Damper
$3.61¢1 806
1
#14
1WS-21639-00-00
DAMPER 2
$6.64¢3 319
1
#15
90109-06323-00
BOLT
$1.95¢975
1
#16
90176-06008-00
NUT, CROWN
$2.73¢1 363
1
#17
90338-06018-00
PLUG
$6.76¢3 381
1
#18
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#19
90480-14100-00
GROMMET
$7.69¢3 844
1
#20
1WS-21642-00-00
GUARD, FLAP
$6.76¢3 381
1
#21
90269-06002-00
RIVET
$7.34¢3 669
1
#22
B34-F1685-00-00
BRACKET, LICENSE
$129.04¢64 519
1
#23
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#24
B2G-21651-00-UJ
COVER, REAR FENDER
$252.31¢126 156
1
#25
90464-45005-00
Clamp
$4.09¢2 044
1
#26
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#27
B2G-84751-00-00
BRACKET, LICENSE
$49.81¢24 906
1
#28
92902-06600-00
WASHER, plate
$3.40¢1 700
1
#29
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#30
B2G-21639-00-00
DAMPER 2
$6.72¢3 363
1
#31
34B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$7.95¢3 975
1
#32
4B5-21686-00-00
PLATE, ROUTING 2 | FOR CAL
$6.65¢3 325
1
#33
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#34
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
