CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

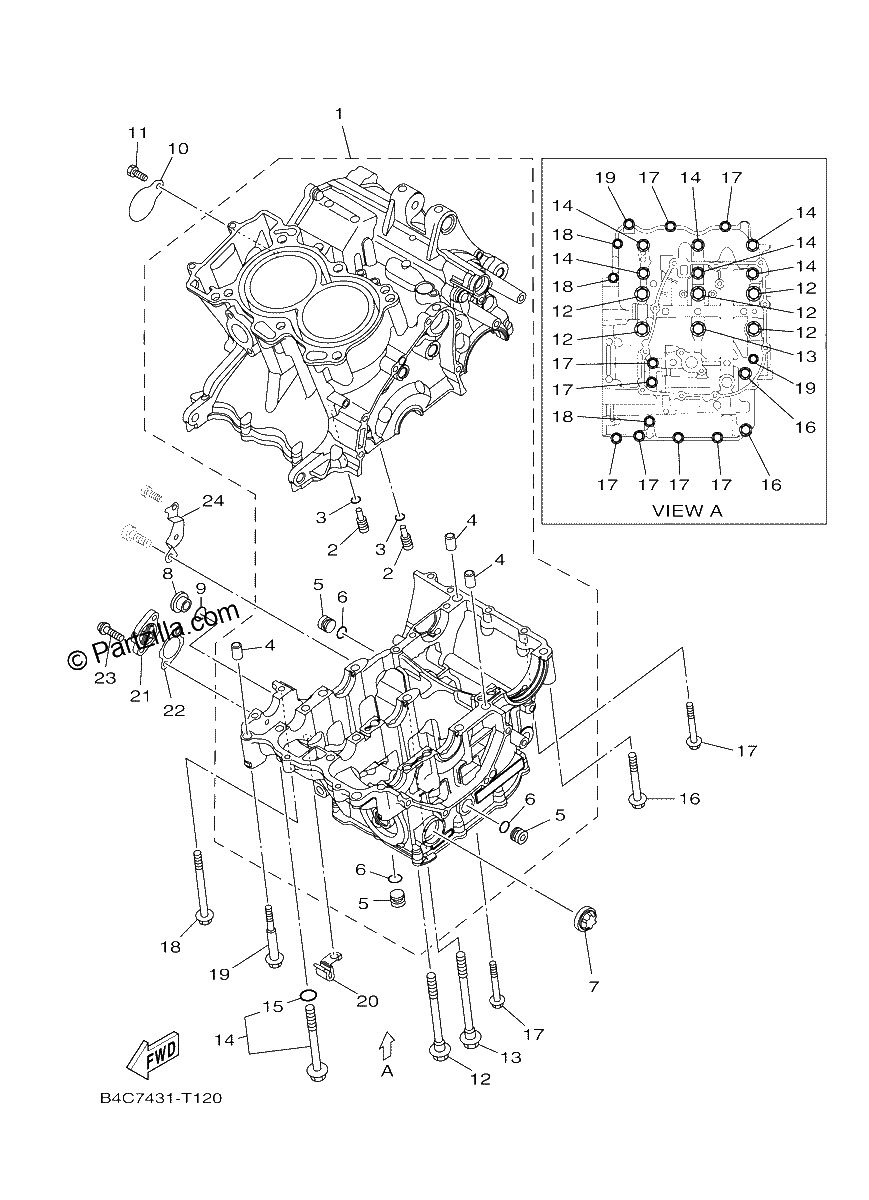

Diagrama de CRANKCASE

Repuestos

#1
1WS-15100-08-00
Crankcase Assy
$3116.27¢1 558 135
1
#2
5EB-15155-00-00
NOZZLE 3
$13.48¢6 739
1
#3
93210-04092-00
O-RING
$3.16¢1 581
1
#4
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#5
90338-16262-00
PLUG
$12.67¢6 336
1
#6
93210-12790-00
O-RING
$6.30¢3 151
1
#7
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
#8
36Y-15189-00-00
PLUG
$13.19¢6 595
1
#9
93210-16325-00
O-RING
$6.43¢3 214
1
#10
1WS-15189-00-00
PLUG
$7.23¢3 617
1
#11
90101-06043-00
BOLT
$6.83¢3 415
1
#12
90119-09014-00
BOLT, WITH WASHER
$11.73¢5 865
1
#13
90119-09018-00
BOLT, WITH WASHER
$28.77¢14 386
1
#14
1WS-15156-00-00
BOLT, CRANKCASE JO
$6.97¢3 484
1
#15
93210-07540-00
O-RING
$6.32¢3 162
1
#16
95812-08065-00
Bolt, Flange
$3.86¢1 932
1
#17
95812-06040-00
BOLT, FLANGE
$4.98¢2 490
1
#18
95812-06060-00
Bolt, Flange
$2.93¢1 466
1
#19
90109-06100-00
BOLT
$8.34¢4 169
1
#20
90462-10064-00
Clamp
$5.82¢2 909
1
#21
1WS-15416-00-00
COVER, OIL PUMP
$23.55¢11 776
1
#22
1WS-15456-01-00
GASKET, OIL PUMP COVER 1
$6.59¢3 295
1
#23
90110-06395-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#24
1WS-15128-00-00
HOLDER
$6.09¢3 048
1
